Appleton GRFL75 GR flanged unilet type L 3/4 in

Product Description

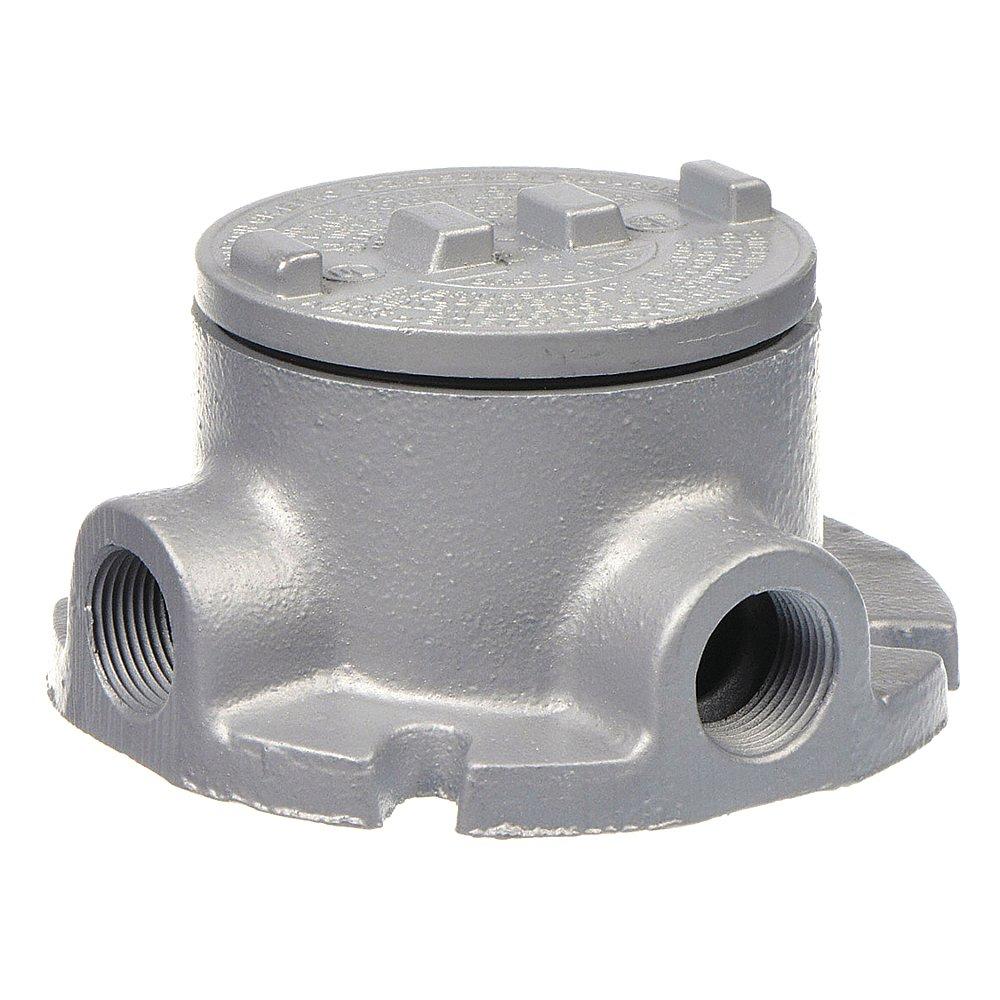

The APPLETON GRFL75 is a UNILETS flanged outlet box with 2 outlets. Constructed from malleable iron, it offers high tensile strength and resistance to corrosion, impact, and shock. The box features accurately tapped, tapered hub threads for tight, rigid joints and ground continuity. It is suitable for indoor and outdoor use.

• Explosionproof and dust-ignitionproof
• Features integral mounting flange and covers
• Internally threaded body with externally threaded cover

Product Highlights

This malleable iron outlet box is designed for use with threaded metal conduit for general purpose wiring.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GRFL75
• Country of Origin: US

Technical Specifications

• Product Series: GRF
• Manufacturer Part Number: GRFL75
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, GRF Series
• Description: UNILETS Flanged Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: 2 3/4 IN GRFL Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN,
• Connection Type: Threaded
• Shape: L
• Number of Hubs: 2
• Conduit Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Composition: Iron
• Cover Composition: Aluminum
• Cover Included: Yes
• Cover Type: Blank
• Gasket Included: Yes
• Protection Rating: Indoor, Outdoor
• Approvals: CSA, UL
• Comments: Explosionproof,Dust-Ignitionproof
• Material: Malleable Iron
• Accessory Type: Conduit Bodies
• Flexibility: Rigid
• Body Capacity: 18 cu. in.
• Body Style: L
• Body Type: Conduit Outlet Body
• Finish: Triple Coat Epoxy Coating
• For Use With: Threaded Imc
• Hazardous Location: Yes
• Hazardous Location Class: Yes
• Hub Size: 3/4"
• Hub Style: Threaded
• Indoor/outdoor Usage: Indoor/Outdoor
• Overall Height: 2 7/8"
• Overall Length: 7"
• Overall Width: 3 3/4"
• Series: GRF Series
• Special Features: Flanged
• Thread Gender: Female
• Thread Size: 3/4"
• Thread Type: NPT
• Trade Size: 3/4"
• Type: Hazardous Location
• standard: CSA C22.2 NO. 25, CSA C22.2 NO. 30, UL 886, UL LISTED FOR CLASS I, DIVISION 1 AND 2, GROUPS B, C, D, CLASS II, DIVISION 1 AND 2, GROUPS E, F, G, AND CLASS III
• Mounting Type: Flanged
• Size: 3/4
• Capacity: 18
• Suitable For Use With: Threaded Metallic Conduit System
• Diameter: 3/4 in
• UNSPSC: 39121303
