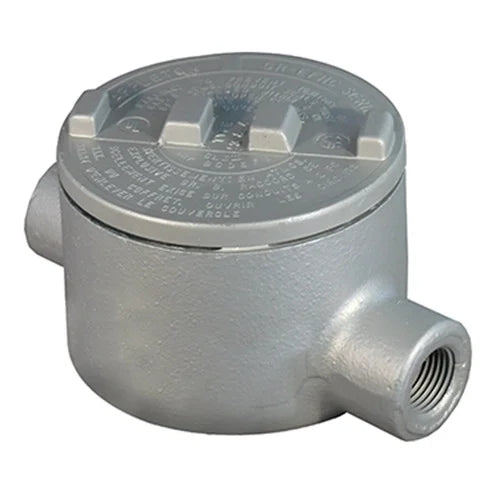

Appleton GRC75 3/4 Inch Gr Type C Unilet

Product Description

The Appleton Group GRC75 is a conduit outlet box designed for use in hazardous locations. This unit features a size of three-fourths inches and accommodates two outlets. Made of malleable iron, the GRC75 has a cubic capacity of eighteen cubic inches. It allows cable entry through two three-fourths inch GRC hubs, providing reliable electrical connections.

• Explosionproof and dust-ignitionproof design
• Provides access for maintenance and pulling of wires
• Standard O-rings for raintight fit

Product Highlights

The Appleton GRC75 facilitates effective electrical installations where safety is a concern, ensuring robustness and compliance with various standards.

Product Information

Standard Information

• Catalog Number: GRC75
• Manufacturer: Appleton Electric

Technical Specifications

• Type: C-Style Dust-Ignitionproof Explosionproof
• Material: Malleable Iron
• Cable Entry: (2) 3/4 IN GRC Hub
• Cubic Capacity: 18 CU-IN
• Knockouts: No
• Cover Opening: 3.38 IN
• Height: 3-3/4 IN
• Width: 3-3/4 IN
• Depth: 2-1 IN
