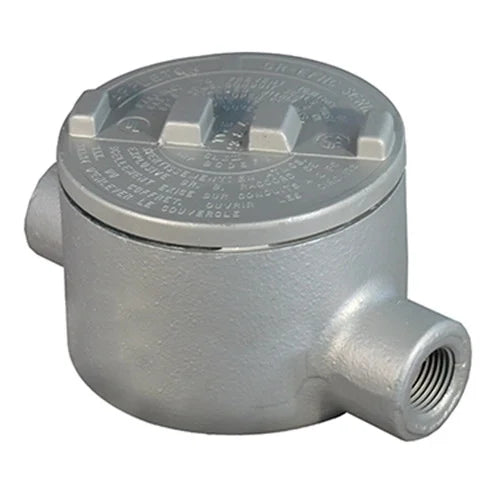

Appleton GRC200 Type C Conduit Body 2 Inch Malleable Iron Zinc Electroplated

Product Description

The Appleton GRC200 is a Type C Conduit Body made from malleable iron and zinc electroplated. It features a two-inch hub size, designed primarily for use with threaded metallic conduit systems. The conduit body ensures a reliable connection and provides access for maintenance. It is suitable for both indoor and outdoor applications.

• Material: Malleable iron
• Cubic Capacity: 76 cubic inches
• Cover Opening Diameter: 4.88 inches

Product Highlights

This conduit body is designed to function as a sealing fitting when used with sealing covers and includes standard O-rings to provide a raintight fit.

Product Information

Standard Information

• Brand: Appleton
• MPN: GRC200

Technical Specifications

• Material: Malleable Iron
• Application: For use with threaded metal conduit
• Cable Entry: (2) 2 Inch GRC Hub
• Cubic Capacity: 76 CU IN
• Knockouts: No
• Height: 5.75 inches
• Width: 5.75 inches
• Depth: 4.25 inches
• Weight: 10.01 pounds
