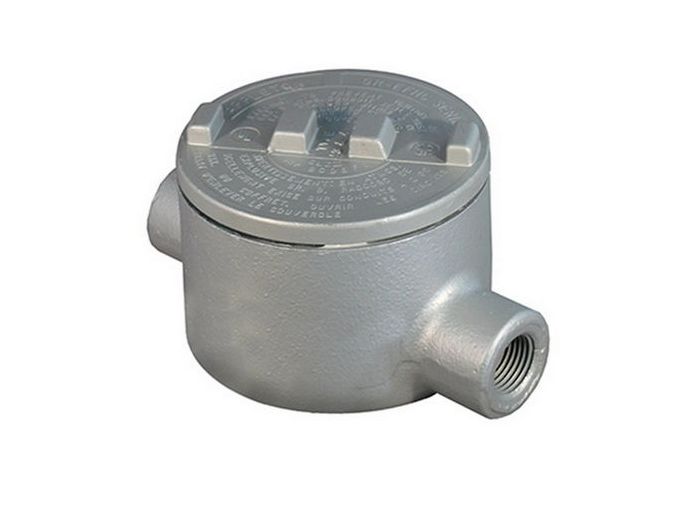

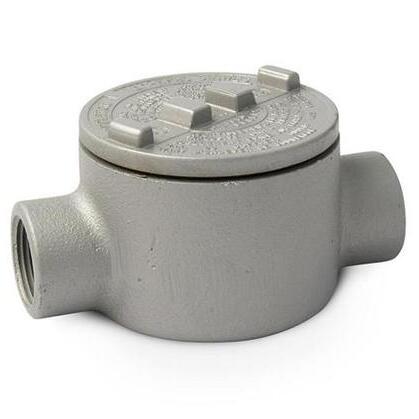

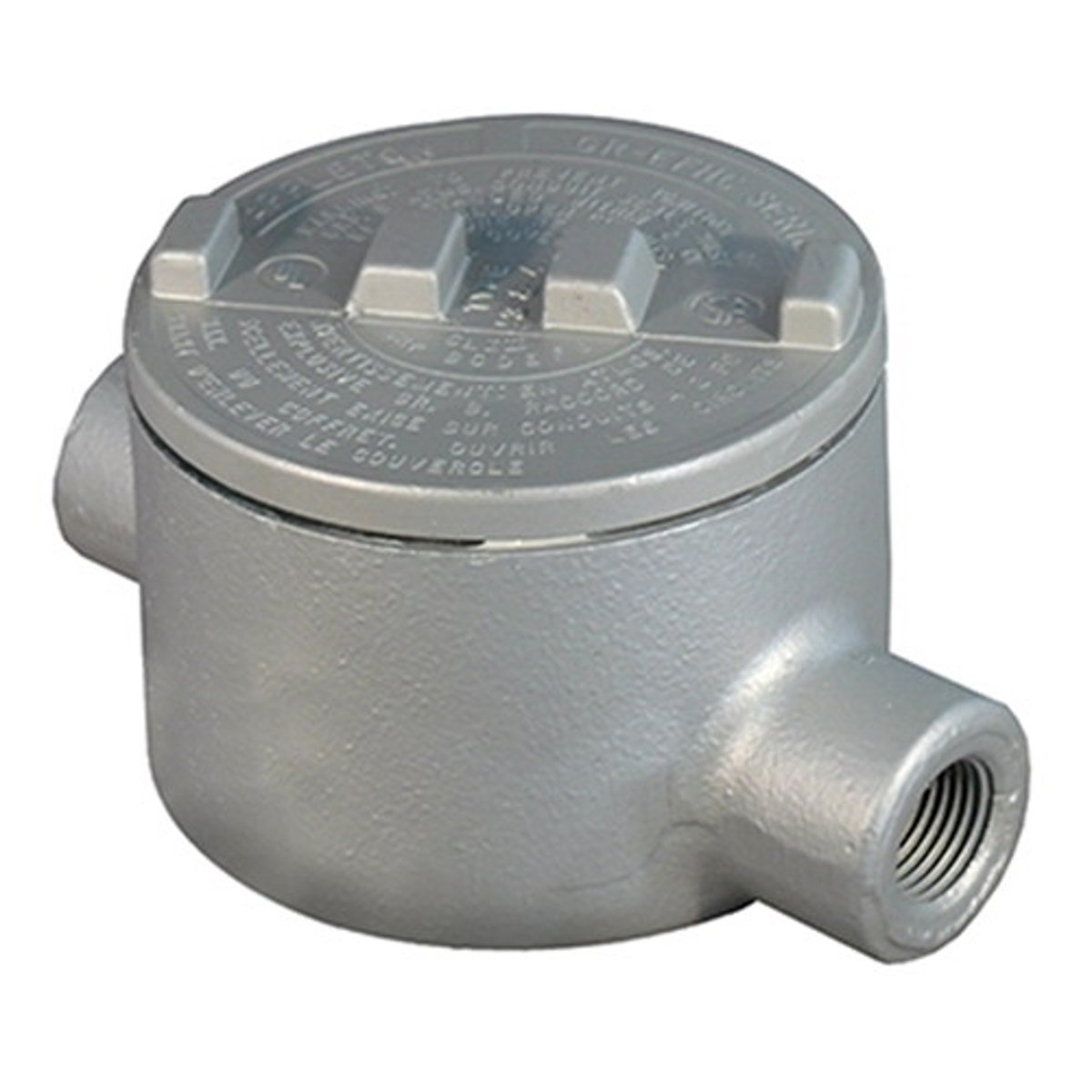

Appleton GRC125 Type C Conduit Body 1-1/4 inch

Brand: APPLETON
SKU: GRC125
Availability: Out Of Stock
$162.73
$162.73
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The APPLETON GRC125 is a Type C conduit body designed for use with threaded metal conduit. Constructed from malleable iron, this 1-1/4 inch conduit body features two 1-1/4 inch GRC hubs and a 31 CU-IN capacity. It is suitable for general purpose wiring, pulling wires, connecting conduit lengths, and changing the direction of conduit runs.

  • Protects conductor insulation
  • Corrosion-resistant
  • Covers have pry notches for bar or wrench

Product Highlights

This conduit body provides access for maintenance and is ideal for indoor and outdoor classified locations. It is explosionproof and dust-ignitionproof.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: GRC125
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
GRC125
Manufacturer
Appleton Electric
Brand
Appleton
Sub Brand
UNILETS
Country of Origin
Mexico
Made in USA
No
Application
For Use With Threaded Metal Conduit
Cable Entry
(2) 1-1/4 IN GRC Hub
Cubic Capacity
31 CU IN
Knockouts
No
Material
Malleable Iron, Aluminum
Special Features
Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard
Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III
UPC
781381437059
GTIN
00781381437059
Item Type
Outlet Box
Size
1-1/4 in
Style
GRC
Hub Size
1-1/4 Inch
Hub Type
External
Number of Hubs
2
Hub Location
Feed Through
Capacity
31 cu-in
Shape
Round
Cover Type
Blank
Cover Opening Diameter
3.94 Inch
Enclosure
Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4
Approval
UL, CSA C22.2
Finish
Triple Coated
Series
GR Series
Suitable For Use With
Threaded Metallic Conduit System
Cover Opening Size
3.94 in
IGCC
4433
Type
C-Style Dust-Ignitionproof Explosionproof
Number of Outlet
2
Family group
FITTINGS
Manufacturer Part Number
GRC125
Product Series
GR
Family Series
Appleton Electrical Boxes, GR Series
Connection Type
Threaded
Conduit Type
IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
Composition
Iron
Cover Composition
Aluminum
Cover Included
Yes
Gasket Included
Yes
Protection Rating
Indoor, Outdoor
Approvals
CSA, UL
Comments
Corrossion, impact & shock resistance
Mounting Type
Wall/Ceiling
