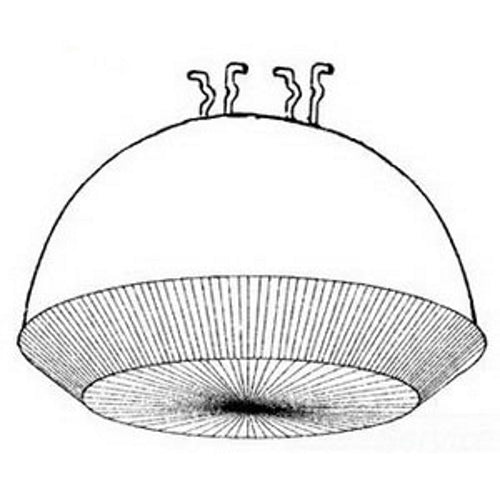

Appleton GL-M20 G-LM20 Lamp Reflector, High Pressure Sodium Lamp, 150 to 250 W

Product Description

The APPLETON GL-M20 G-LM20 lamp reflector is designed for use with Lumenmaster 400™ low bay HID prismatic luminaires and high-pressure sodium lamps ranging from 150 to 250 W. It features a reflector/refractor optical assembly designed for uniform, wide light distribution with low glare, suitable for damp locations.

• Designed for Low Bay High Intensity Discharge Prismatic Luminaires
• Ensures economical operation with high efficiency (up to 74.6%) and long lamp life
• Provides effective illumination of vertical surfaces with a two-to-one vertical-to-horizontal footcandles ratio

Product Highlights

This lamp reflector offers energy-efficient, low-glare illumination for manufacturing, storage, and indoor areas requiring low bay luminaires. Its rugged design and integral ballast ensure long-lasting performance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GL-M20
• Country of Origin: MX

Technical Specifications

• Catalog Number: GLM20
• Application: For Low Bay High Intensity Discharge Prismatic Luminaires
• Lamp Type: High Pressure Sodium
• Lamp Wattage: 150 to 250 W
• Material: Aluminum
• Finish: Natural
• Height: 14.20 in
• Length: 20.40 in
• Width: 20.40 in
• Standard: UL E85142, UL 1598, CSA LR9349
• Standards: ARRA CompliantRoHS CompliantUL File No. E85142UL 1598CSA LR9349
• Sub Brand: Lumenmaster 250
• Suitable For Use With: Lumenmaster 250 Low Bay HID Prismatic Luminaires
• Type: Optic Assembly
• Fixture Type: Low Bay
• Reflector Size: 20"
• Reflector Type: Enclosed Alzak. Aluminum
• Distribution/beam Spread: Wide
• Refractor/lens Type: Gasketed Refractor, Enclosed Injection Molded Prismatic Virgin Acrylic Lens
• Country Of Origin: MX
• ARRA Compliant: C
• Buy American Compliant: N
• EU RoHS Indicator: C
