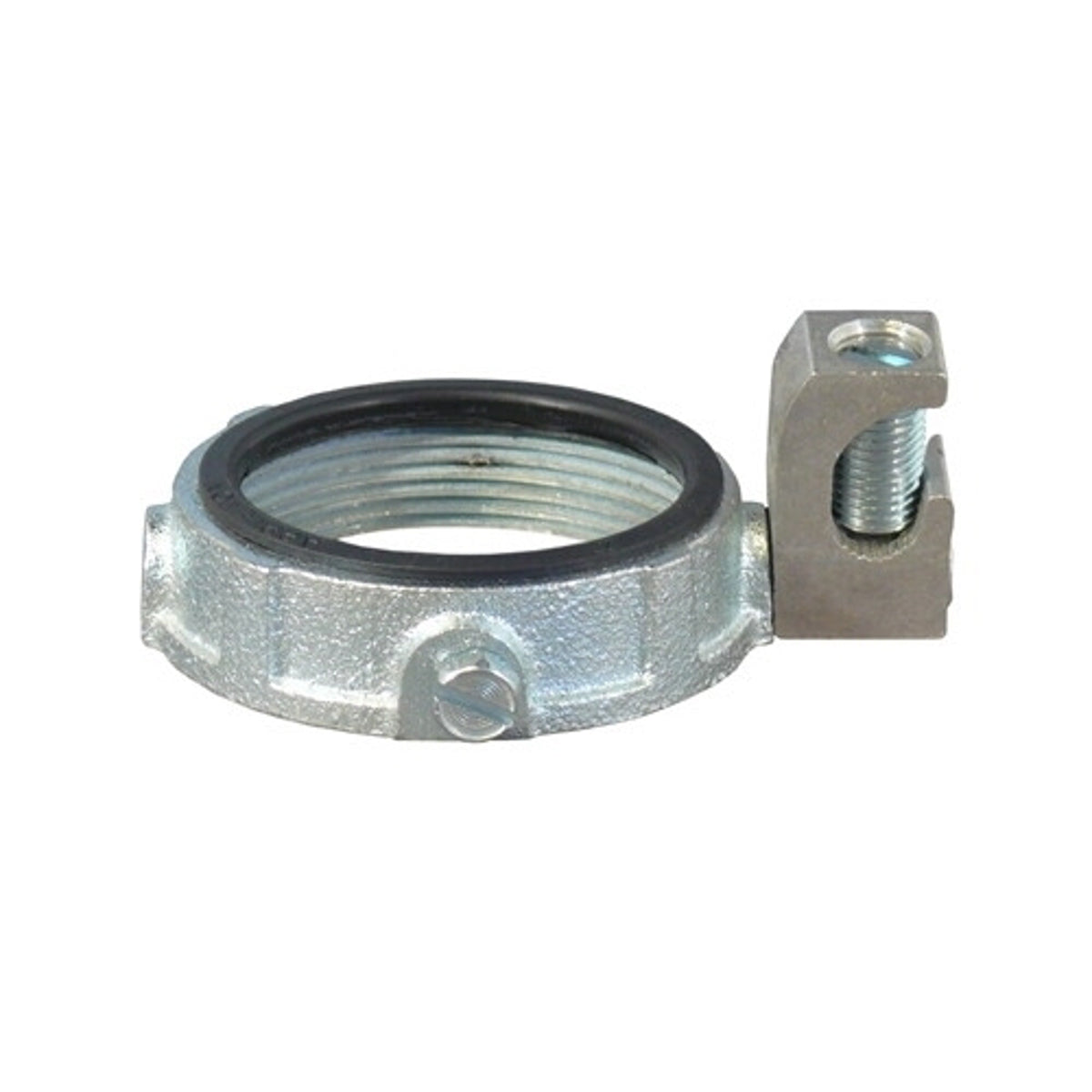

Appleton GIB-50L-4AC Grounding Bushing 1/2 Inch

Product Description

The Appleton GIB-50L-4AC is a grounding bushing designed for use with threaded rigid metal conduit and IMC. This bushing is made of malleable iron and features a zinc electroplated finish for added durability.

• Compatible with various cable sizes, including 14 AWG solid and 4 AWG stranded.
• Temperature rating of one hundred fifty degrees Celsius.
• Easy installation with threaded connection.

Product Highlights

This grounding bushing ensures a reliable connection for grounding tasks within electrical systems. The design allows for proper grounding while protecting the wires from damage.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: GIB-50L-4AC
• Material: Malleable Iron
• Finish: Zinc Electroplated Body, Tin Plated Lug
• Connection Type: Threaded
• Temperature Rating: 150 DEG C
• Dimensions: 0.44 inches Height, 1.41 inches Diameter
• Weight: 0.070 pounds
• Country of Origin: Mexico
• Standards Compliance: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
• Special Features: Provides a compact means of grounding conduit; can be used with a locknut; designed to withstand corrosion and temperature extremes.
