Appleton GIB-400L-4AC 4 IN GNDG BSHG THD

Product Description

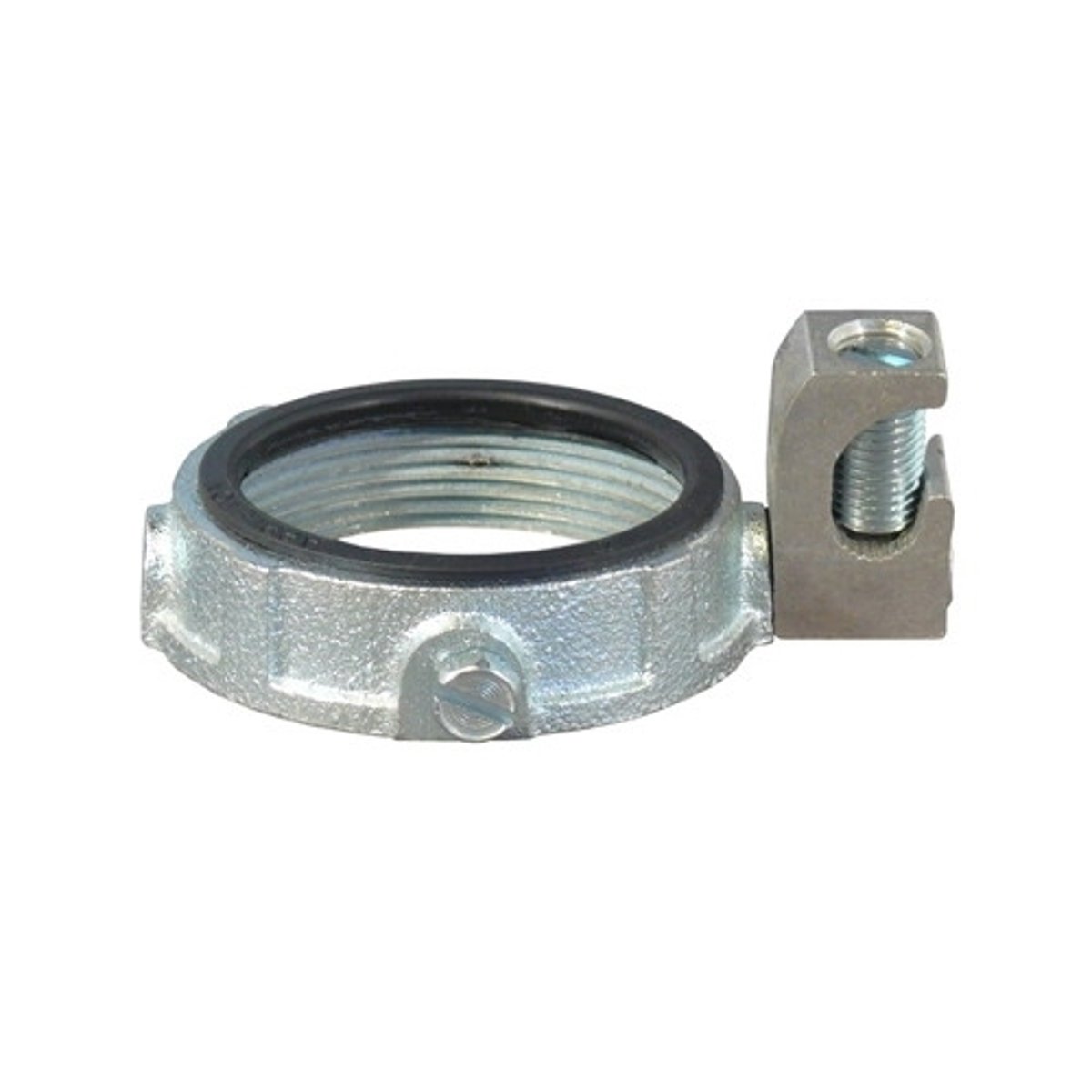

The APPLETON GIB-400L-4AC is an insulated grounding bushing with an aluminum lay-in lug, designed for use with threaded rigid metal conduit and IMC. It provides a compact means of grounding conduit through an insulated bushing and can be used with a locknut to terminate conduit at an enclosure. The lug connects a bonding jumper to a neutral bus bar.

• Provides a compact means of grounding conduit through an insulated bushing
• Can be used with a locknut to terminate conduit at an enclosure
• Lug used to connect bonding jumper to a neutral bus bar

Product Highlights

This grounding bushing features a self-extinguishing insulating liner and is resistant to corrosion, chemicals, and temperature extremes. It is suitable for copper or aluminum conductors.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GIB-400L-4AC
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: GIB-400L-4AC
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Rigid Metal Conduit And IMC
• Connection: Threaded
• Finish: Zinc Electroplated Body, Tin Plated Lug
• Material: Malleable Iron
• Special Features: Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors
• Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
• UPC: 781381091275
• GTIN: 00781381091275
• Item Type: Insulated Grounding Bushing With Aluminum Lay-In-Lug
• Size: 4
• Temperature Rating: 150 DEG C
• Type: Threaded
• Trade Size: 4 Inch
• Wire Size: 14 AWG Solid to 4 AWG Standard
• Lug Type: Lay-In, Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Series: GIB-L-AC
• Insulated/Non-Insulated: Insulated
• Temperature Rating (Degrees F): 302 deg F
