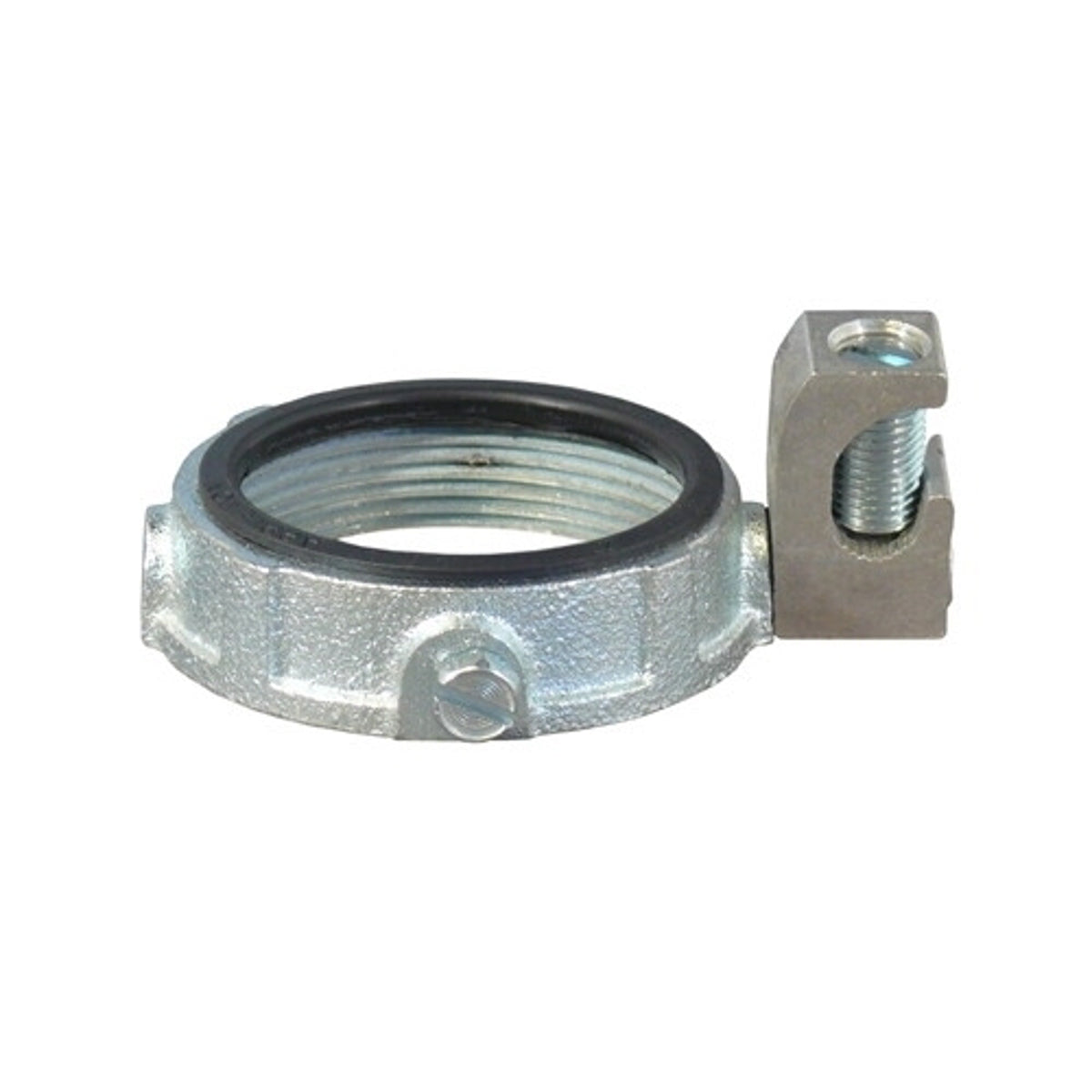

Appleton GIB-300L-4AC Insulated Grounding Bushing 3 Inch 14 - 4 AWG

Product Description

The Appleton GIB-300L-4AC is an insulated grounding bushing designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). It effectively grounds the conduit while providing electrical insulation to protect against potential shorts. This product features an aluminum lay-in lug and is made from durable malleable iron with a zinc electroplated finish.

• Cable size range: 14 AWG solid to 4 AWG stranded
• Temperature rating of 150 degrees Celsius
• Compact design facilitates easy installation in various electrical settings

Product Highlights

The insulated grounding bushing provides a reliable connection, ensuring safety in electrical installations.

Product Information

Standard Information

• Brand: Appleton
• Catalog Number: GIB-300L-4AC

Technical Specifications

• Dimensions: Height of 1.31 inches, Diameter of 4.06 inches
• Weight: 0.510 pounds
• Finish: Zinc electroplated body, tin plated lug
• Material: Malleable iron
• Application: For use with threaded rigid metal conduit and IMC
• Connection: Threaded
• Standard Compliance: UL 467, CSA C22.2 No. 41, NEMA FB-1
• Country of Origin: Mexico
• Temperature Rating: 150 degrees Celsius
