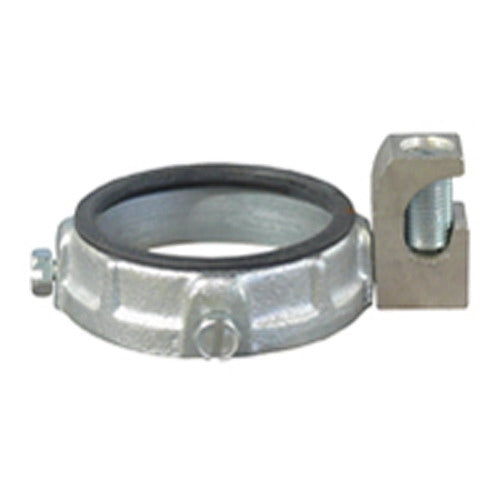

Appleton GIB-200LS-20AC Insulated Grounding Bushing 2 inch 14 - 2/0 AWG Threadless Connection

Product Description

The Appleton GIB-200LS-20AC is an insulated grounding bushing designed for use with threaded rigid metal conduit and IMC. This product is made from malleable iron with a zinc electroplated body and a tin plated lug. The bushing has a temperature rating of one hundred fifty degrees Celsius and supports cable sizes from fourteen AWG solid to two AWG stranded.

• Cable size compatibility: 14 AWG Solid - 2/0 AWG Stranded
• Built with a self-extinguishing plastic liner
• UL and CSA certified standards

Product Highlights

This bushing provides a compact means to ground conduit, making it suitable for various electrical installations.

Product Information

Standard Information

• Catalog Number: GIB-200LS-20AC
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Finish: Zinc Electroplated Body, Tin Plated Lug
• Country of Origin: Mexico
• Height: 0.7 inches
• Width: 5.5 inches
• Length: 5.5 inches
• Weight: 0.33 pounds
• Special Features: Provides compact grounding, can be used with locknut, insulated liner resists corrosion
