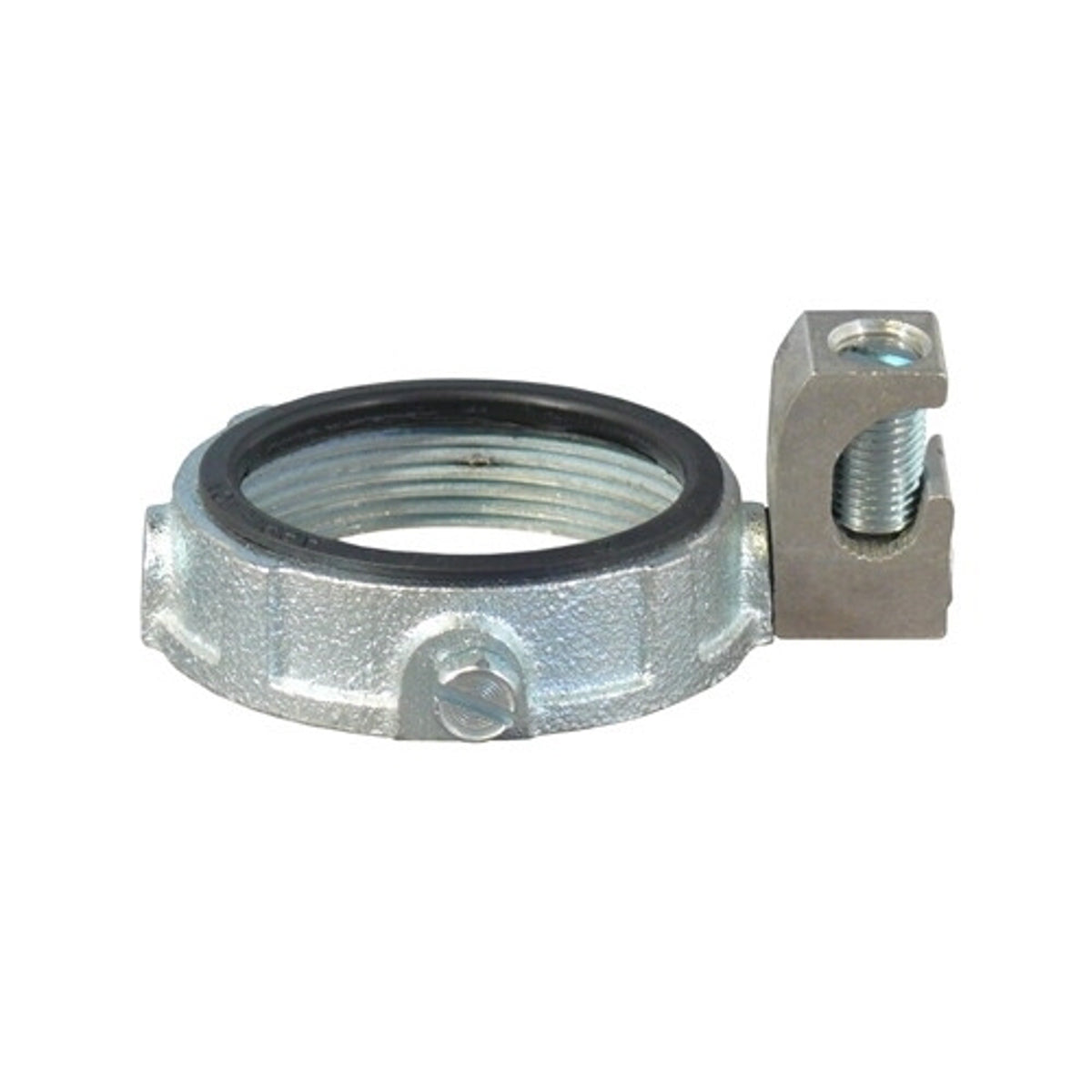

Appleton GIB-200L-20AC Grounding Bushing 2 Inch

Product Description

The Appleton GIB-200L-20AC is an insulated grounding bushing designed for threaded rigid metal conduit and intermediate metal conduit (IMC). This component measures two inches and accommodates fourteen AWG solid to two-aught AWG stranded conductors. The body is made of malleable iron and features a zinc electroplated finish. The aluminum lay-in lug allows for easy connection and a secure fit.

• Temperature rating of one hundred fifty degrees Celsius
• Meets UL, CSA, and NEMA standards
• Compact design for effective grounding solutions

Product Highlights

This grounding bushing allows for effective grounding of conduit through an insulated setup. It is suitable for applications requiring secure wire connections.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: GIB-200L-20AC
• Material: Malleable Iron
• Finish: Zinc Electroplated Body, Tin Plated Lug
• Height: 0.7 inches
• Width: 5.0 inches
• Length: 5.5 inches
• Weight: 0.38 pounds
• Connection: Threaded
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
• Temperature Rating: 150 degrees Celsius
