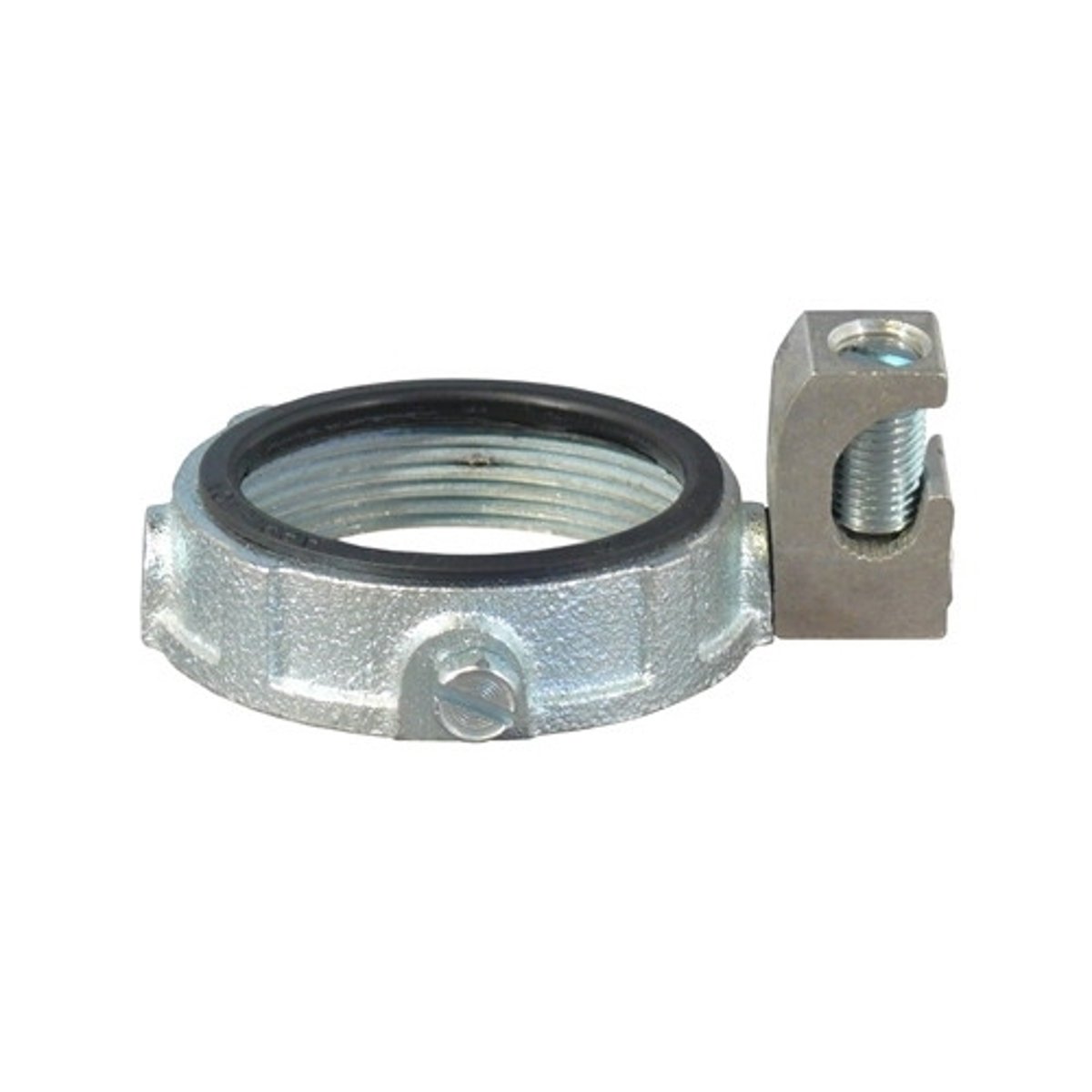

Appleton GIB-125L-4AC Insulated Grounding Bushing With Lay-In-Lug 1-1/4 Inch

Product Description

The APPLETON GIB-125L-4AC insulated grounding bushing with aluminum lay-in-lug is designed for use with threaded rigid metal conduit and IMC. It provides a compact means of grounding conduit through an insulated bushing and can be used with a locknut to terminate conduit at an enclosure. The lug connects a bonding jumper to a neutral bus bar.

• Provides a compact grounding solution for conduits.
• Features a self-extinguishing insulating liner.
• Suitable for copper or aluminum conductors.

Product Highlights

This grounding bushing ensures secure conduit grounding with its durable construction and insulated design, suitable for various industrial applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: GIB-125L-4AC
• Country of Origin: USA

Technical Specifications

• Catalog Number: GIB-125L-4AC
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Rigid Metal Conduit And IMC
• Connection: Threaded
• Finish: Zinc Electroplated Body, Tin Plated Lug
• Material: Malleable Iron
• Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1
• RoHS Indicator: Contact Manufacturer
• UPC: 781381091121
• GTIN: 00781381091121
• Item Type: Insulated Grounding Bushing With Aluminum Lay-In-Lug
• Size: 1-1/4
• Temperature Rating: 150 DEG C
• Trade Size: 1-1/4 Inch
• Wire Size: 14 AWG Solid to 4 AWG Stranded
• Lug Type: Lay-In, Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Insulated
• Used On: Threaded Rigid Metal Conduit/IMC
• Applicable Standard: NEMA FB-1
• Insulation: Insulated
• AC Cable Size: 14 - 4 AWG
• Series: GIB-L-AC
