Appleton GIB-100L-4AC Insulated Grounding Bushing 1 IN

Product Description

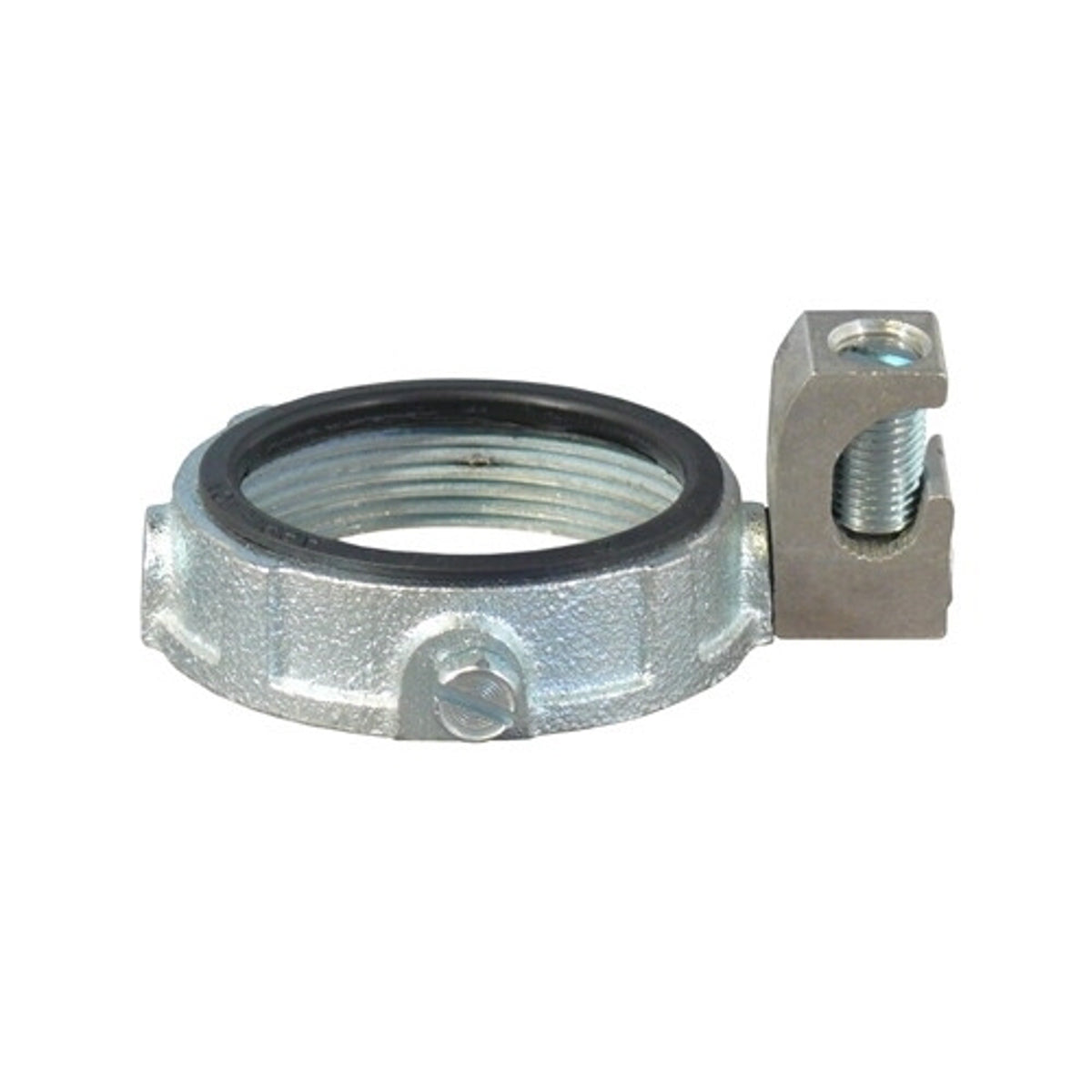

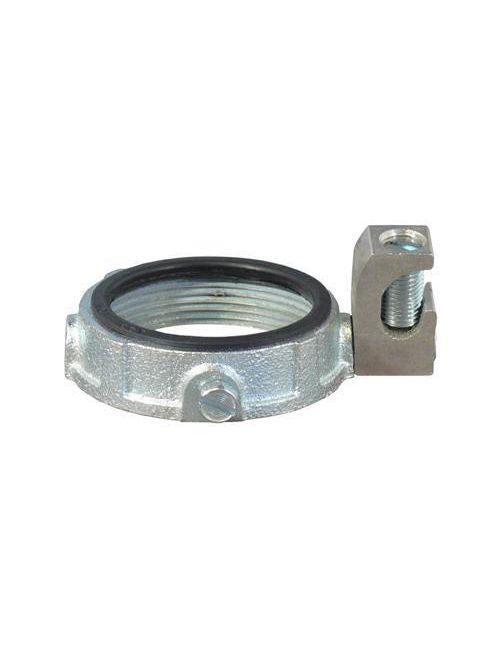

The Appleton GIB-100L-4AC is an insulated grounding bushing designed for threaded rigid metal conduit and intermediate metal conduit (IMC). Made from malleable iron, it features an aluminum lay-in-lug for secure connections.

• Size: 1 Inch
• Temperature Rating: 150 degrees Celsius
• Standards: UL 467, CSA C22.2 No. 41

Product Highlights

This product provides effective grounding while allowing for easy installation. The bushing's compact design ensures space-saving solutions in various applications.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: GIB-100L-4AC
• Material: Malleable Iron
• Finish: Zinc Electroplated, Tin Plated Lug
• Connection Type: Threaded
• Dimensions: Height 0.56 Inches, Diameter 1.75 Inches
• Cable Size Compatible: 14 AWG Solid to 4 AWG Stranded
• Turning Radius: 1.44 Inches
• Weight: 0.130 Pounds
• Country of Origin: Mexico
• Special Features: Offers durable insulation and protection against corrosion and temperature extremes
• Temperature Rating: 150 degrees Celsius
