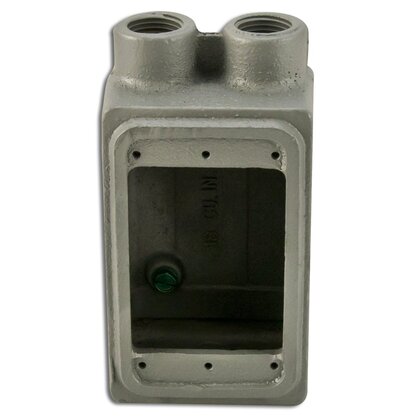

Appleton FSS150 1-Gang Malleable Iron Box 1/2 Inch

Product Description

The Appleton FSS150 is a 1-gang malleable iron device box designed for use with threaded rigid metal conduit and IMC. This FSS shallow depth box features two 1/2 inch hubs and a 25 cubic inch capacity. It is suitable for use with standard wiring devices such as switches and receptacles in rough environments.

• For use with threaded metal conduit and IMC
• Constructed from durable malleable iron
• Features internal ground screw

Product Highlights

The Appleton FSS150 provides a robust solution for conduit connections and wiring device accommodation in demanding environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSS150
• Country of Origin: USA

Technical Specifications

• Size: 1/2 IN
• Type: FSS Shallow Depth 1-Gang Cast Device Box
• Brand: Appleton
• Material: Malleable Iron

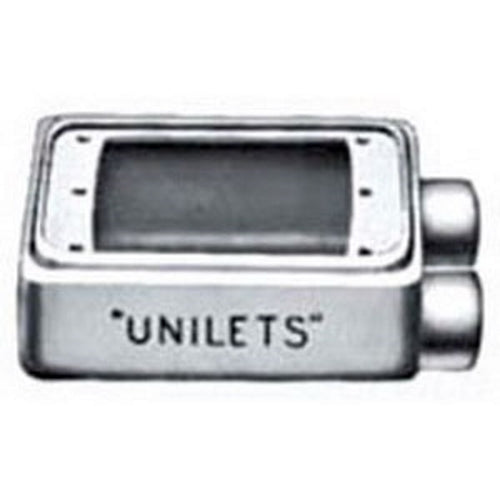

• Sub Brand: UNILETS
• Cable Entry: 0.50 in
• Applications: For Use With Threaded Metal Conduit And IMC
• Construction: Ridge Top
• Number of Gangs: 1
• Hub Diameter: 1/2 in
• Number of Hubs: 2
• ARRA Compliant: Y
• Cable Entry Size: Knockout
• Catalog Number: APPFSS150
• Country of Origin: MX
• Cubic Capacity: 25 CU-IN in³
• Enclosure Type: NEMA FB-1
• Finish: Tri-Coated
• Height: 3.50 in
• Hub Size: 1/2 in
• Hub Style: Tapered Threaded
• Length: 6.90 in
• Number Of Outlet: 2
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514A File No. E2527CSA C22.2 No. 18.1/001472NEMA FB-1
• Width: 5.00 in
• Manufacturer: Appleton
• Capacity: 25 in³
• Number of Knockouts: 2
• Number of Outlets: 2
• Part Number: FSS150
• Mounting Type: Cast Hub Device Box
• Shape: Shallow
• Compatible Devices: Standard Wiring Devices (Switches, Receptacles)
• Model: FSS150
