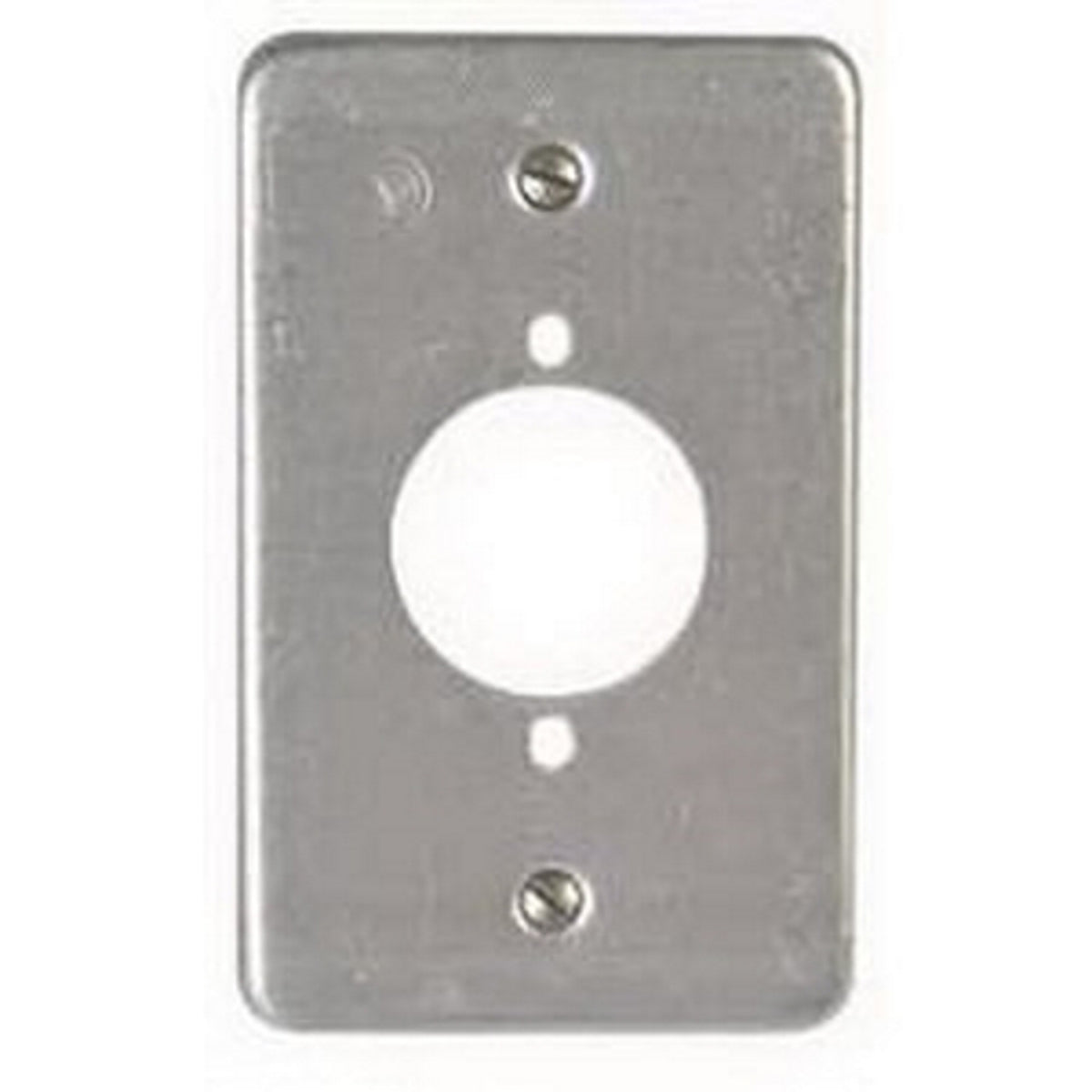

Appleton FSK-1R-W 1-Gang Cast Device Box Cover Steel

Product Description

The APPLETON FSK-1R-W is a 1-Gang cast device box cover made of steel with a zinc electroplate finish. Designed for use with round receptacles, this cover features a 1-13/32 IN hole diameter and box mounting. It accommodates wiring devices and can serve as a pull box for conductors.

• Captive stainless steel screws speed installation and prevent loss of screws
• Cover tightens on largest perimeter of gasket and fits snugly against portion of gasket that wraps around ridge top of box
• Less gasket

Product Highlights

This steel 1-gang box cover is designed for round receptacles and features captive stainless steel screws for easy installation.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSK-1R-W
• Country of Origin: United States

Technical Specifications

• Catalog Number: FSK-1R-W
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: United States
• Made in USA: Yes
• Application: For Use With Round Receptacles
• Material: Steel
• Mounting: Box, Screw
• Special Features: Covers have captive stainless steel screws to speed installation, prevents loss of screws; Cover tightens on largest perimeter of gasket and fits snugly against portion of gasket that wraps around ridge top of box; Less gasket
• UPC: 781381347808
• GTIN: 00781381347808
• Item Type: 1-Gang Box Cover
• Length: 8.0000 Inch
• Width: 5.0000 Inch
• Height: 0.1720 Inch
• Size: 1-13/32 IN Hole Diameter
• Type: Flat
• Device Type: (1) 1-13/32 Inch Dia Receptacle
• Number of Gangs: 1
• Finish: Zinc Electroplated
• Mounting Position: Vertical
• Approval: UL 514A
• Number of Outlets: 1
• Series: FSK
• Mounting Type: Surface
• Includes: Stainless Steel Screws
• Standards: Buy American Act Compliant|CSA C22.2 No. 18.1/001472|NEMA FB-1|UL 514|UL File No. E2527
