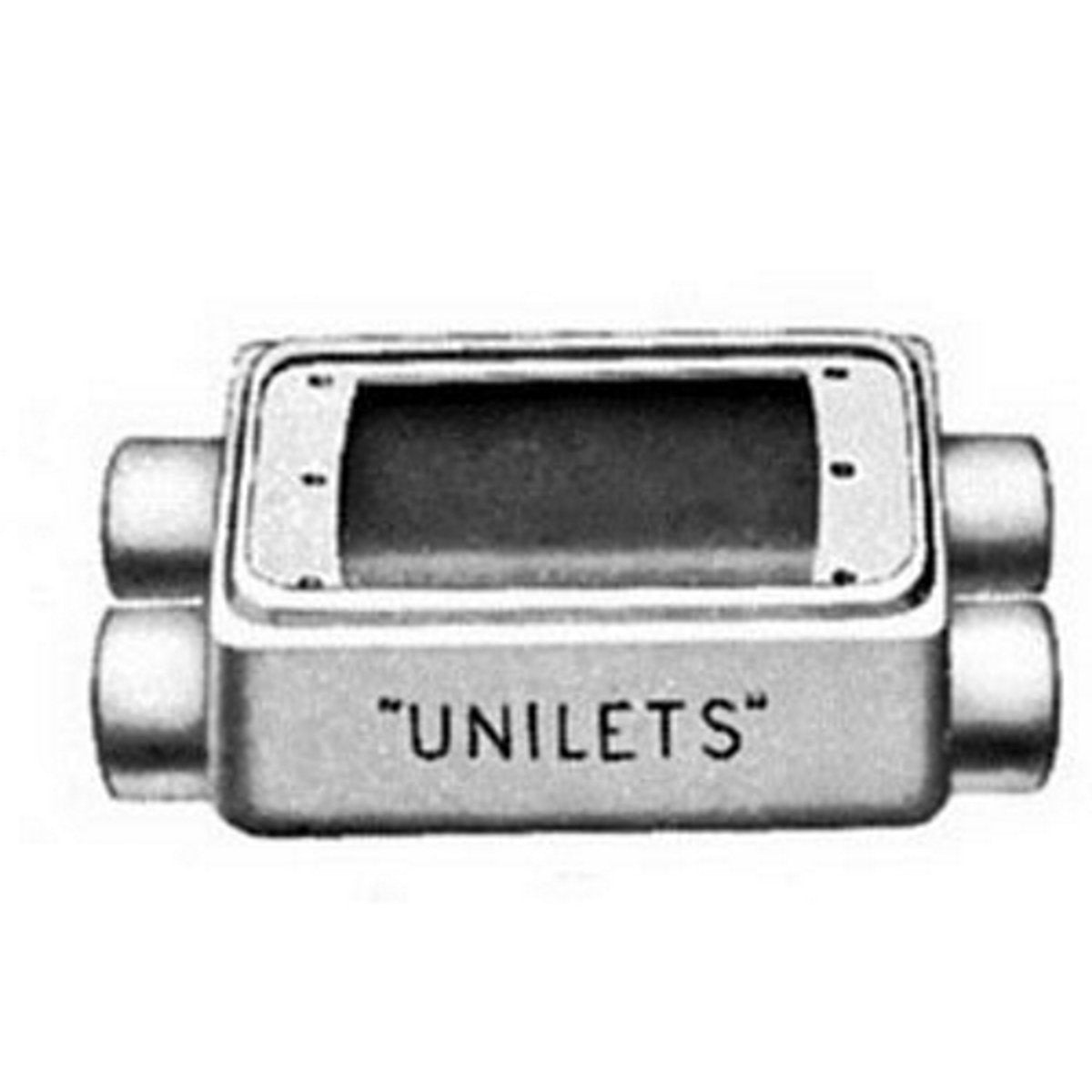

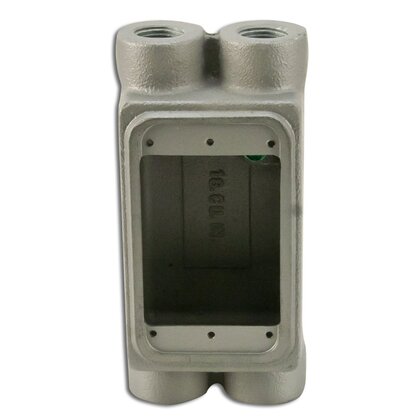

Appleton FSCD-1-50 FS Device Box, 1-Gang, Feed-Thru, Type: FSCD, 1/2 inches, Malleable Iron

Product Description

The APPLETON FSCD-1-50 FS Device Box is a 1-gang, feed-thru, type FSCD box made from malleable iron. Designed for use with threaded metal conduit and IMC, it features (4) 1/2 IN hubs. This device box provides access to conductors for maintenance and accommodates wiring devices. It is corrosion-resistant for indoor and outdoor installations.

• Constructed from malleable iron for high tensile strength and ductility.
• Features accurately tapped, tapered threads for tight, rigid joints and ground continuity.
• UL and CSA certified, NEMA FB-1 compliant.

Product Highlights

This 1-gang device box is ideal for connecting and changing the direction of conduit runs, allowing connections for branch runs, and serving as a pulling fitting.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSCD-1-50
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: FSCD-1-50
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For use with threaded rigid/IMC conduit
• Cable Entry: (4) 1/2 IN Hub
• Cubic Capacity: 25 CU IN
• Knockouts: No
• Material: Malleable Iron
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• UPC: 781381345750
• GTIN: 00781381345750
• Item Type: FSCD Shallow Depth 1-Gang Cast Device Box
• Length: 6.5000 Inch
• Width: 4.7000 Inch
• Height: 4.56 in H
• Size: 1/2
• Product Series: FS
• Family Series: Appleton Electrical Boxes, FS Series
• Description: UNILETS FSCD Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 4, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: 4 1/2 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Finish: Triple-Coat Zinc
• Style: FSCD
• Number of Gangs: 1
• Hub Size: 1/2 "
• Number of Hubs: 4
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Grounding: Yes
• Composition: Malleable Iron
• Protection Rating: Indoor, Outdoor (w/ Optional Gasketed Cover)
• Hazardous Location: No
• Approvals: CSA, UL
• Hub Diameter: 1/2 in
• Finish: Tri-Coated
• UNSPSC: 39121315
• Enclosure Type: NEMA FB-1
• Number of Outlets: 4.0000
• Type: Type FSCD Heavy Duty Shallow
• Capacity: 25
• Includes: Internal Ground Screw and Mounting Lug
