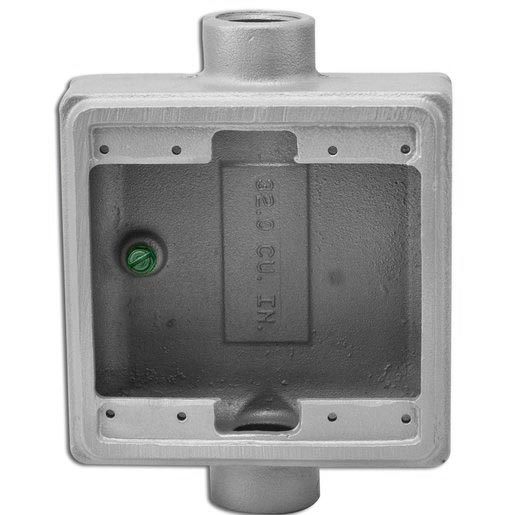

Appleton FSC275 Unilets Type FSC Heavy Duty Shallow Device Box With Internal Ground Screw 32 cu-in Capacity 2 Gangs 2 Outlets 2 Knockouts

Product Description

The APPLETON FSC275 Unilets Type FSC heavy-duty shallow device box is made of malleable iron with a 32 cu-in capacity. This device box features an internal ground screw and is designed for use with threaded rigid/IMC conduit. It has 2 gangs, 2 outlets, and 2 knockouts, offering a robust solution for electrical connections.

• Corrosion-resistant, ideal for indoor and outdoor installations.
• Weatherproof, raintight, and dust tight when used with cast gasketed covers.
• Malleable iron provides greater resistance to impact and shock.

Product Highlights

This heavy-duty device box accommodates wiring devices, serves as a pull box, and permits access to conductors for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSC275
• Country of Origin: MX

Technical Specifications

• Application: For use with threaded rigid/IMC conduit
• Cable Entry Size: Knockout
• Capacity: 32 cu-in
• Country of Origin: MX
• Enclosure Type: NEMA FB-1
• Finish: Tri-Coated
• Hub Size: 3/4 in
• Hub Style: Tapered Threaded
• Includes: Internal Ground Screw and Mounting Lug
• Material: Malleable Iron
• Mfg Standards/Approvals: UL 514A E2527|CSA C22.2 No. 18.1, 001472
• Number of Gangs: 2
• Number of Knockouts: 2
• Number of Outlets: 2
• Type: Type FSC Heavy Duty Shallow
• Number of Hubs: 2
• Series: FSC
• Shape: Shallow
• Standard & Approvals: UL 514A, E2527, CSA C22.2 No 18.1, 001472, NEMA FB-1, RoHS Compliant
• Cable Entry: Hub
• Configuration: 2-Gang
• Conduit Size: 3/4 inch threaded hubs
• Certifications: UL 514A, CSA C22.2 No 18.1, NEMA FB-1, RoHS Compliant
• Mounting Type: Threaded rigid/IMC conduit
• Weatherproof: Yes, with gasketed covers
