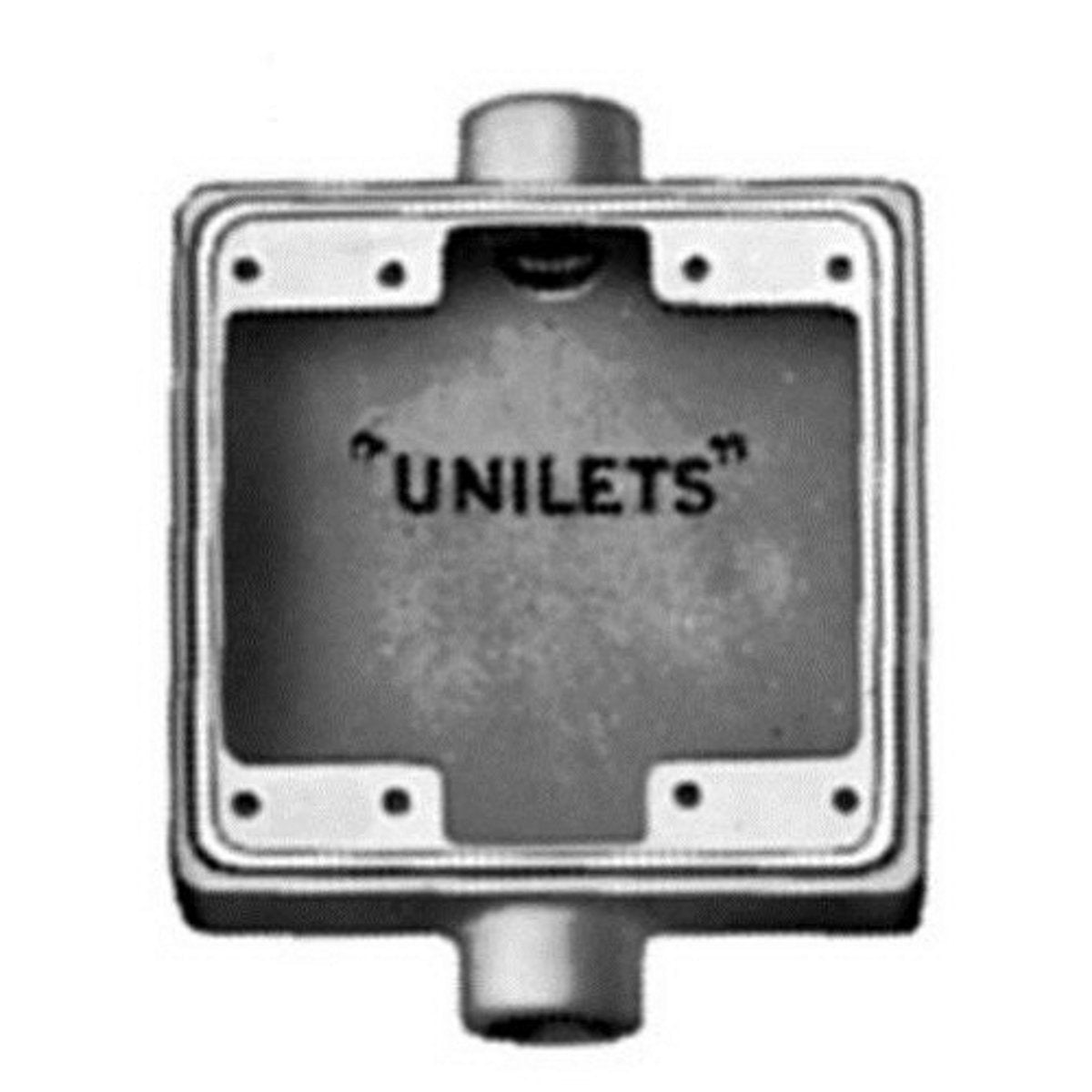

Appleton FSC250 2-Gang FS Cast Device Box, 1/2 inch, 2-Hub

Product Description

The APPLETON FSC250 is a UNILETS FSC shallow depth 2-gang cast device box. Constructed from malleable iron, this device box features two 1/2 IN hubs for cable entry and a 32 CU-IN capacity. It is suitable for use with threaded metal conduit and IMC.

• Corrosion-resistant for indoor and outdoor installations.
• Covers have captive stainless steel screws to speed installation and prevent loss of screws.
• Malleable iron construction provides high tensile strength and ductility.

Product Highlights

This 2-gang cast device box is ideal for industrial and commercial electrical installations, offering durability and corrosion resistance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSC250
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: FSC250
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: (2) 1/2 IN Hub
• Cubic Capacity: 32 CU IN
• Material: Malleable Iron
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• RoHS Indicator: Contact Manufacturer
• UPC: 781381344258
• GTIN: 00781381344258
• Item Type: FSC Shallow Depth 2-Gang Cast Device Box
• Hub Size: 1/2 in
• Hub Style: Tapered Threaded
• Number of Gangs: 2
• Series: FSC
• Shape: Shallow
• Type: Heavy Duty
• Capacity: 32 cu-in
• Enclosure Type: NEMA FB-1
• Finish: Triple Coat
• Model: FSC250
