Product Description

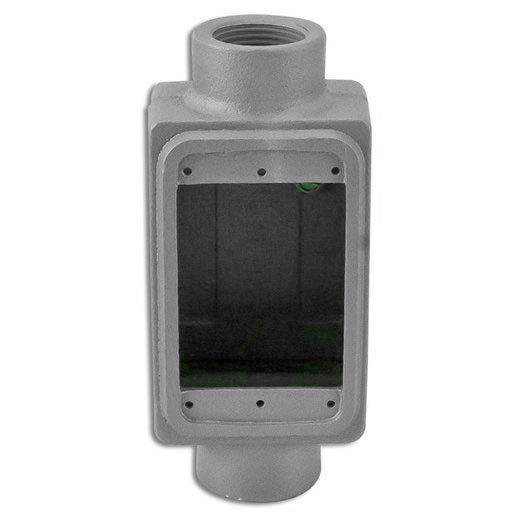

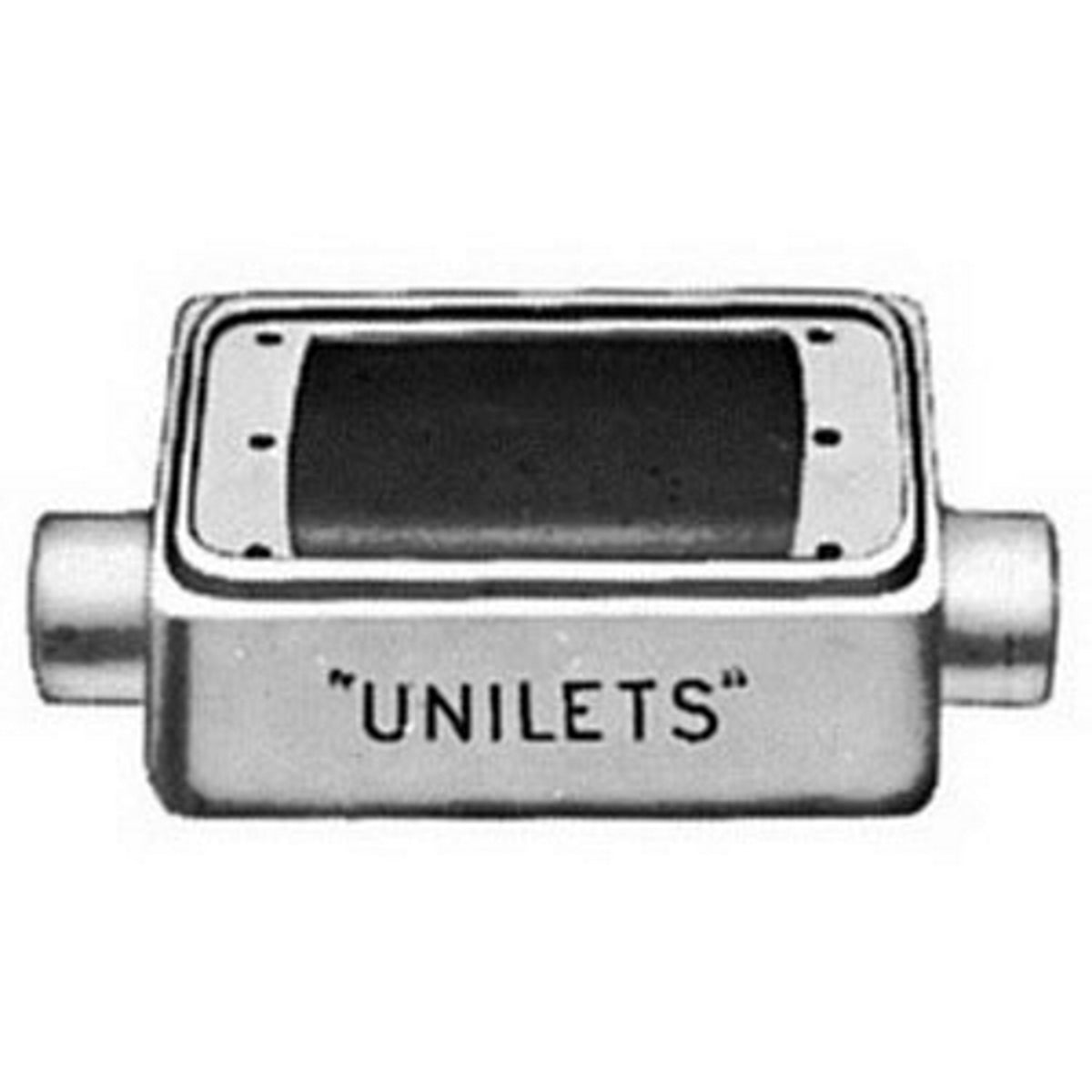

The Appleton FSC175 is a shallow depth one-gang cast device box designed for threaded metal conduit and IMC. This product has a cubic capacity of twenty-five cubic inches and is constructed from malleable iron. It supports two outlets with two three-quarter inch cable entries. The box does not have knockouts, which makes it suitable for specific installations where tight spaces are a concern.
- Material: Malleable iron for durability
- Cable entry: Two three-quarter inch hubs
- Application: Ideal for use with threaded metal conduit and IMC
Product Highlights
This device box offers weatherproof, raintight, and dust-tight features, designed for both indoor and outdoor installations.
Product Information
Standard Information
-
Catalog Number: FSC175
-
Manufacturer: Appleton Electric
Technical Specifications
-
Material: Malleable iron
-
Cubic Capacity: 25 cu in
-
Height: 4.56 inches
-
Width: 2.81 inches
-
Depth: 2 inches
-
Knockouts: No
-
Special Features: Corrosion-resistant, supports wiring devices like switches and receptacles
-
Country of Origin: Mexico
-
UPC: 781381343701
-
Weight: 1.84 pounds
-
Compliance: UL 514 A, CSA C22.2 No. 18.1
