Appleton FSC-1D-75 Fsc1d75 Cast Dev Box Sgl Gang 3/4 In

Product Description

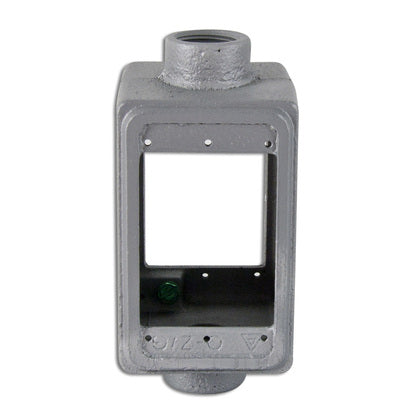

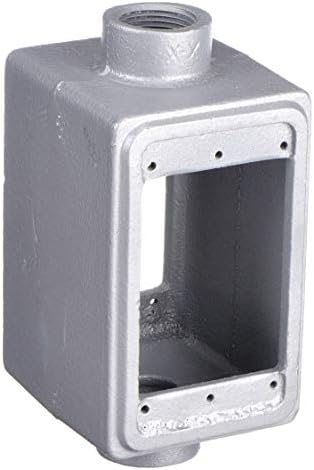

The APPLETON FSC-1D-75 cast device box is a single-gang box with a 3/4 inch hub. Constructed from durable iron, this compact box meets CSA and UL specifications. It is designed to accommodate wiring devices such as switches and receptacles, providing reliable service in demanding environments.

• Constructed from durable iron
• Compact design for versatile installation
• Accommodates wiring devices such as switches and receptacles

Product Highlights

Ideal for use in areas subject to rough usage, this device box ensures secure and reliable electrical connections.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FSC-1D-75

Technical Specifications

• Brand: Appleton
• Material: Malleable Iron
• Style: Compact
• Specification Met: Csa, Ul
• Gangs: 1
• Hub Diameter: 3/4 in
• Number of Hubs: 2
• Finish: Tri-Coated
• Application: For use with threaded rigid/IMC conduit
• Enclosure Type: NEMA FB-1
• Number of Outlets: 2.0000
• Number of Knockouts: 2.0000
• Type: Type FSC Double Opening Heavy Duty Shallow
• Capacity: 25
• Includes: Internal Ground Screw and Mounting Lug
• Product Series: FS
• Manufacturer Part Number: FSC-1D-75
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, FS Series
• Description: UNILETS FSC Shallow Depth 1-Gang Cast Device Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: 2 3/4 IN Hub, Cubic Capacity: 25 CU-IN, Knockouts: No, Height: 4.56 IN, Width: 2.81 IN, Depth: 2 IN, Finish: Triple-Coat Zinc
• Number of Gangs: 1
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Grounding: Yes
• Composition: Malleable Iron
• Protection Rating: Indoor, Outdoor (w/ Optional Gasketed Cover)
• Hazardous Location: No
• Approvals: CSA, UL
