Appleton FS150A Unilets Type FS Heavy Duty Shallow Device Box 1/2 in

Product Description

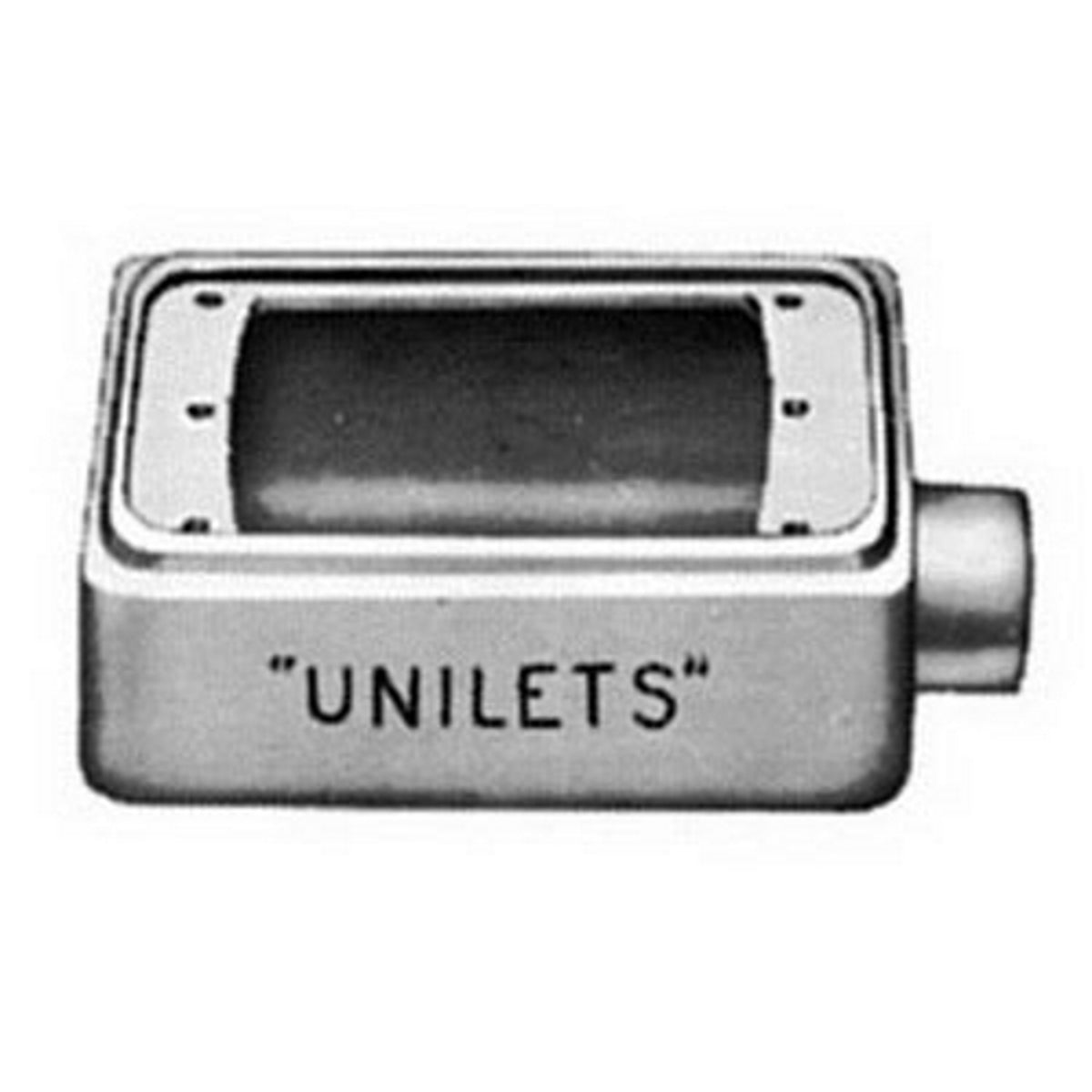

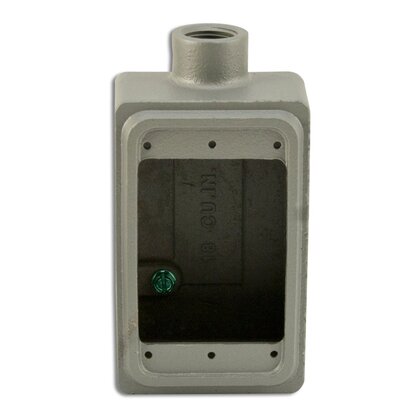

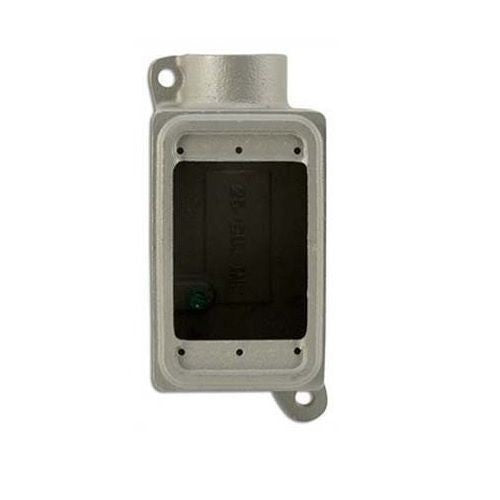

The APPLETON FS150A UNILETS Type FS heavy-duty shallow device box is made of aluminum with an epoxy powder coating. This 1-gang box has 1 outlets and 1 knockouts with a 1/2 in hub. It has a capacity of 25 cu-in and measures 4.56 in H x 2.81 in W x 2 in D.

• Corrosion-resistant for indoor and outdoor use
• Weatherproof, raintight, and dust-tight when used with cast gasketed covers
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity

Product Highlights

This aluminum device box accommodates wiring devices such as switches and receptacles, serves as a pull box, and allows connections for branch conduit runs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FS150A
• Country of Origin: Mexico

Technical Specifications

• Finish: Epoxy Powder Coated
• Capacity: 25 cu-in
• Hub Size: 1/2 in
• Material: Aluminum
• Hub Style: Tapered Threaded
• Enclosure Type: NEMA FB-1
• Number of Gangs: 1
• Cable Entry Size: Knockout
• Number of Outlets: 1
• Number of Knockouts: 1
• Sub Brand: UNILETS
• Application: For Use With Threaded Metal Conduit And IMC
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• Item Type: FS Shallow Depth 1-Gang Cast Device Box
• Shape: Shallow
• Configuration Type: FS
• Mounting Hardware: Not Included
• Number of Hubs: 1
• Hub Location: End
• Box Depth: 2.00"
• Series: FS
• Type: Heavy Duty
