Appleton FS150 BOX DVC 1 1 1 1/2IN 1/2IN TAPERED THD KO

Product Description

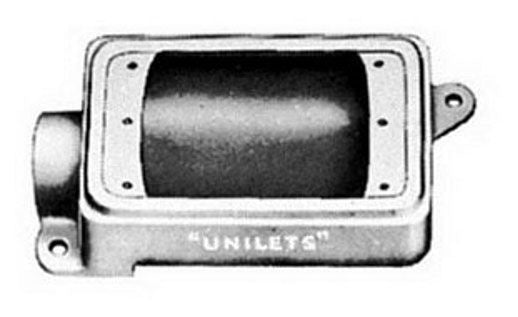

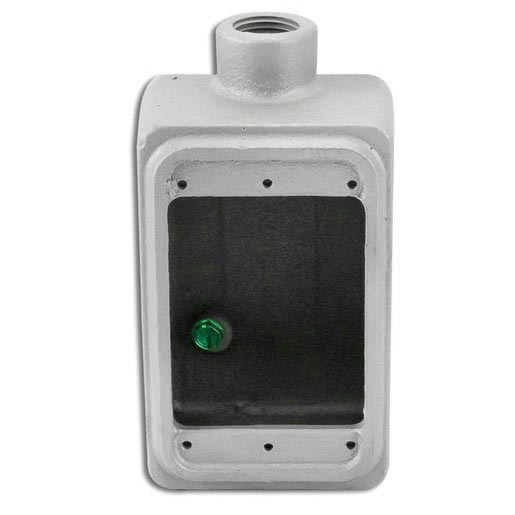

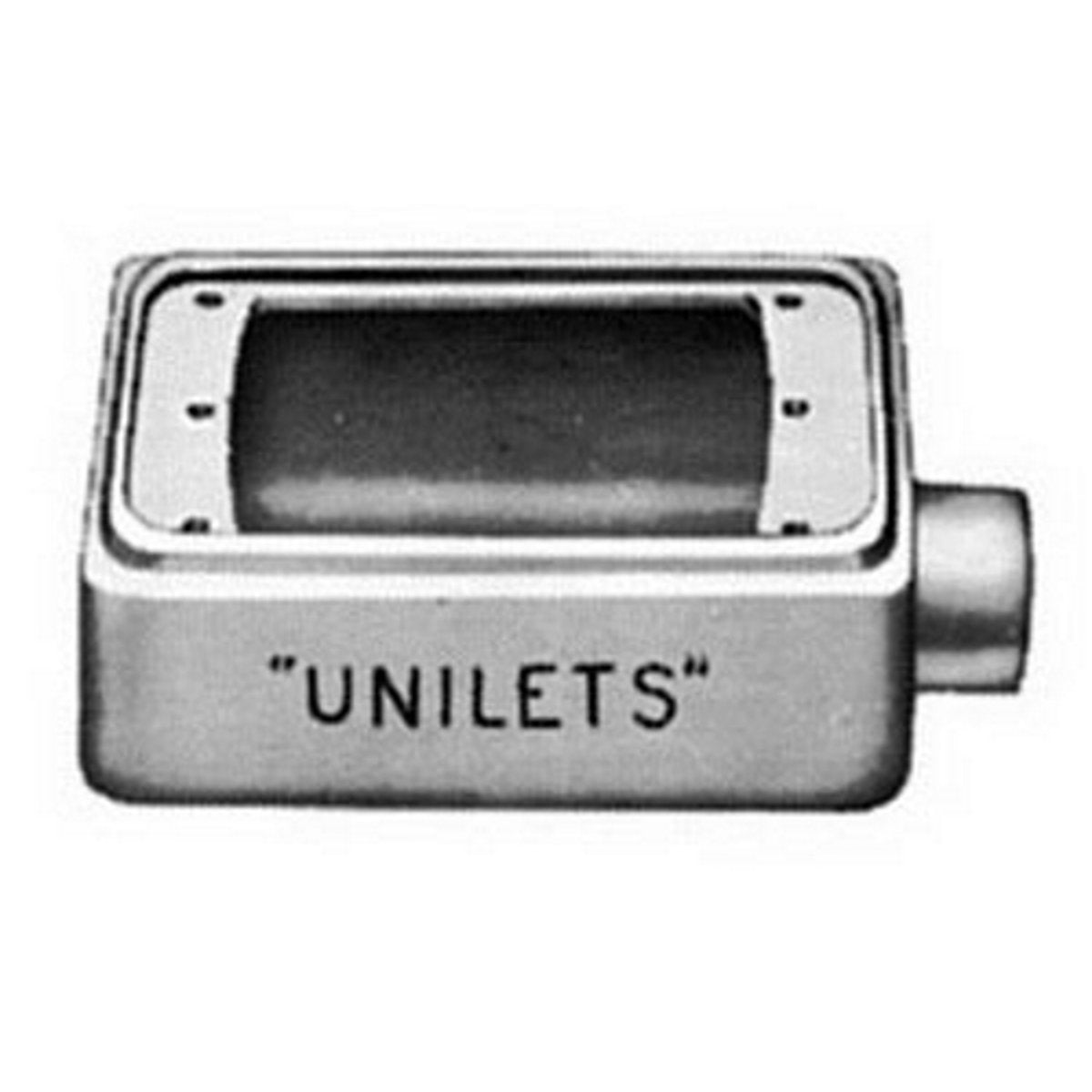

Appleton FS150 is designed as a one-gang shallow device box made from malleable iron. The product features a cubic capacity of twenty-five cubic inches and is suitable for both indoor and outdoor installations. The enclosure includes one knockout and is compatible with threaded rigid and IMC conduits. This device box is ideal for safely housing electrical connections.

• Constructed from malleable iron for high strength
• Designed with a tri-coated finish for durability
• Weatherproof, raintight, and dust-tight with appropriate covers

Product Highlights

This device box comes with standard internal grounding screws and easily accommodates wiring devices like switches and receptacles.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Brand: Appleton

Technical Specifications

• Catalog Number: FS150
• Capacity: 25 cu-in
• Hub Size: 1/2 in
• Number of Gangs: 1
• Number of Outlets: 1
• Number of Knockouts: 1
• Dimension: 4.56 in H x 2.81 in W x 2 in D
• Material: Malleable Iron
• Enclosure Type: NEMA FB-1
• Finish: Tri-Coated
