Appleton FS-1-75L FS Type Cast Box; 3/4 In Hub, 1-Gang

Product Description

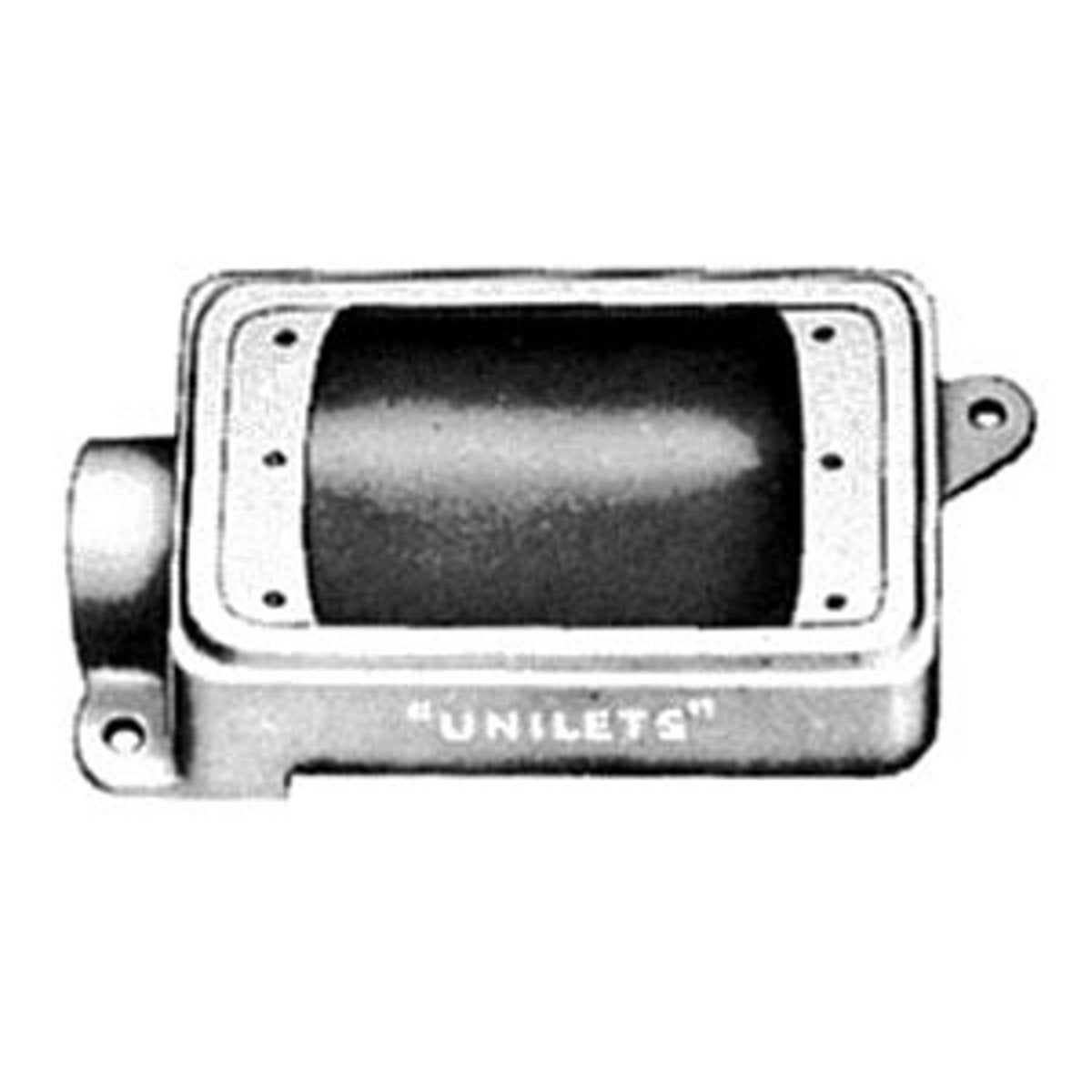

The Appleton FS-1-75L is a shallow depth, one-gang cast device box. It is made from malleable iron and features a three-quarter inch hub for cable entry. This product is ideal for use with threaded metal conduits and IMC. The cast box is designed to provide secure mounting and is suitable for both indoor and outdoor installations.

• Construction: Malleable iron
• Cubic capacity: 25 cubic inches
• Number of hubs: 1

Product Highlights

This device box is designed for heavy-duty applications. Its corrosion-resistant material ensures durability in various environments. It can accommodate electrical wiring devices efficiently and serves as a pull box for conductors.

Product Information

Standard Information

• Construction: Malleable iron
• Mounting Type: (2) 5/16 diameter lugs

Technical Specifications

• Catalog Number: FS-1-75L
• Manufacturer: Appleton Electric
• Application: For use with threaded rigid/IMC conduit
• Cable Entry: (1) 3/4 inch hub
• Cubic Capacity: 25 cubic inches
• Dimensions: 6.5 inches (length) x 4.7 inches (width) x 3.1 inches (height)
• Weight: 1.93 pounds
• Standards: UL 514 A, CSA C22.2 No. 18.1
