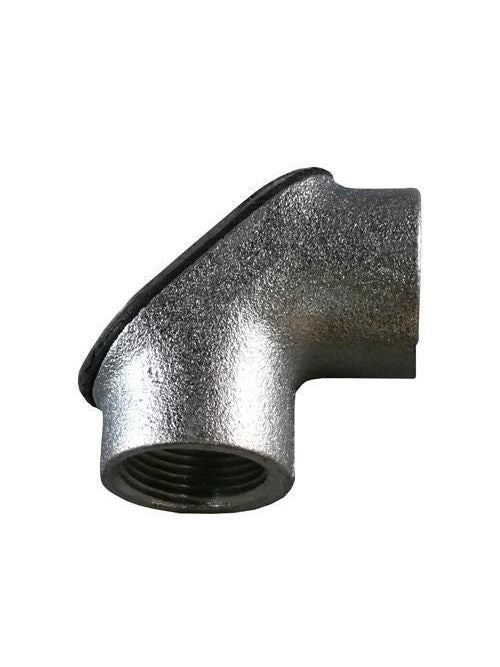

Appleton FFL-150 1-1/2 90deg Female Gasketed Pulling Elbow

Product Description

The Appleton FFL-150 1-1/2 Female Gasketed Pulling Elbow is designed for use in electrical applications where a change of direction is needed in a conduit run. It is made from malleable iron and features a triple-coat finish including zinc electroplate, chromate, and epoxy powder coat for durability.

• Trade size: 1-1/2 inches
• Connection type: Female threaded
• Standards met: UL 514B, CSA C22.2 No. 18.3

Product Highlights

This 90-degree elbow allows for a watertight fit and is suitable for rigid and intermediate metal conduit (IMC). The elbow provides a compact wire pulling point, enhancing installation efficiency.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: FFL-150
• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Trade Size: 1-1/2 Inch
• Height: 2.56 Inches
• Connection: Female Threaded
• Application: For use with threaded rigid metal conduit and IMC
• Flexibility: Rigid and IMC
• Special Features: Provides a 90-degree change of direction; watertight configuration; compact wire pulling point
