Appleton FDS-1-100 FD Device Box 1-Gang

Product Description

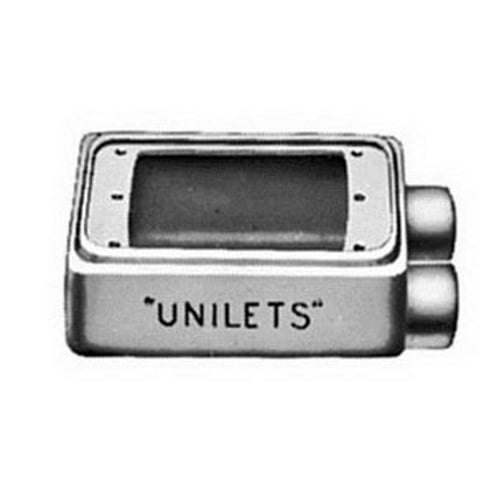

The APPLETON FDS-1-100 FD Device Box is a 1-gang, deep, heavy-duty box made from malleable iron. It features internal ground screws and is suitable for use with rigid/IMC conduit. The box provides a 25 cu-in capacity and has two 1-inch hubs for cable entry. It is finished with a tri-coat for corrosion resistance.

• Furnished with Internal Ground Screw
• For Use With Rigid/IMC Conduit
• Accommodate wiring devices such as switches and receptacles

Product Highlights

This malleable iron device box offers durability and is ideal for indoor and outdoor installations. It provides secure connections for branch conduit runs and easy access to conductors for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FDS-1-100
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Gangs: 1
• Number of Hubs: 2
• Application: For Use With Threaded Metal Conduit And IMC
• Brand Name: Appleton
• Cable_Entry: (2) 1 IN Hub
• Country of Origin: MX
• Cubic_Capacity: 25
• Finish: Tri-Coated
• Hub_Size: 1
• Knockouts: False
• Number_Of_Outlets: 2
• Size: 1
• Special Features: Accommodate wiring devices such as switches and receptacles Accurately tapped, tapered threads for tight, rigid joints and ground continuity Allow connections for branch conduit runs Blank bodies for special conduit entrance arrangements Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit Complete selection of covers, receptacles, plugs, gaskets and accessories Corrosion-resistant ideal for indoor and outdoor installations Covers have captive stainless steel screws to speed installation, prevents loss of screws FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears FS and FD boxes take standard flush wiring devices Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock Permit access to conductors for maintenance Provide excellent service in areas where boxes are subject to rough usage Provide openings for making splices Serve as pull boxes for conductors Smooth, rounded integral bushing in each hub protects conductor insulation Weatherproof, raintight and dust tight when used with cast gasketed covers Without knockouts
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• Sub_Brand: Appleton
• Type: Type FDS Deep Heavy Duty
