Appleton FDC1100 FDC Device Box, 1-Gang, 1 inches

Product Description

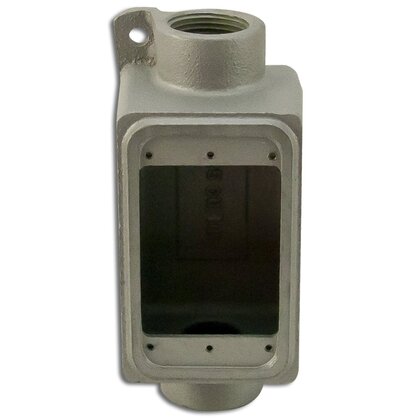

The APPLETON FDC1100 is a 1-Gang FDC Device Box made from malleable iron. It is designed for use with threaded rigid metal conduit. The box includes an internal ground screw and features a ridge top, cast box design. FS and FD cast hub device boxes are suitable for industrial, commercial, or residential use.

• For Use with Threaded Rigid Metal Conduit
• Includes Internal Ground Screw
• Ridge Top, Cast Box

Product Highlights

The APPLETON FDC1100 device box is ideal as a general purpose receptacle or for powering portable equipment.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FDC1100
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Gangs: 1
• Hub Diameter: 1 in
• Number of Hubs: 2
• Box Depth: 2.69"
• Application: For Use With Threaded Metal Conduit And IMC
• ARRA Compliant: Y
• Buy American Compliant: N
• Cable Entry: 1
• Cable Entry Size: Knockout
• Catalog Number: APPFDC1100
• Country of Origin: MX
• Cubic Capacity: 25 CU-IN
• Enclosure Type: NEMA FB-1
• Finish: Tri-Coated
• Height: 3.40 in
• Hub Size: 1 in
• Hub Style: Tapered Threaded
• Length: 7.00 in
• Number Of Outlet: 2
• Size: 1 IN
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514A File No. E2527CSA C22.2 No. 18.1/001472NEMA FB-1
• Sub Brand: UNILETS
• Type: Type FDC Deep Heavy Duty
• UNSPSC: 39121315
• UPC 12: 781381335652
• Width: 5.00 in
• Brand: Appleton
• Manufacturer: Appleton
• Capacity: 25 in
• Number of Gangs: 1
• Number of Knockouts: 2
• Number of Outlets: 2
