Appleton FD250 1/2 Type Fd 2-Gang Unilet

Product Description

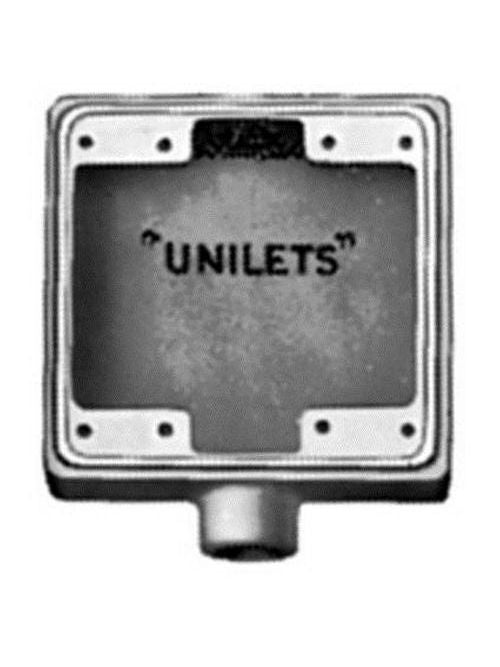

The Appleton FD250 is a 1/2 inch type FD 2-gang Unilet box suitable for electrical installations. This product is made from malleable iron and is designed for use with threaded metal conduit and IMC. It features a cubic capacity of forty-five cubic inches and includes one hub for cable entry. The FD250 is compliant with UL and CSA standards.

• Material: Malleable Iron
• Cable Entry: One half-inch hub
• Dimensions: Height four point six three inches, Width four point six three inches, Depth two point six nine inches

Product Highlights

Designed to withstand rough usage and provide reliable service

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: FD250

Technical Specifications

• Material: Malleable Iron
• Application: For use with threaded metal conduit and IMC
• Cable Entry: one half-inch
• Cubic Capacity: Forty-five cubic inches
• Height: Four point six three inches
• Width: Four point six three inches
• Depth: Two point six nine inches
• Standard Compliance: UL 514 A, CSA C22.2 No. 18.1
