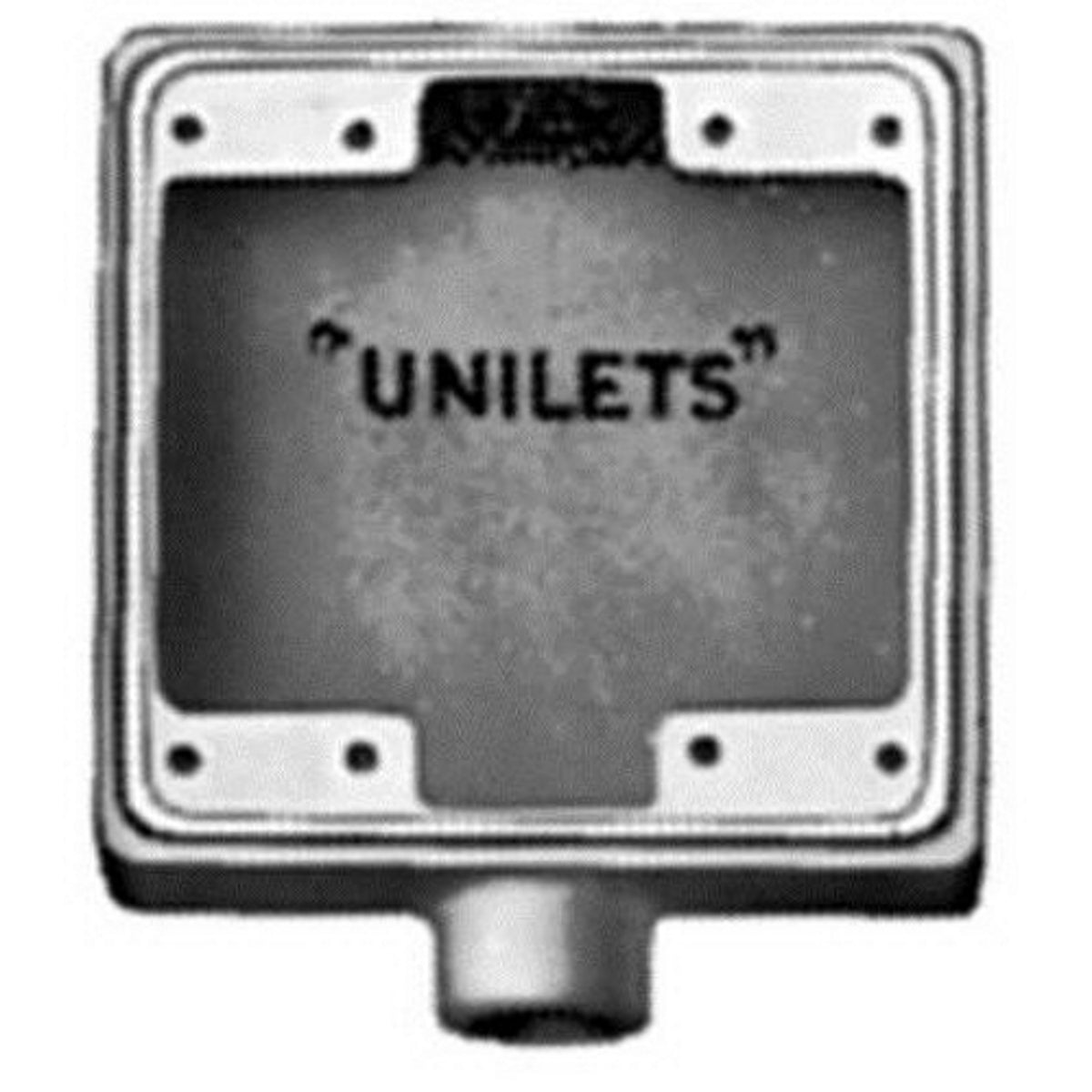

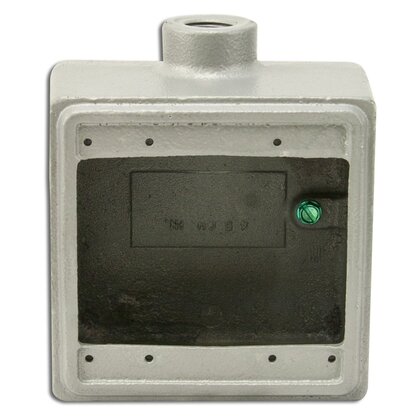

Appleton FD2100 Unilet Type FD-2 Gang Device Box 1 IN

Product Description

The APPLETON FD2100 Unilet Type FD Deep Depth 2-Gang Cast Device Box is constructed from malleable iron and designed for use with threaded metal conduit and IMC. It features a 1 IN hub cable entry and a cubic capacity of 45 CU-IN. The device box is suitable for both indoor and outdoor installations.

• Corrosion-resistant for indoor and outdoor installations
• Weatherproof, raintight and dust-tight when used with cast gasketed covers
• Malleable iron construction provides resistance to impact and shock

Product Highlights

This malleable iron device box provides access to conductors for maintenance and allows connections for branch conduit runs.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FD2100
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: FD2100
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: (1) 1 IN Hub
• Cubic Capacity: 45 CU IN
• Knockouts: No
• Material: Malleable Iron
• Special Features: Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices;
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• Item Type: FD Deep Depth 2-Gang Cast Device Box
• Size: 1 IN
• Number of Hubs: 1
• Hub Diameter: 1 in
• Gangs: 2
• Enclosure Type: NEMA FB-1
• Finish: Tri-Coated
• Hub Size: 1 in
• Hub Style: Tapered Threaded
• Number of Gangs: 2
• UPC: 781381334457
