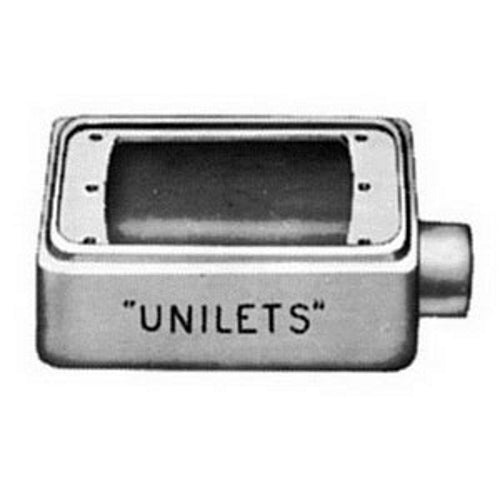

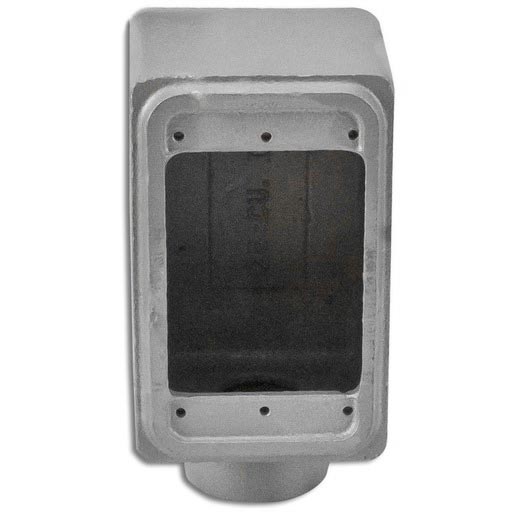

Appleton FD175 3/4 TYPE FD THREAD UNILET

Product Description

Appleton FD175 is a 3/4 inch type FD thread unilet designed for heavy-duty applications. This device box features a deep depth structure, providing ample space for wiring and electrical devices. Constructed from malleable iron, it is suitable for both indoor and outdoor installations. It includes one hub for cable entry and has a cubic capacity of twenty-five cubic inches.

• Material: Malleable Iron
• Cable Entry: (1) 3/4 Inch Hub
• Cubic Capacity: 25 CU-IN

Product Highlights

This device box is designed to withstand rough usage, providing durable service in various conditions. It features an internal ground screw for improved safety and compliance with electrical standards.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer: Appleton

Technical Specifications

• Catalog Number: FD175
• Application: For use with threaded metal conduit and IMC
• Height: 4.56 inches
• Width: 2.81 inches
• Depth: 2.69 inches
• Knockouts: No
• Hub Size: 3/4 inch
• Weight: 2.99 pounds
• Country of Origin: Mexico
• Capacity: 25 CU-IN
• Standards: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1
