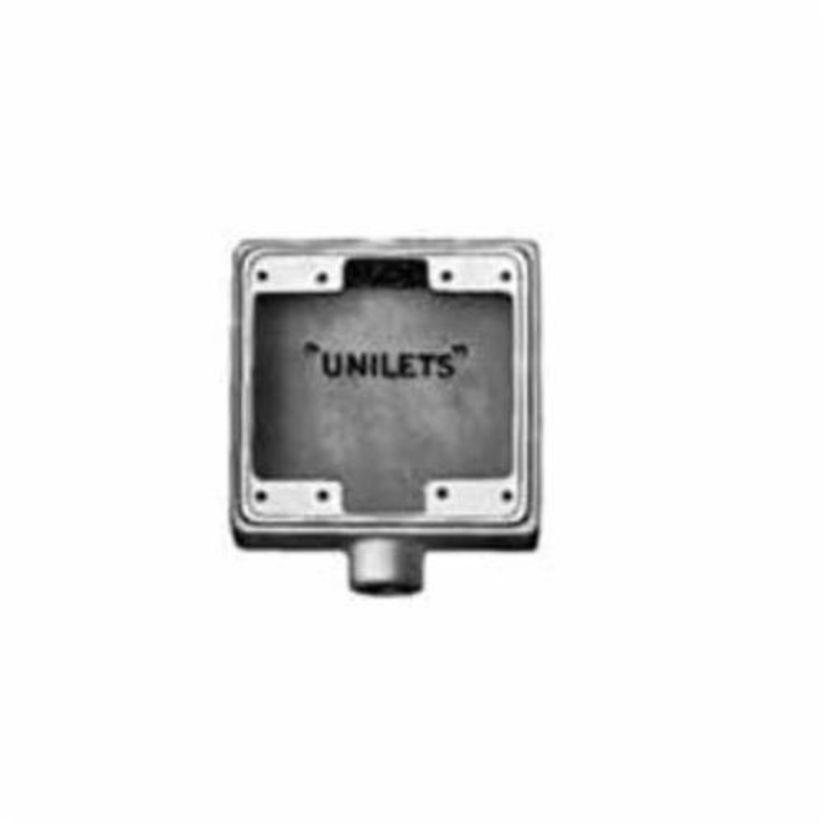

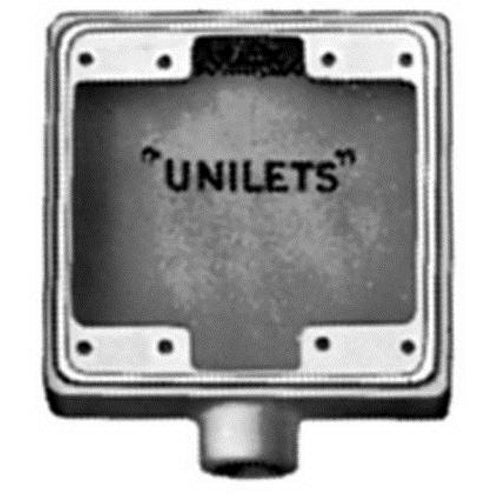

Appleton FD-2-75-A FD 3/4 inches 2-Gang Aluminum FD Box

Product Description

The APPLETON FD-2-75-A is a 3/4" 2-Gang Aluminum FD Box. These heavy-duty cast hub device boxes accommodate standard wiring devices such as switches and receptacles. They serve as pull boxes for conductors and provide access for splicing and maintenance, or allow connections for branch conduit runs.

• For Use With Threaded Metal Conduit And IMC
• Corrosion-resistant ideal for indoor and outdoor installations
• Weatherproof, raintight and dust-tight when used with cast gasketed covers

Product Highlights

The Appleton FD series device boxes provide excellent service in areas where boxes are subject to rough usage.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: FD-2-75-A
• Country of Origin: MX

Technical Specifications

• Product Series: FD
• Manufacturer Part Number: FD-2-75-A
• Manufacturer: Appleton
• Family Series: Appleton Electrical Boxes, FD Series
• Description: UNILETS FD Deep Depth 2-Gang Cast Device Box, Number Of Outlet: 1, Material: Copperfree 4/10 Of 1 PCT Maximum Aluminum, Size: 3/4 IN, Cable Entry: 1 3/4 IN Hub, Cubic Capacity: 45 CU-IN, Knockouts: No, Height: 4.63 IN, Width: 4.63 IN, Depth: 2.69 IN,
• Style: FD
• Number of Gangs: 2
• Hub Size: 3/4 in
• Number of Hubs: 1
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Grounding: Yes
• Composition: Aluminum
• Protection Rating: Indoor, Outdoor (w/ Optional Gasketed Cover)
• Hazardous Location: No
• Approvals: CSA, UL
• Application: For Use With Threaded Metal Conduit And IMC
• Cable Entry: 0.75
• Catalog Number: FD275A
• Cubic Capacity: 45 CU-IN in ³
• Enclosure Type: NEMA FB-1
• Finish: Epoxy Powder Coated
• Hub Style: Tapered Threaded
• Knockout Size: 3/4 in
• Number Of Outlet: 1
• Size: 3/4 IN in
• Standard: UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1
• Standards: UL 514A File No. E2527CSA C22.2 No. 18.1, 001472NEMA FB-1RoHS Compliant
• Sub Brand: UNILETS
• Type: Type FD Deep Heavy Duty
• UNSPSC: 39121315
• UPC 12: 781381460866
• Brand: Appleton™
• Capacity: 45 in ³
• Dimensions: 4.63 in H x 4.63 in W x 2.69 in D
• Material: Aluminum
• Number of Knockouts: 1
• Number of Outlets: 1
• Package Type: EACH
