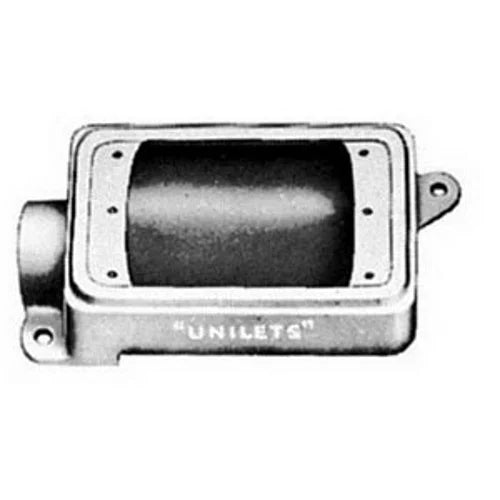

Appleton FD-1-50L 1-Gang Malleable Fd Box W/Lugs

Product Description

The Appleton FD-1-50L is a one-gang malleable cast device box designed for use with threaded metal conduit and intermediate metal conduit (IMC). This deep-depth box is constructed from malleable iron and features a corrosion-resistant coating, making it suitable for indoor and outdoor applications. With a cubic capacity of twenty-five cubic inches, this box provides adequate space for wiring devices.

• Number of hubs: one 1/2 inch hub
• Mounting hardware: includes two 5/16 diameter lugs
• Dimensions: 6.06 inches height, 2.81 inches width

Product Highlights

This product offers durable construction with malleable iron and provides ideal protection for electrical connections.

Product Information

Standard Information

• Catalog Number: FD-1-50L
• Manufacturer: Appleton Electric

Technical Specifications

• Dimensions: Height: 6.06 inches, Width: 2.81 inches, Depth: 2.69 inches
• Material: Malleable Iron with Zinc Electroplated Dichromate Epoxy Powder Coating
• Cable Entry: (1) 1/2 inch hub
• Cubic Capacity: 25 CU IN
• Mounting: (2) 5/16 diameter lugs
• Country of Origin: Mexico
• Approval: UL 514A
