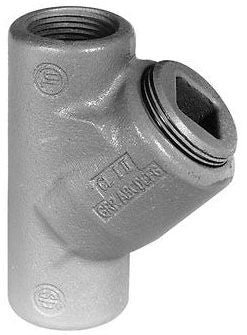

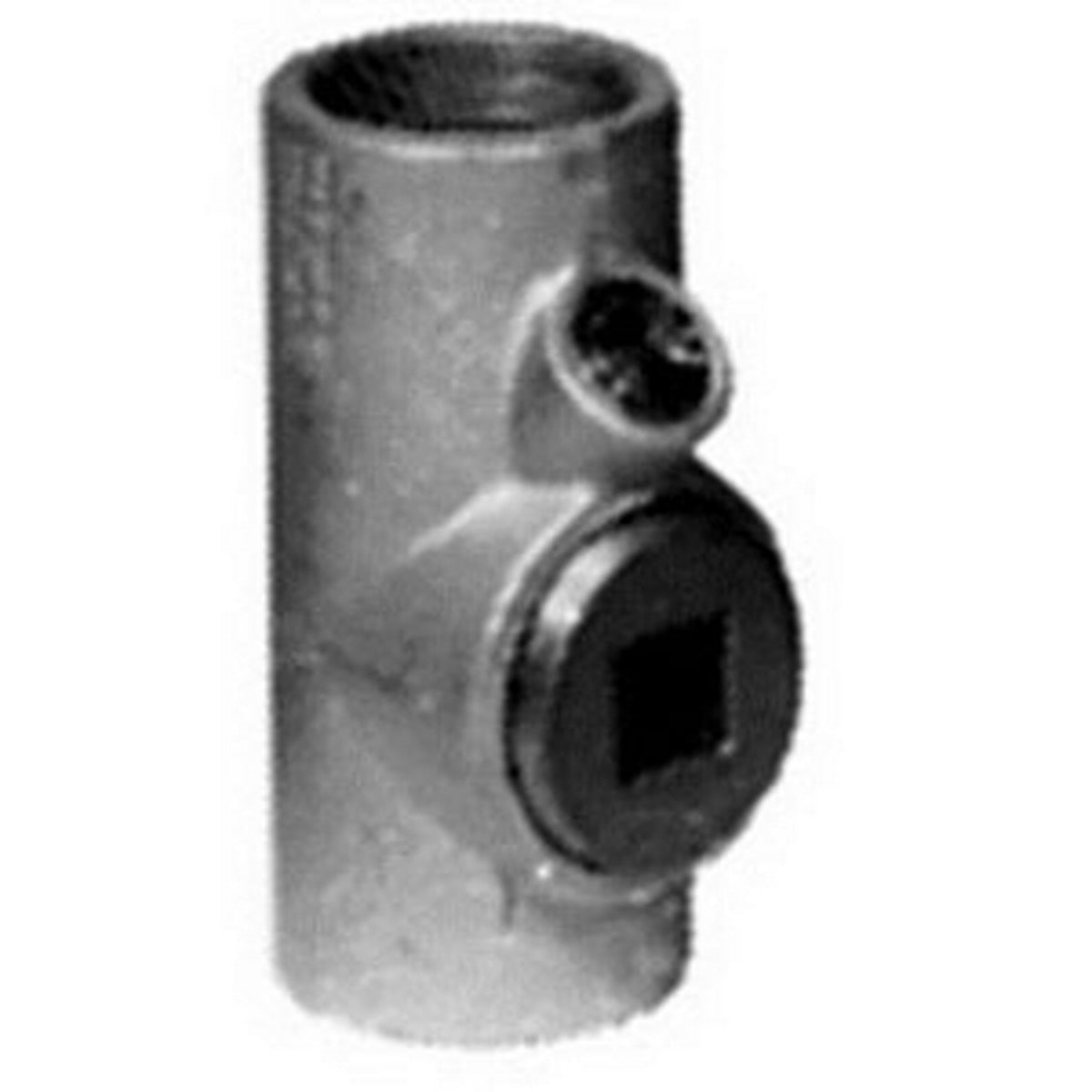

Appleton EYSF50 Vertical Drain Seal Fitting 1/2 Inch FNPT x FNPT

Product Description

The Appleton EYSF50 is a vertical drain seal fitting designed for use with threaded rigid metal conduit. It features a half-inch FNPT x FNPT connection. Constructed from malleable iron, this fitting provides a triple-coat finish for enhanced durability.

• Material: Malleable Iron
• Connection: Tapered FNPT
• Application: Seals gases, vapors, and flames

Product Highlights

This fitting is suitable for hazardous locations, ensuring the prevention of gas or vapor passage through the conduit system.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: EYSF50

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Length: Six and a half inches
• Width: Five inches
• Height: One and twenty hundredths inches
• Weight: Zero point six seven pounds
• Connection Type: Tapered FNPT
• Turning Radius: One point eight one inches
• Special Features: Explosionproof, dust-ignitionproof, raintight
