Appleton EYSF250 Unilets Conduit Seal 2-1/2 Inch, Female

Product Description

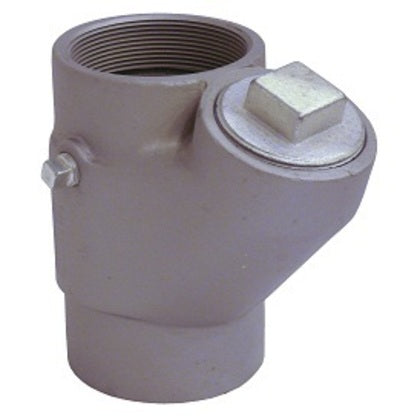

The APPLETON EYSF250 Unilets conduit seal is an explosionproof rigid/IMC conduit seal with a 4.75-inch turning radius and a 2-1/2 inch trade size. It features a female connection type and is constructed from zinc electroplated chromate epoxy powder-coated malleable iron. Designed for vertical mounting, it prevents the passage of gases, vapors, or flames in conduit systems.

• Explosionproof, dust-ignitionproof, and raintight design
• Constructed from zinc electroplated chromate epoxy powder-coated malleable iron
• Prevents passage of gases, vapors, or flames in conduit systems

Product Highlights

This conduit seal is suitable for use in Class I and II hazardous locations and is designed to prevent pressure piling within conduit systems.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYSF250
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EYSF250
• Manufacturer: Appleton Electric
• Brand: Appleton
• Made in USA: No
• RoHS Indicator: Contact Manufacturer
• UPC: 781381331050
• GTIN: 00781381331050
• Length: 9.3000 Inch
• Width: 7.0000 Inch
• Height: 5.5000 Inch
• Turning Radius: 4.75 Inch
• Trade Size: 2-1/2 Inch
• Connection Type: Female
• Material: Malleable Iron
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Application: Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Product Series: EYS 25
• Family Series: Appleton Fittings, EYS 25 Series
• Description: Explosionproof Rigid/IMC Conduit Seal, Turning Radius 4.75 Inch, Trade Size 2-1/2 Inch, Connection Type Female, Material Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron, Mounting Position Vertical, Enclosure Class I Div 1 and 2 Group A B C
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Position: Vertical
• Composition: Metallic
• Protection Rating: Raintight
• Hazardous Location: Yes
• Finish: Triple Coated
• Manufacturer Name: Emerson Electric
• Series: EYS
• Size: 2-1/2 in
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Type: Dust-Ignitionproof Explosionproof Raintight
• MPN: EYSF250
