Appleton EYSF200 eys series 25 pct fill vertical conduit sealing fitting 2 in

Product Description

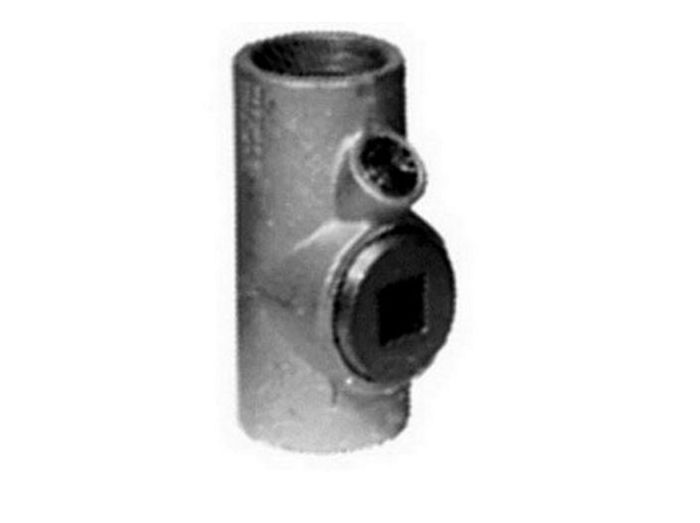

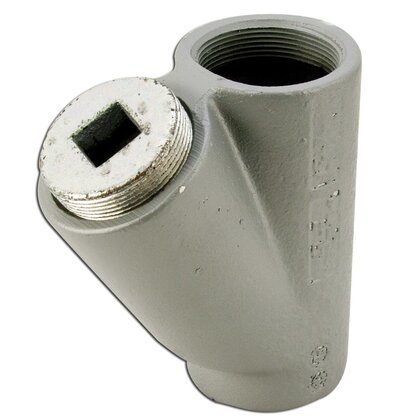

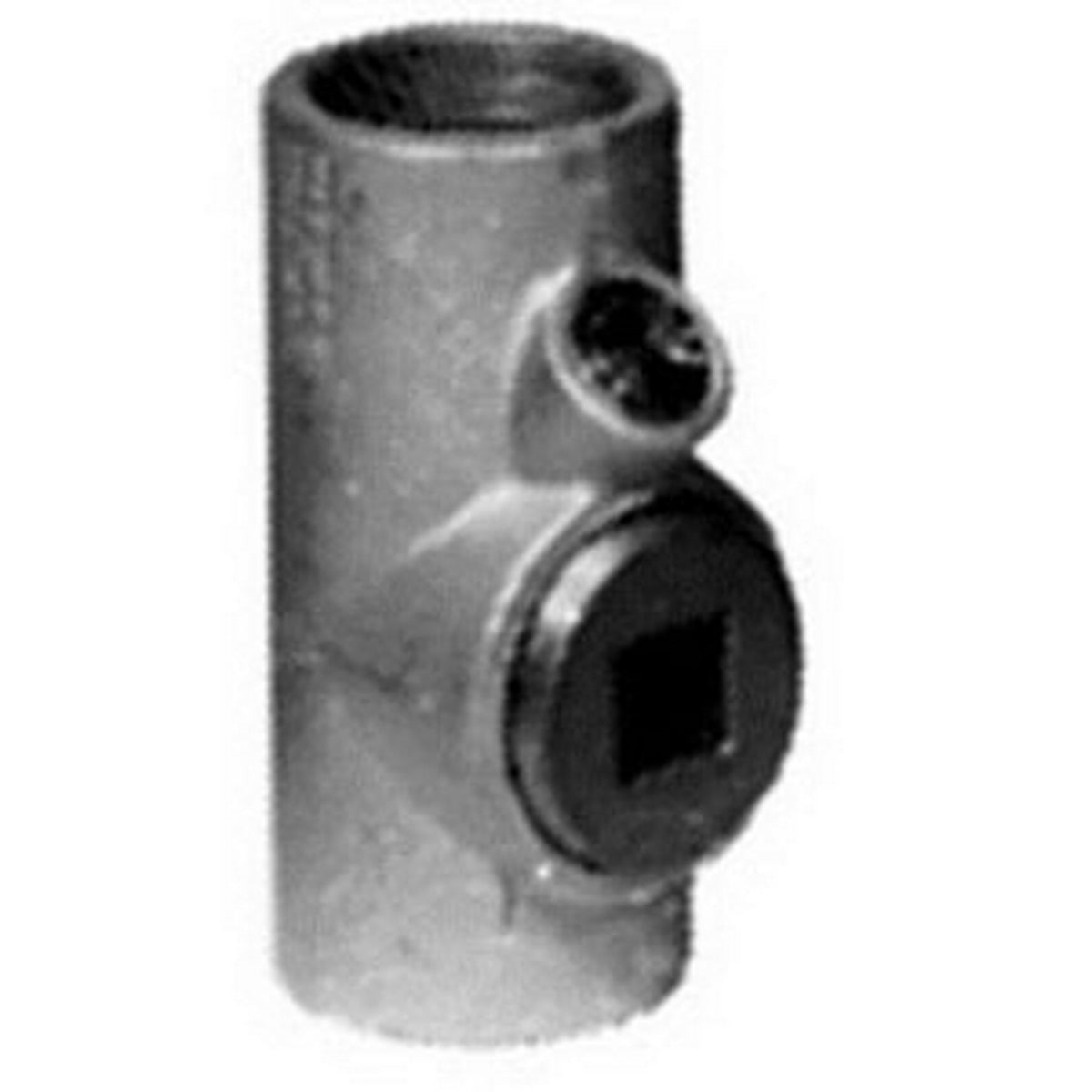

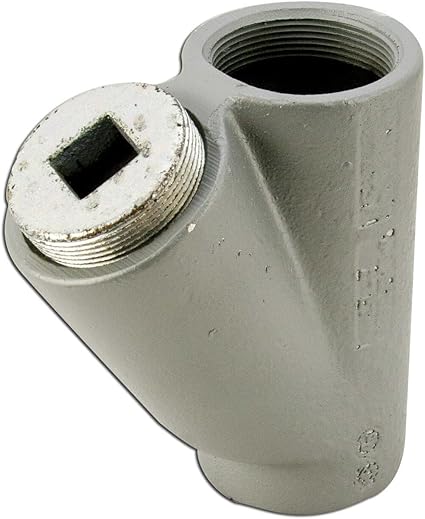

The Appleton EYSF200 is an EYS Series 25 PCT Fill vertical conduit sealing fitting. This fitting, made of malleable iron with a triple-coat finish, is size 2 IN and features a tapered FNPT connection. It is designed for use with threaded rigid metal conduit and IMC to prevent the passage of gases, vapors, or flames.

• Explosion Proof
• 25 PCT Fill
• Tapered FNPT Connection

Product Highlights

The Appleton EYSF200 is ideal for use with threaded rigid metal conduit and IMC in hazardous locations. It is explosion-proof, dust-ignitionproof, and raintight.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYSF200
• Country of Origin: Mexico

Technical Specifications

• Size: 2 IN
• Type: Explosionproof, Tapered Female, 25% Fill
• Brand: Appleton
• Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
• Material: Malleable Iron
• Sub Brand: Unilet
• Used With: Threaded Rigid Metal Conduit and IMC
• Trade Size: 2 "
• Product UPC: 78138133096
• 12-Digit UPC: 781381330961
• Applications: For Use With Threaded Rigid Metal Conduit and IMC
• TC Connection: Tapered FNPT
• Catalog Number: EYSF200
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Connection: Tapered FNPT
• Special Features: For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; F
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
• RoHS Indicator: Contact Manufacturer
• Item Type: EYS Series 25 PCT Fill Vertical Conduit Sealing Fitting
• Turning Radius: 4.13 "
• Connection Type: Female
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL 886, CSA C22.2
• Product Series: EYS 25
• Family Series: Appleton Fittings, EYS 25 Series
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Position: Vertical
• Composition: Metallic
• Protection Rating: Raintight
• Hazardous Location: Yes
• Series: EYS
• Standards: UL 1203 File No. E10444CSA C22.2 No. 30CSA 065181RoHS Compliant
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
