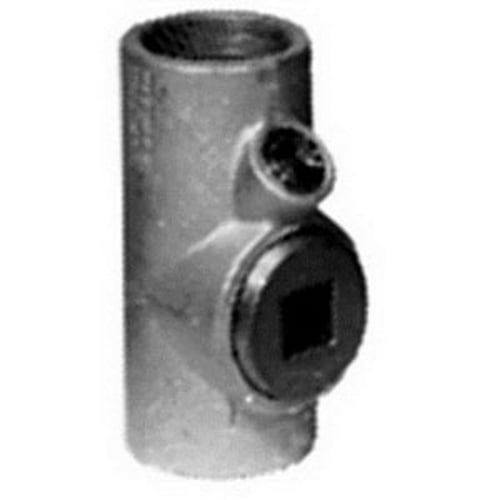

Appleton EYSF-100 1 Explosion Proof Sealing Fitting

Product Description

The Appleton EYSF-100 is a one-inch explosion-proof sealing fitting designed for hazardous locations. It is made from malleable iron and features a triple-coat finish for enhanced durability. This fitting is suitable for use with threaded rigid metallic conduit and IMC, providing an effective barrier against gases, vapors, and flames.

• Explosion proof and dust-ignition proof
• Constructed from malleable iron
• Compatible with threaded rigid metal conduit

Product Highlights

This sealing fitting is ideal for installations requiring high safety standards. Its design prevents the passage of hazardous elements between sections of conduit, making it essential for compliance in Class I and Class II locations.

Product Information

Standard Information

• Catalog Number: EYSF-100
• Brand: Appleton

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection Type: Tapered FNPT
• Trade Size: 1 Inch
• Turning Radius: 2.38 Inches
• Weight: 1.57 Pounds
• Length: 8.1 Inches
• Width: 5.1 Inches
• Height: 0.92 Inches
