Product Description

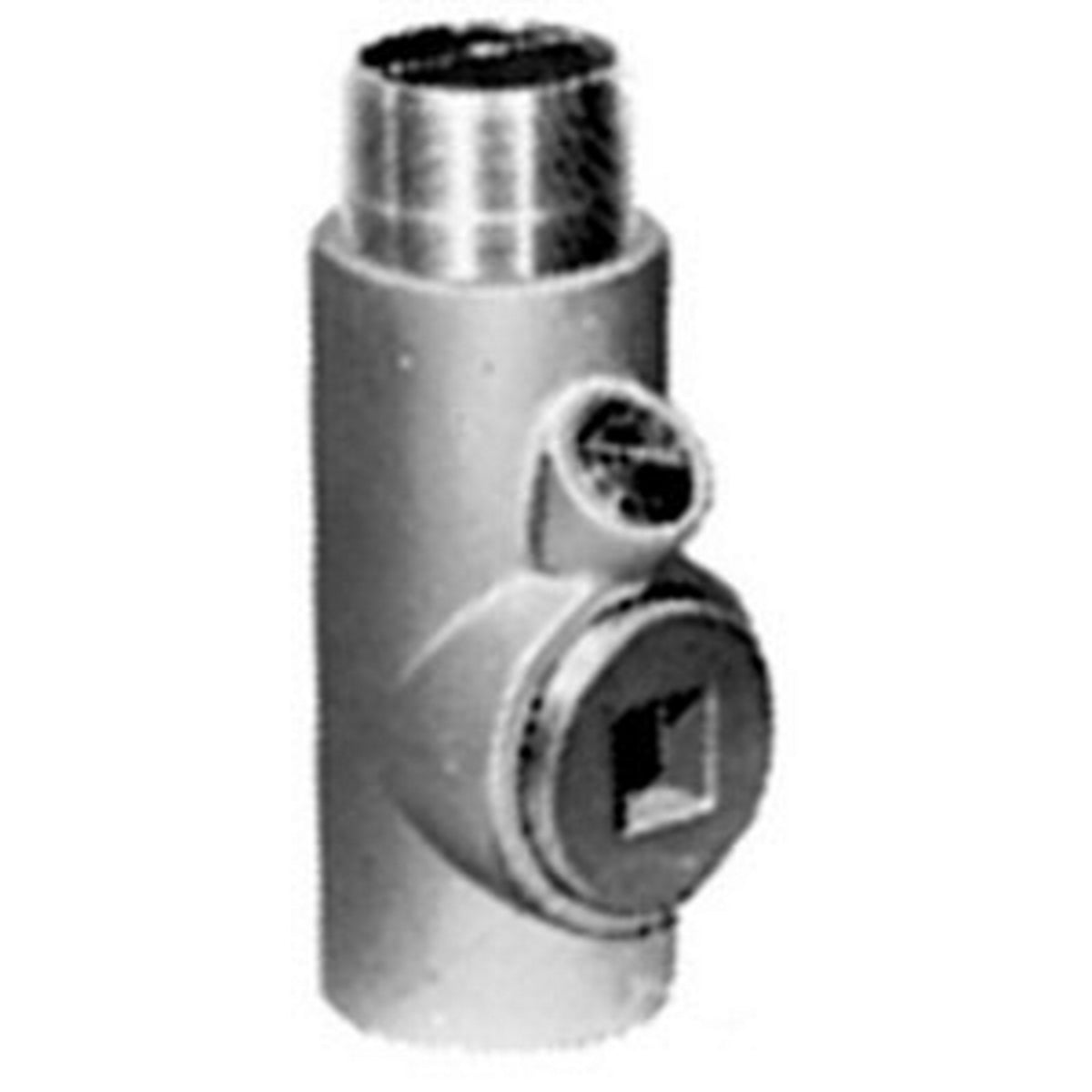

The Appleton EYS76 is a conduit seal-off fitting designed for use with threaded rigid metal conduit and IMC. This sealing fitting ensures the prevention of gas, vapor, and flame passage from one part of the conduit system to another. The fitting features a removable nipple, making it practical for various installation needs. The EYS76 is made from Grayloy iron and has a triple-coat finish including zinc electroplate, chromate, and epoxy powder coat for durability.
- Size: Two and one-half inches
- Material: Grayloy iron
- Connection: Tapered MNPT X Tapered FNPT
Product Highlights
This product is necessary for Class I, Division 1 and 2 locations to prevent hazardous conditions, ensuring safety in installations.
Product Information
Standard Information
-
Catalog Number: EYS76
-
Manufacturer: Appleton Electric
Technical Specifications
-
Finish: Triple-coat (zinc electroplate, chromate, epoxy powder coat)
-
Color: Gray
-
Weight: 8.4 pounds
-
Dimensions: Length - ten and three-tenths inches, Width - three and nine-tenths inches, Height - five and four-tenths inches
-
Special Features: Explosionproof, dust-ignitionproof, rain-tight; integral bushing provides insulation protection; tightly tapped threads for ground continuity.
-
Application: Essential for conduit installations, specifically in explosive and hazardous environments.
