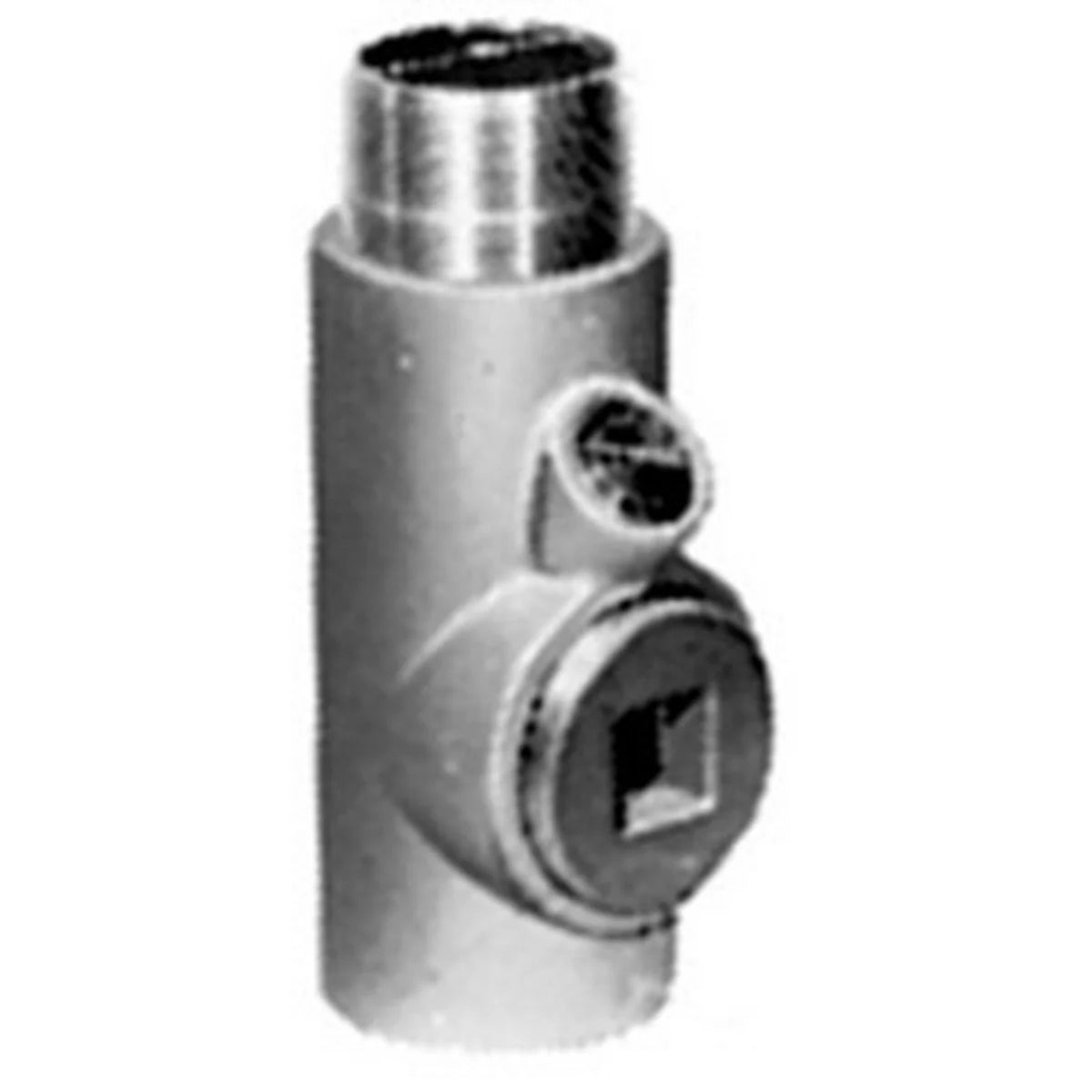

Appleton EYS56 1-1/2 Male Seal-Off

Product Description

The Appleton EYS56 is a 1-1/2 inch male seal-off fitting designed for use with threaded rigid metal conduit and IMC. This fitting is constructed from grayloy-iron and features a triple-coat finish for enhanced durability and corrosion resistance. Its tapered MNPT to FNPT connection ensures a secure fit, effectively preventing the passage of gases, vapors, or flames. The removable nipple allows for easy installation and maintenance.

• Constructed from grayloy-iron
• Triple-coat finish for durability
• Meets UL standards for explosionproof fittings

Product Highlights

The EYS56 is suitable for Class I, Division 1 and 2 locations, making it ideal for environments that require stringent safety measures. This fitting is easy to install, and its integral bushing design helps protect conductor insulation.

Product Information

Standard Information

• Catalog Number: EYS56
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection: Tapered MNPT X Tapered FNPT
• Application: For use with threaded rigid metal conduit and IMC
• Dimensions: Length - seven inches, Width - four inches, Height - five inches
• Weight: 2.82 pounds
• Country of Origin: Mexico
