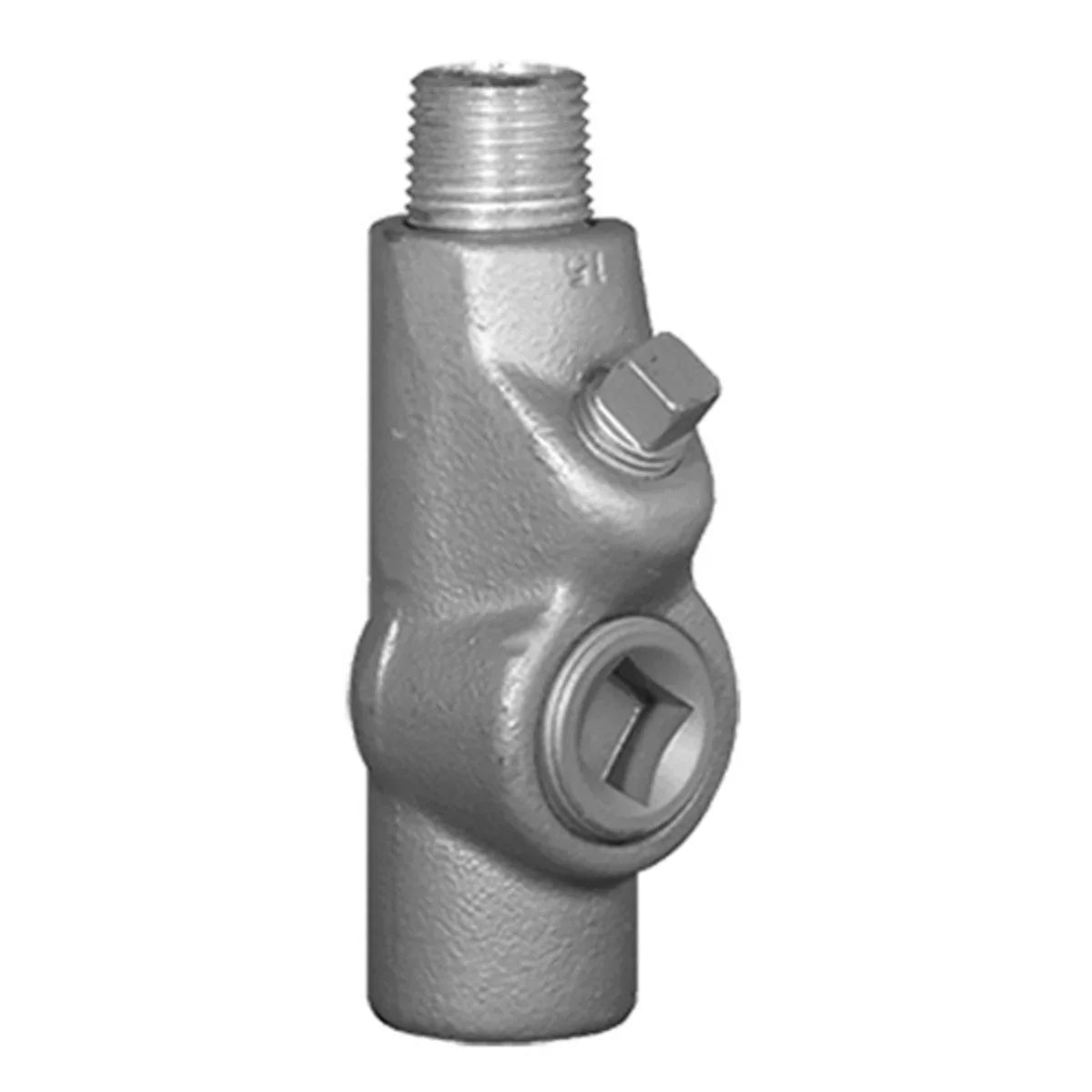

Appleton EYS316 1 Male Seal-Off

Product Description

The Appleton EYS316 is a one-inch male seal-off fitting designed for use with threaded rigid metal conduits and IMC. This product features malleable iron construction with a triple-coated finish that ensures durability and protection against corrosive elements. The tapered MNPT connection ensures a stable fit, making it suitable for a variety of applications in hazardous locations.

• Compatible with threaded rigid metal conduit
• Explosion-proof and dust-ignition-proof
• Removable nipple for flexible installation

Product Highlights

Engineered for safety, the Appleton EYS316 prevents the passage of gases, vapors, or flames from one portion of the conduit system to another. This fitting is designed to meet strict industry standards, ensuring reliable performance even in demanding environments.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EYS316
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Type: Sealing Fitting
• Size: 1 Inch
• Connection: Tapered MNPT X Tapered FNPT
• Weight: 1.850 Pounds
• Dimensions: 14.3 Inches Length x 13.4 Inches Width x 0.268 Inches Height
