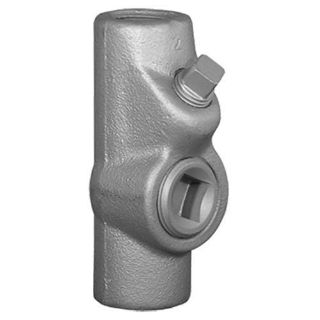

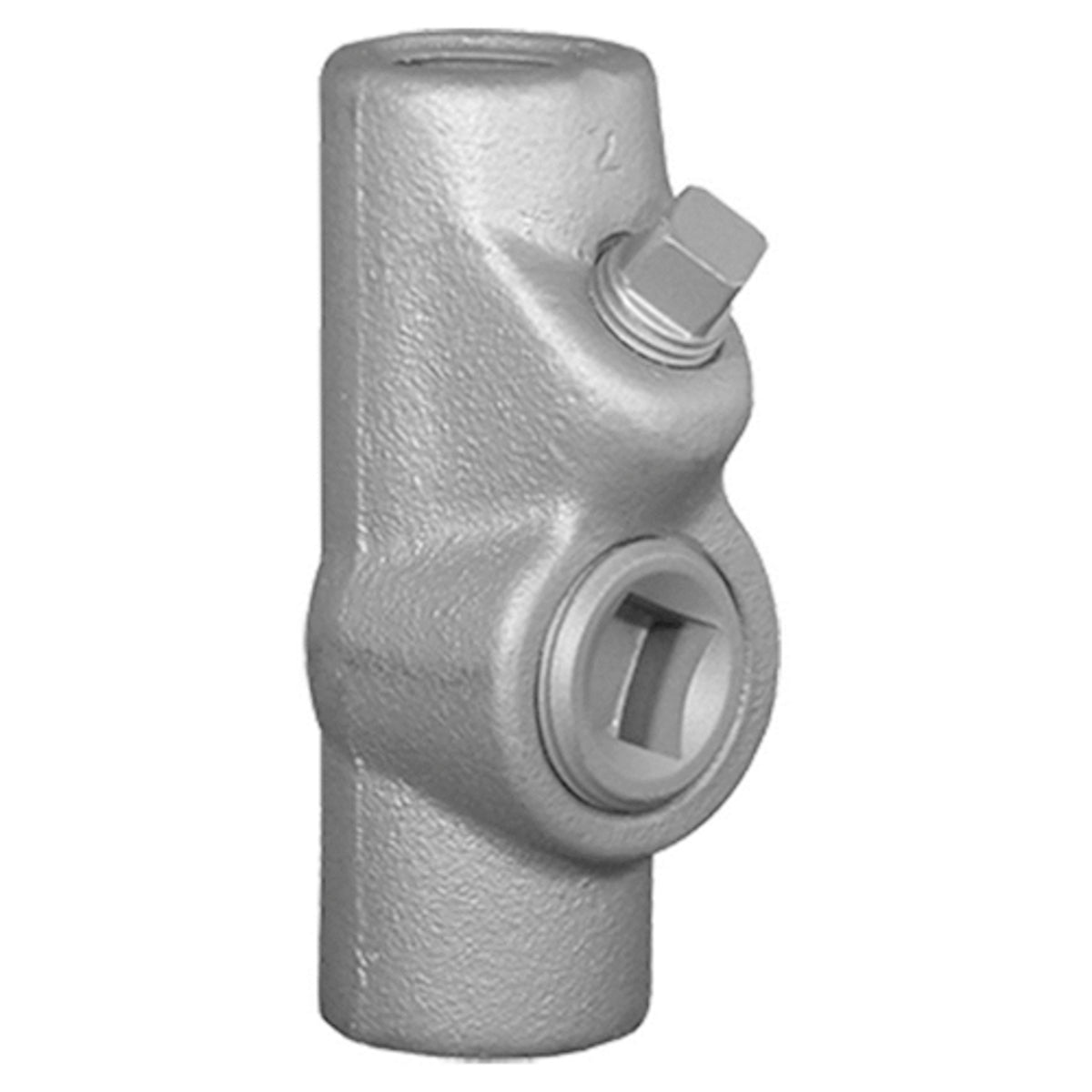

Appleton EYS21 APN Sealing Fitting 3/4

Product Description

The Appleton EYS21 is a sealing fitting designed for conduit systems. It minimizes the passage of gases and vapors. It also prevents flames from traveling between sections of conduits. This product is essential in hazardous locations.

• Explosionproof and dust-ignitionproof
• Constructed from Grayloy-Iron with triple-coated finish
• Compatible with IMC/Threaded Rigid Metallic conduit

Product Highlights

The EYS21 fitting is necessary for Class I, Division 1 and 2 locations. It helps to contain any explosions and prevents pressure piling in conduits.

Product Information

Standard Information

• Brand: Appleton
• Type: Dust-Ignitionproof Explosionproof Raintight

Technical Specifications

• Size: 3/4 in
• Material: Grayloy-Iron
• Finish: Triple Coated
• Dimensions: 3.69 in L x 1.5 in W
• Application: For use with IMC/Threaded Rigid Metallic Conduit
• Standards: UL 886 | UL 1203 File No. E10444 | CSA C22.2 No. 30
• Connection: Tapered FNPT
• Country of Origin: MX
