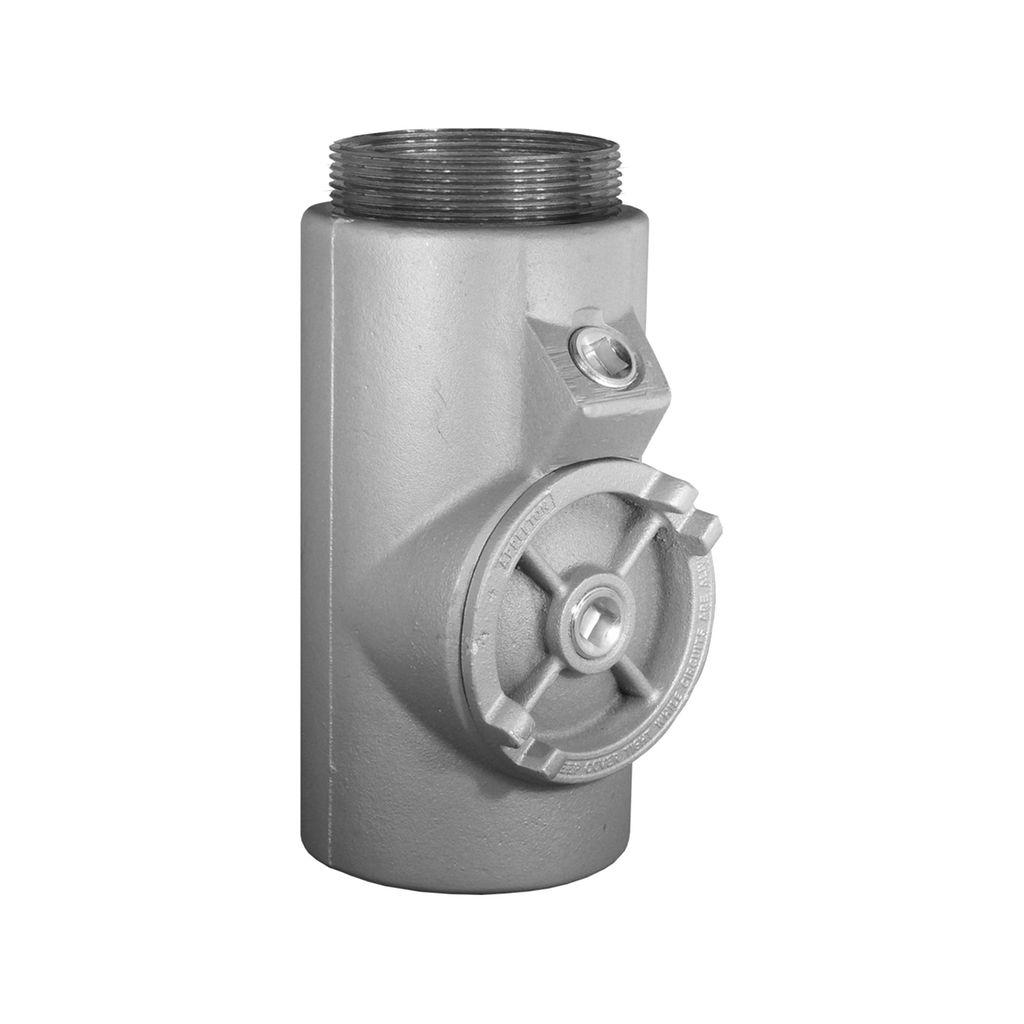

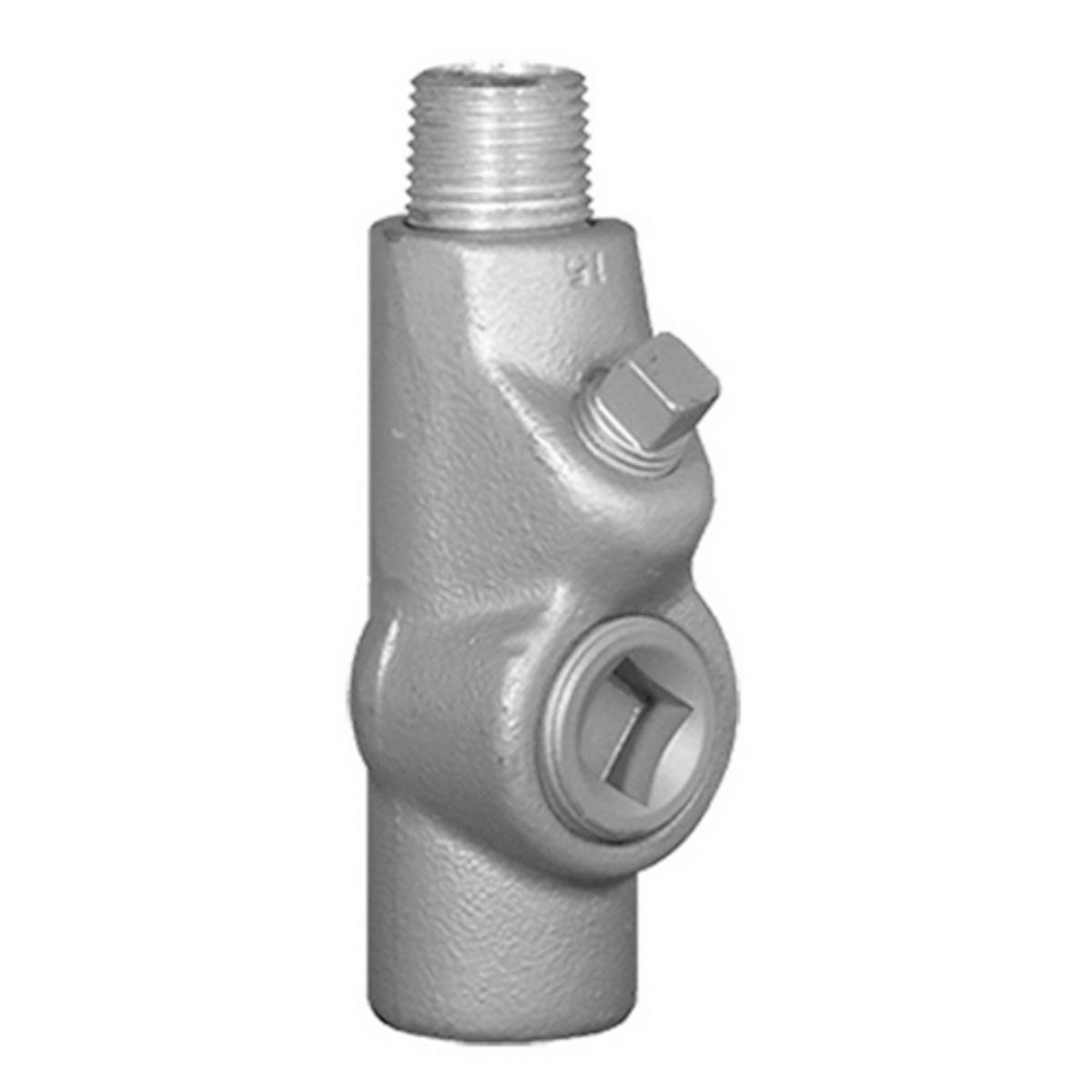

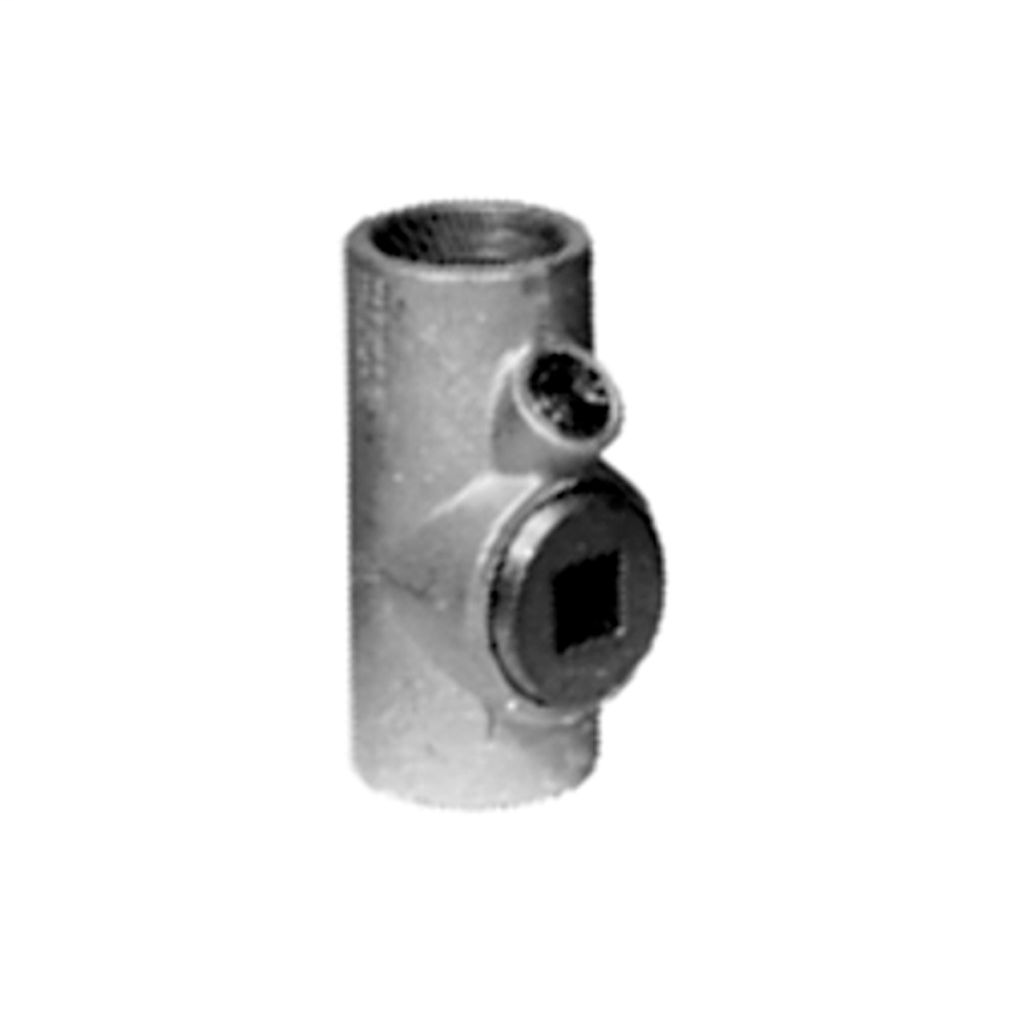

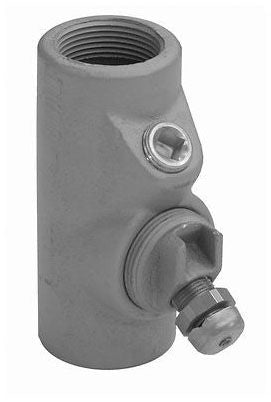

Appleton EYM75-AL 3/4 ALMAG 35 SEALING F

Product Description

The Appleton EYM75-AL is a conduit sealing fitting designed for hazardous environments. This fitting is made from Almag 35 aluminum and features a female threaded and male threaded connection. It has a trade size of three-fourth inches. The fitting offers explosionproof and dust-ignitionproof protection.

• Explosionproof, dust-ignitionproof
• Prevents the passage of gases and vapors
• Must be used in specific hazardous locations

Product Highlights

Ideal for use with threaded rigid metal conduit and IMC, ensuring safety in environments containing potential ignition sources.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Brand: Appleton

Technical Specifications

• Catalog Number: EYM75-AL
• Material: Almag 35 Aluminum
• Finish: Powder Coated
• Connection: Female Threaded x Male Threaded
• Trade Size: 3/4 Inch
• Length: 5.2 Inches
• Width: 5.1 Inches
• Height: 0.94 Inches
• Weight: 0.33 Pounds
• Turning Radius: 1.19 Inches
• Used With: Threaded Rigid Metal Conduit and IMC
• Approval: UL 886 (1203), CSA C22.2
• Country of Origin: Mexico
• Applications: Hazardous Locations
