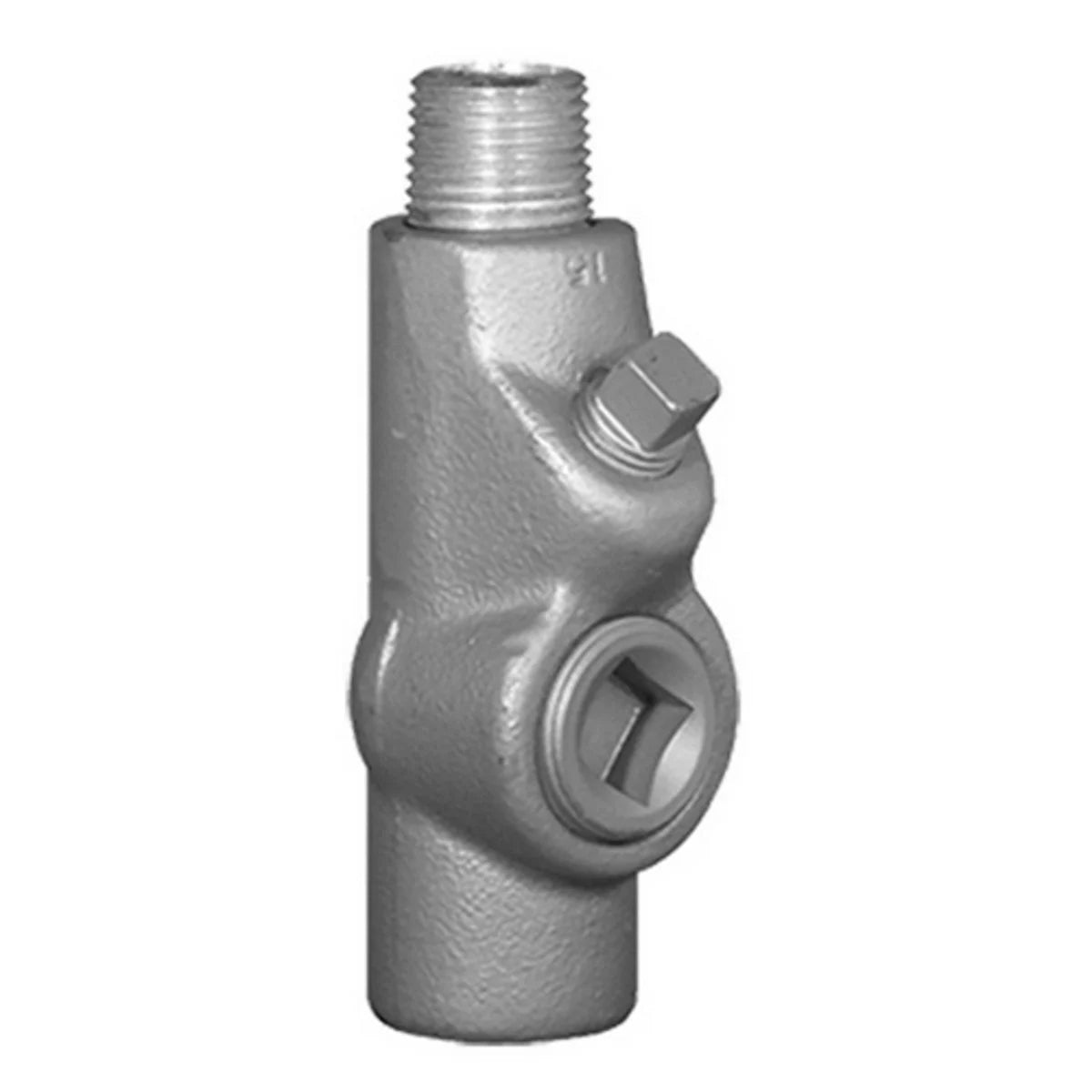

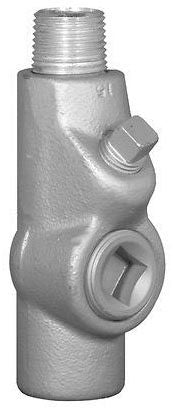

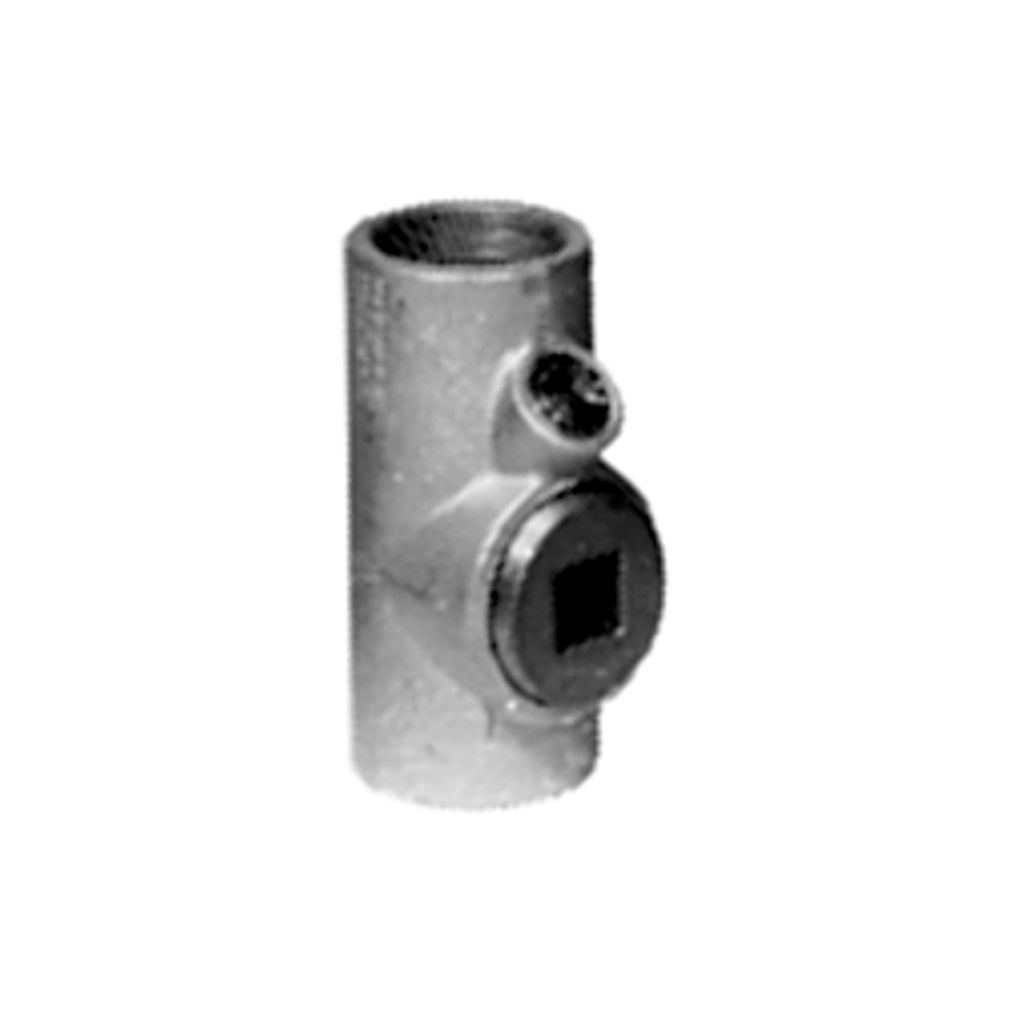

Appleton EYM50-AL 1/2 Aluminum Conduit Seal

Product Description

The Appleton EYM50-AL is a 1/2 inch aluminum conduit sealing fitting designed to prevent the passage of gases and flames between different sections of conduit systems. This fitting features a removable male nipple for easy installation and maintenance. It is suitable for Class I and II locations, making it ideal for various electrical applications.

• Explosionproof and dust-ignitionproof design
• Prevents explosive pressure accumulation
• UL listed for hazardous locations

Product Highlights

This conduit sealing fitting is crafted from Almag 35 aluminum and coated with epoxy powder for durability. It serves as a reliable barrier in conduit systems while ensuring safety in explosive environments.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: EYM50-AL

Technical Specifications

• Trade Size: 1/2 inch
• Material: Almag 35 Aluminum
• Finish: Epoxy Powder Coat
• Connection Type: Female Threaded X Male Threaded
• Turning Radius: 1.06 inches
• Dimensions: 5.5 inches (L) x 5.5 inches (W) x 0.7 inches (H)
• Weight: 0.28 pounds
• Application: For use with threaded rigid metal conduit and IMC
