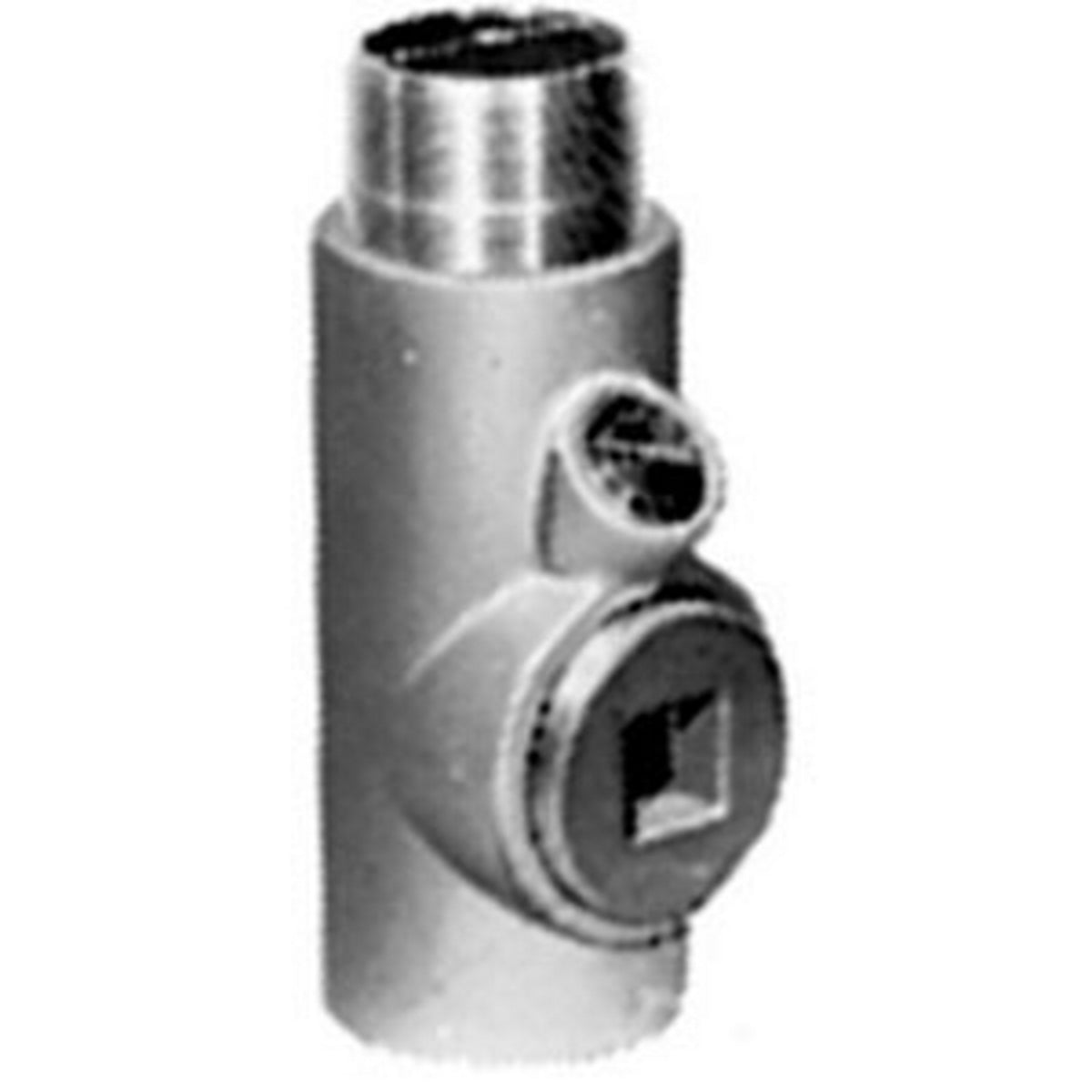

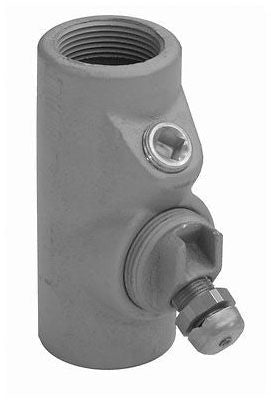

Appleton EYM125 1-1/4 Inch Explosion Proof Sealing Unilet

Product Description

The Appleton EYM125 is a 1-1/4 inch explosion proof sealing fitting designed for use with threaded rigid metal conduit and intermediate metal conduit. It is made of malleable iron and has a triple-coat finish of zinc electroplate, chromate, and epoxy powder coat. The fitting features a female threaded connection and includes a removable nipple for versatility.

• Designed for vertical and horizontal applications
• Robust malleable iron construction
• Meets UL and CSA standards for hazardous locations

Product Highlights

This sealing fitting is essential for preventing the passage of gases, vapors, or flames in hazardous locations. It is suited for Class I, Division 1 and 2 areas, ensuring compliance with safety regulations.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: EYM125

Technical Specifications

• Material: Malleable Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Connection Type: Female Threaded X Male Threaded
• Applications: For use with threaded rigid metal conduit and IMC
• Dimensions: Length 9.8000 inches, Width 4.1000 inches, Height 3.9000 inches
• Weight: 2.940 pounds
