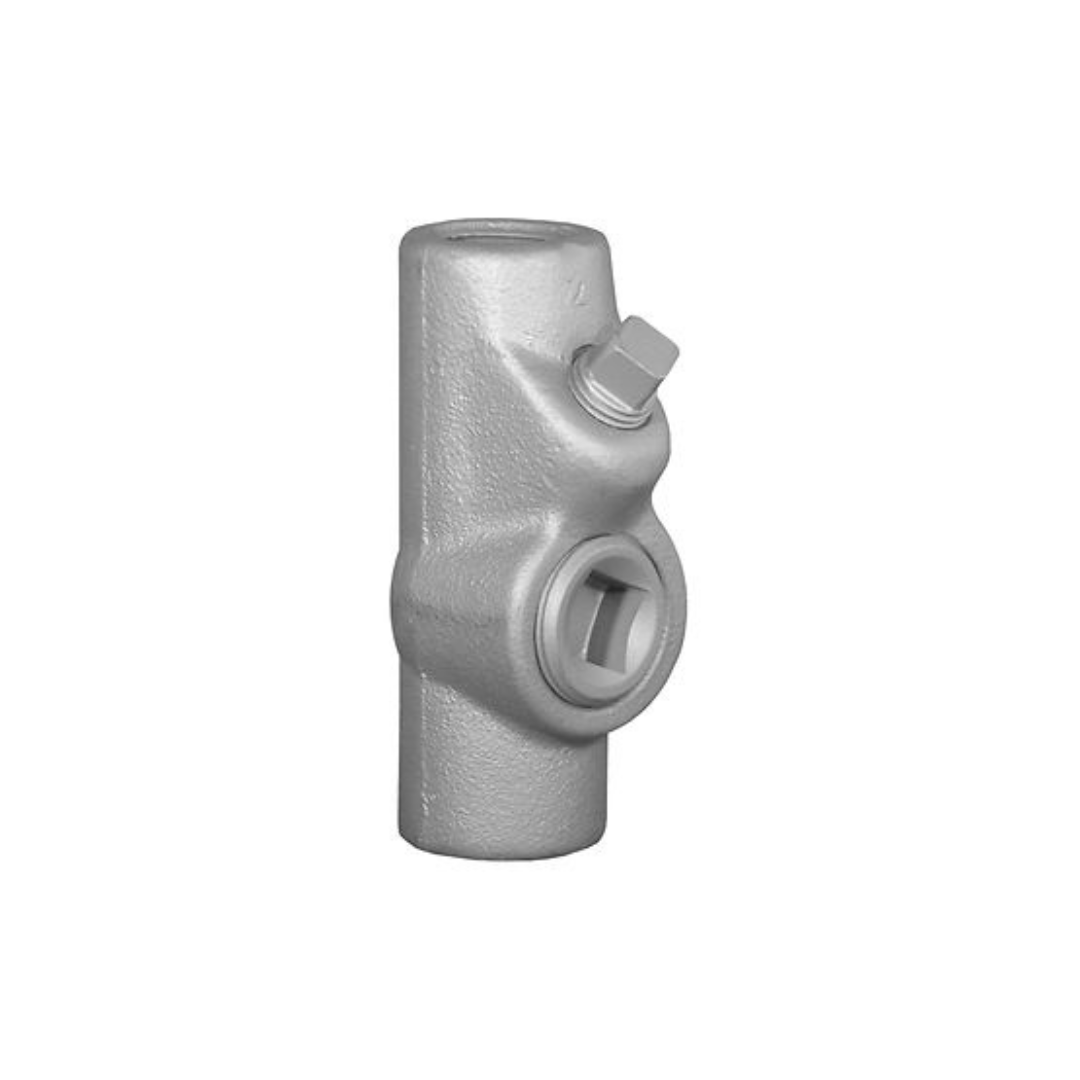

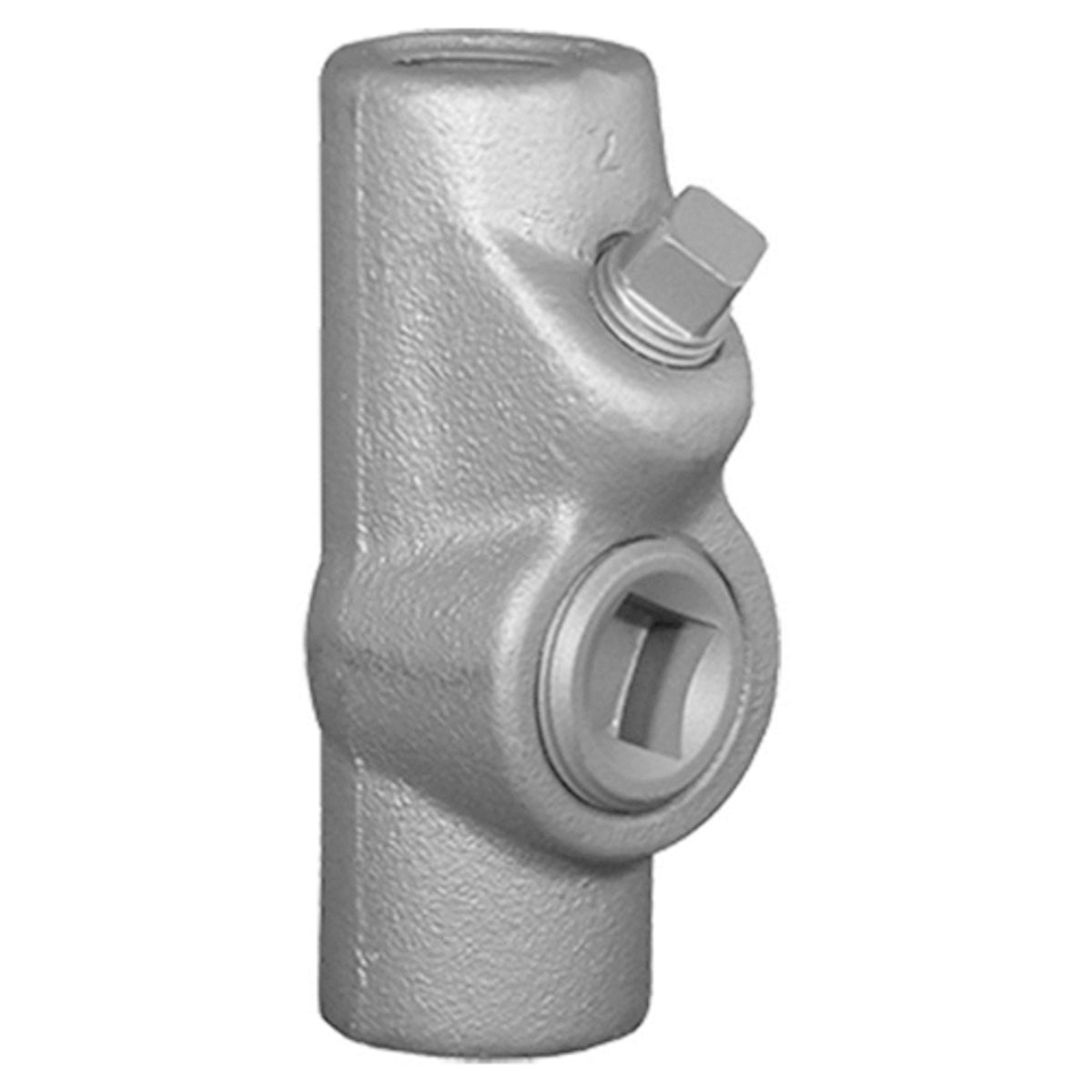

Appleton EYF75-AL 3/4 inches Epoxy Powder Coated Aluminum Explosionproof Conduit Seal

Product Description

The Appleton EYF75-AL is a 3/4" epoxy powder coated aluminum explosionproof conduit seal designed to prevent the passage of gases, vapors, or flames within a conduit system. It restricts explosions to sealed-off enclosures and prevents pressure piling. This fitting is explosionproof, dust-ignitionproof, and raintight, suitable for use with threaded rigid metal conduit and IMC.

• Explosionproof, dust-ignitionproof, and raintight.
• Prevents the passage of gases, vapors, or flames.
• Features smooth, rounded integral bushing to protect conductor insulation.

Product Highlights

This Appleton conduit seal is ideal for use in hazardous locations to maintain safety and prevent explosions.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYF75-AL
• Country of Origin: Mexico

Technical Specifications

• Size: 3/4 IN
• Type: EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
• Brand: Appleton
• Finish: Powder Coated
• Material: Aluminum
• Sub Brand: UNILETS
• Applications: For Use With Threaded Rigid Metal Conduit and IMC
• TC Connection: Female Threaded
• Connection: Female Threaded
• Country of Origin: Mexico
• Made in USA: No
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, d; Class II, Groups E, F, G; And Class III
• Item Type: EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
• Length: 5.0000 Inch
• Width: 4.8000 Inch
• Height: 0.8200 Inch
• Turning Radius: 1.19 Inch
• Trade Size: 3/4 Inch
• Connection Type: Female, Female
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Application: Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Series: EY Series
• Coating: Epoxy Powder Coated
