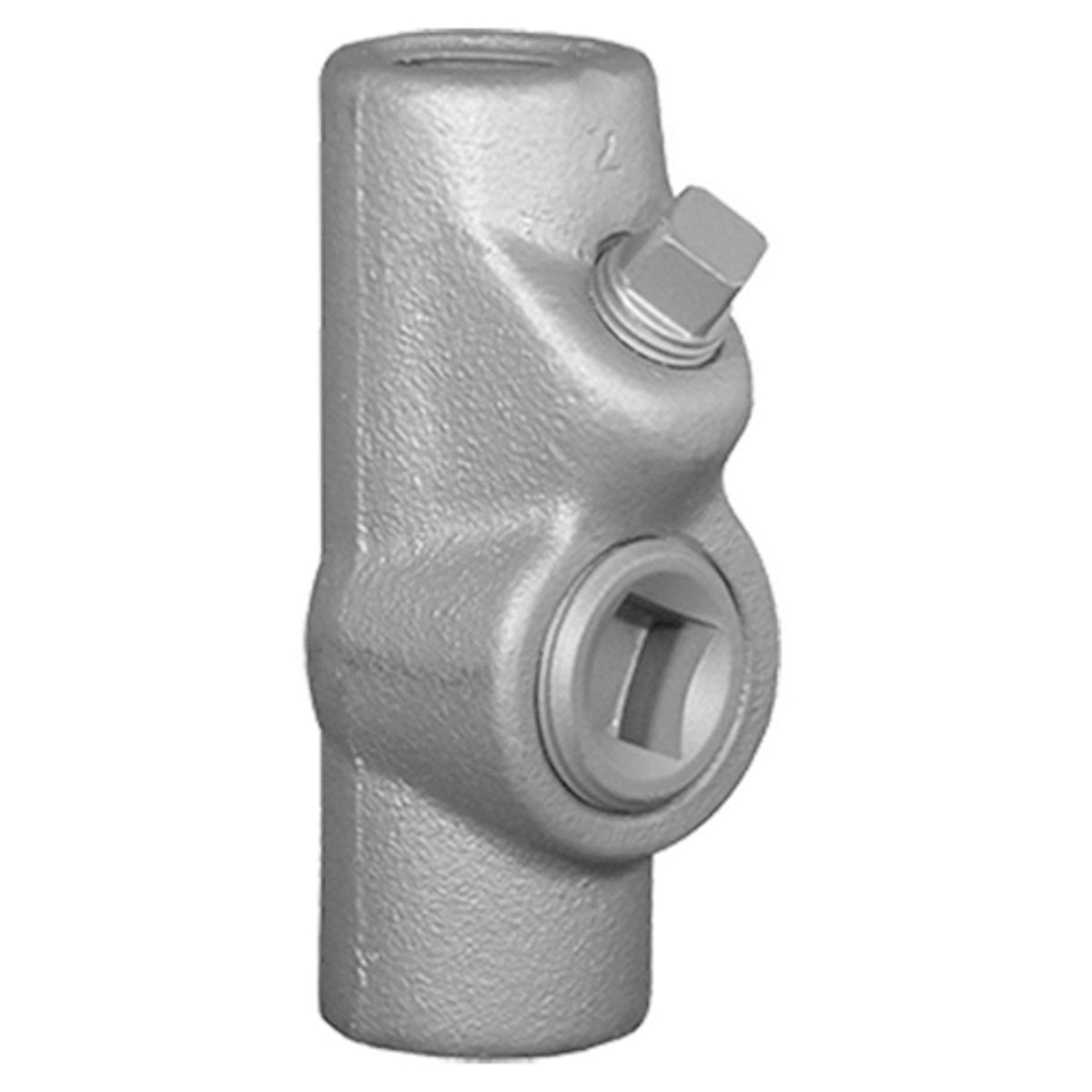

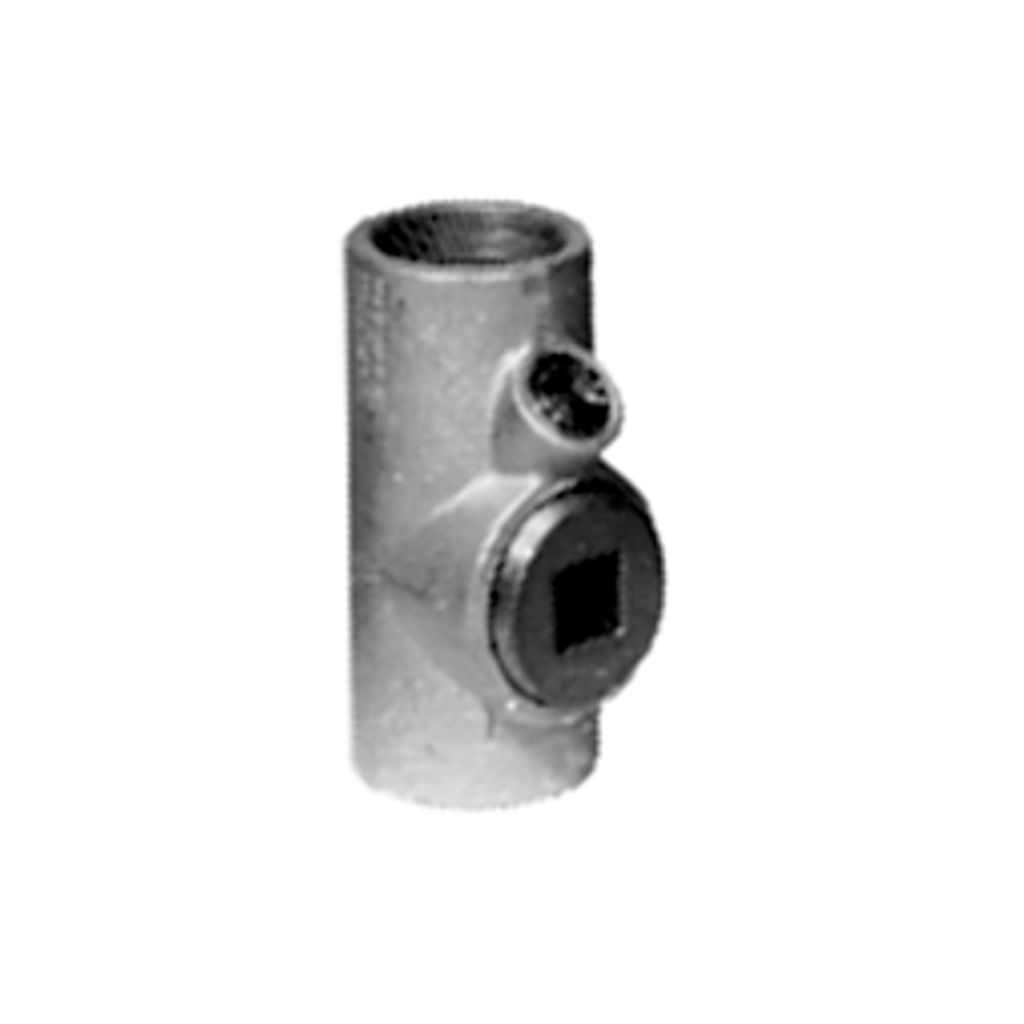

Appleton EYF100-AL EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting 1 IN

Product Description

The Appleton EYF100-AL is an EY Series 25% fill vertical and horizontal conduit sealing fitting that prevents the passage of gases, vapors, or flames within a conduit system. It restricts large amounts of ignitable gases or vapors from accumulating to confine explosive pressure. This sealing fitting is explosionproof, dust-ignitionproof, and raintight, suitable for use in Class I and II locations.

• Explosionproof, dust-ignitionproof, raintight
• Prevents passage of gases, vapors or flames from one portion of conduit system to another and restricts any explosion to the sealed off enclosure.
• Features smooth, rounded integral bushing in each hub to protect conductor insulation.

Product Highlights

The Appleton EYF100-AL sealing fitting is ideal for use with threaded rigid metal conduit and IMC in hazardous locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYF100-AL
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EYF100-AL
• Size: 1 IN
• Type: EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
• Brand: Appleton
• Finish: Powder Coated
• Material: Aluminum
• Sub Brand: UNILETS
• Trade Size: 1 Inch
• Product UPC: 78138159999
• 12-Digit UPC: 781381599993
• Applications: For Use With Threaded Rigid Metal Conduit and IMC
• TC Connection: Female Threaded
• Manufacturer: Appleton Electric
• Country of Origin: Mexico
• Made in USA: No
• Special Features: For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Close radius type for sealing vertical or horizontal con
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, d; Class II, Groups E, F, G; And Class III
• UPC: 781381599993
• GTIN: 00781381599993
• Item Type: EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
• Length: 7.5000 Inch
• Width: 4.6000 Inch
• Height: 0.7200 Inch
• Connection Type: Female, Female
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL
• Application: Sealing Vertical Conduit, Prevent Pressure Piling Within Conduit System, At the Boundary Where Conduit Leaves Classified Location
• Thread Type: NPT
• Series: EY
• Suitable For Use With: Threaded Rigid Metal and IMC Conduit
• Standard & Approvals: UL 886 (1203), File No. E10444, CSA C22.2 No. 30, File No. 065181, Class I, Groups A, B, C, D, Class II, Groups E, F, G and Class III
