Appleton EYF-150 1-1/2 Explosion Proof Sealing Unilet

Product Description

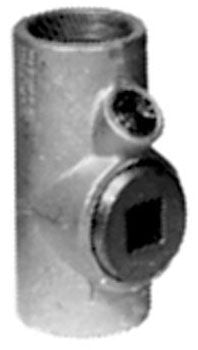

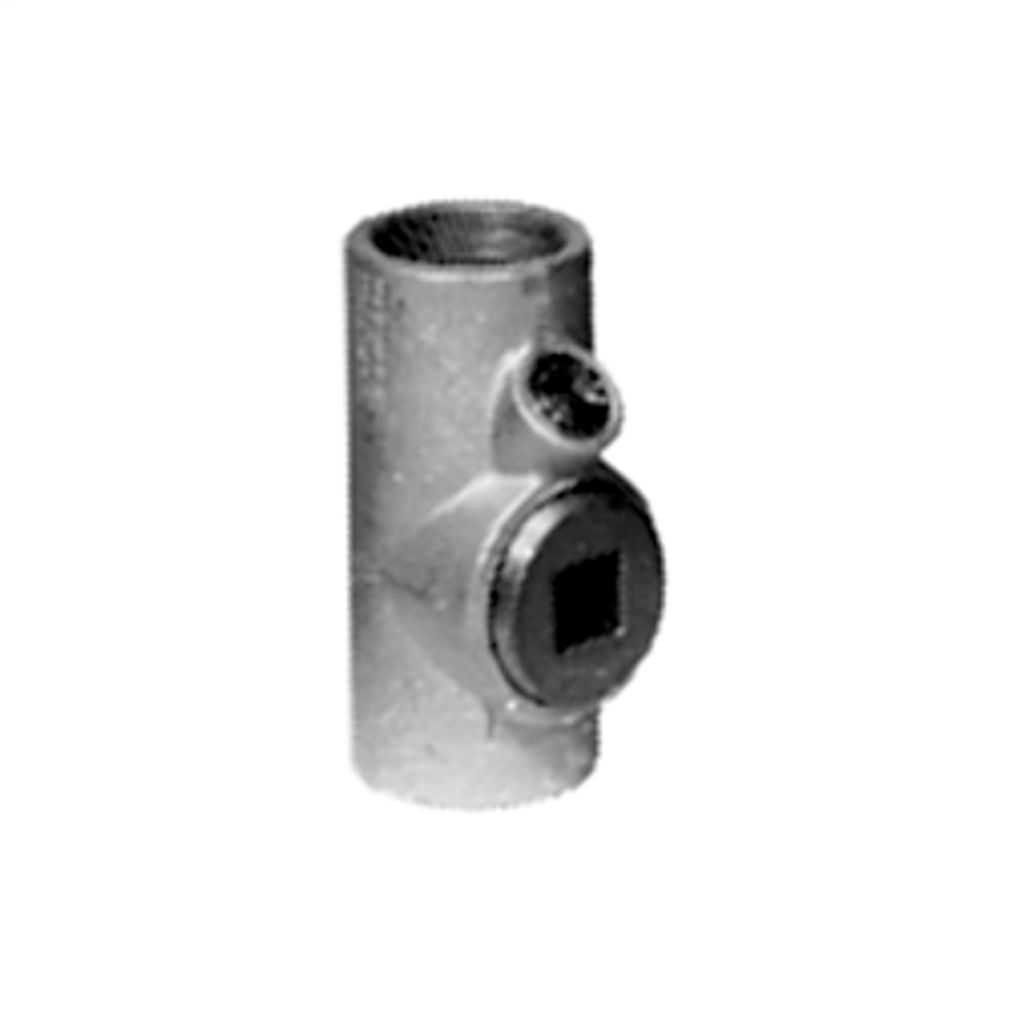

The Appleton EYF-150 is a one and one-half inch explosion proof sealing unilet designed for hazardous locations. This fitting is constructed from malleable iron and coated with zinc electroplate, providing durability and resistance to corrosion. The EYF-150 prevents the passage of gases, vapors, and flames within conduit systems, ensuring safety in environments where ignitable materials are present.

• Explosionproof, dust-ignitionproof, raintight design.
• Specifically constructed for Class I and II locations.
• Utilizes tapered threads for secure connections.

Product Highlights

This sealing fitting is ideal for both vertical and horizontal installations. It is required in locations at risk of explosion due to its ability to restrict explosive pressure and prevent pressure buildup within conduit systems.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer: Appleton Electric

Technical Specifications

• MPN: EYF-150
• Trade Size: 1-1/2 Inch
• Material: Malleable Iron
• Connection Type: Female/Female
• Approval: UL, CSA
• Mounting Position: Horizontal/Vertical
• Enclosure: Class I Group B C D, Class II Group E F G, Class III
• Turning Radius: 2.06 Inch
