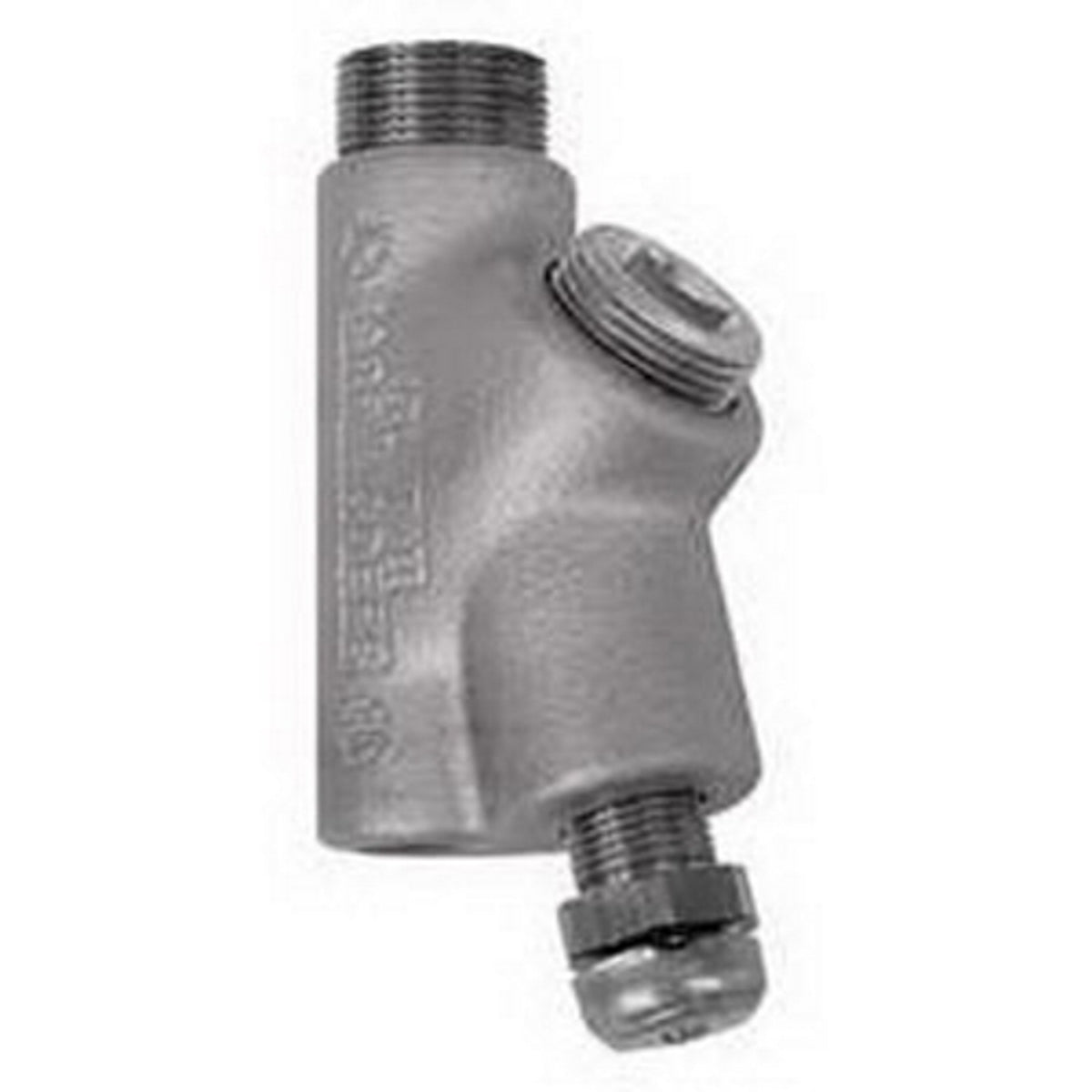

Appleton EYDM50 UNILETS Vertical Drain Seal Fitting 1/2 inch

Product Description

The APPLETON EYDM50 UNILETS series is a 25 PCT fill vertical conduit drain sealing fitting with a removable nipple. Constructed from malleable iron with a triple-coat finish, it is designed for use with threaded rigid metal conduit and IMC. It prevents the passage of gases, vapors, or flames within a conduit system.

• Explosion proof, dust-ignition proof and raintight.
• Smooth, rounded integral bushing.
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity.

Product Highlights

This fitting is UL listed and CSA certified, featuring tapered MNPT x tapered FNPT connections for secure installation in hazardous locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYDM50
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: EYDM50
• Manufacturer: Appleton Electric
• Brand: Appleton
• Sub Brand: UNILETS
• Country of Origin: Mexico
• Made in USA: No
• Application: For prevent passage of gases, vapors or flames from one portion of conduit system to another
• Connection: Tapered MNPT X Tapered FNPT
• Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
• Material: Malleable Iron
• Special Features: For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; And Class III
• RoHS Indicator: Contact Manufacturer
• UPC: 781381230049
• GTIN: 00781381230049
• Item Type: EYDM Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple
• Size: 1/2
• Mounting Position: Vertical
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
• Approval: UL, CSA C22.2
• Series: EYDM
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Type: Dust-Ignitionproof Explosionproof Raintight
