Appleton EYD36 1IN GY FEM/MALE FTG

Product Description

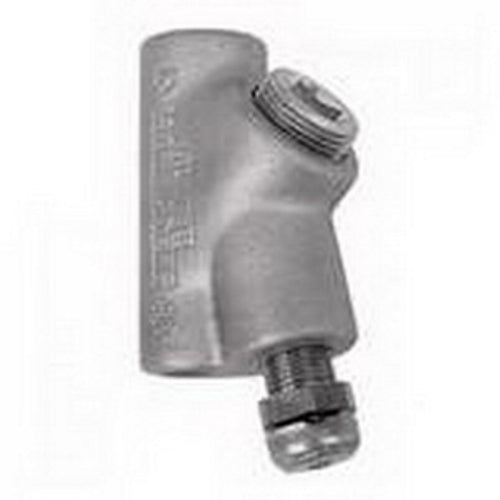

The Appleton EYD36 1 inch gray female/male fitting is designed for use with threaded rigid metal conduit and intermediate metal conduit. This fitting has a removable nipple and is part of the EYD series 25 percent fill vertical conduit drain sealing fittings. It is made of Grayloy-Iron and coated with triple protection to ensure durability.

• Size: 1 inch
• Material: Grayloy-Iron
• Connection Type: Tapered MNPT

Product Highlights

This fitting is designed to prevent the passage of gases, vapors, or flames. It is suitable for various applications where conduit sealing is essential.

Product Information

Standard Information

• Brand: Appleton
• MPN: EYD36

Technical Specifications

• Specifications: EYD Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple
• Color: Gray
• Finish: Zinc Electroplate, Chromate, Epoxy Powder Coat
• Weight: 2.51 lbs
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• Standard: UL 886 (1203); CSA C22.2 No. 30; UL File Number E10444
• Special Features: For preventing passage of gases; vapors or flames from one portion of conduit system to another
