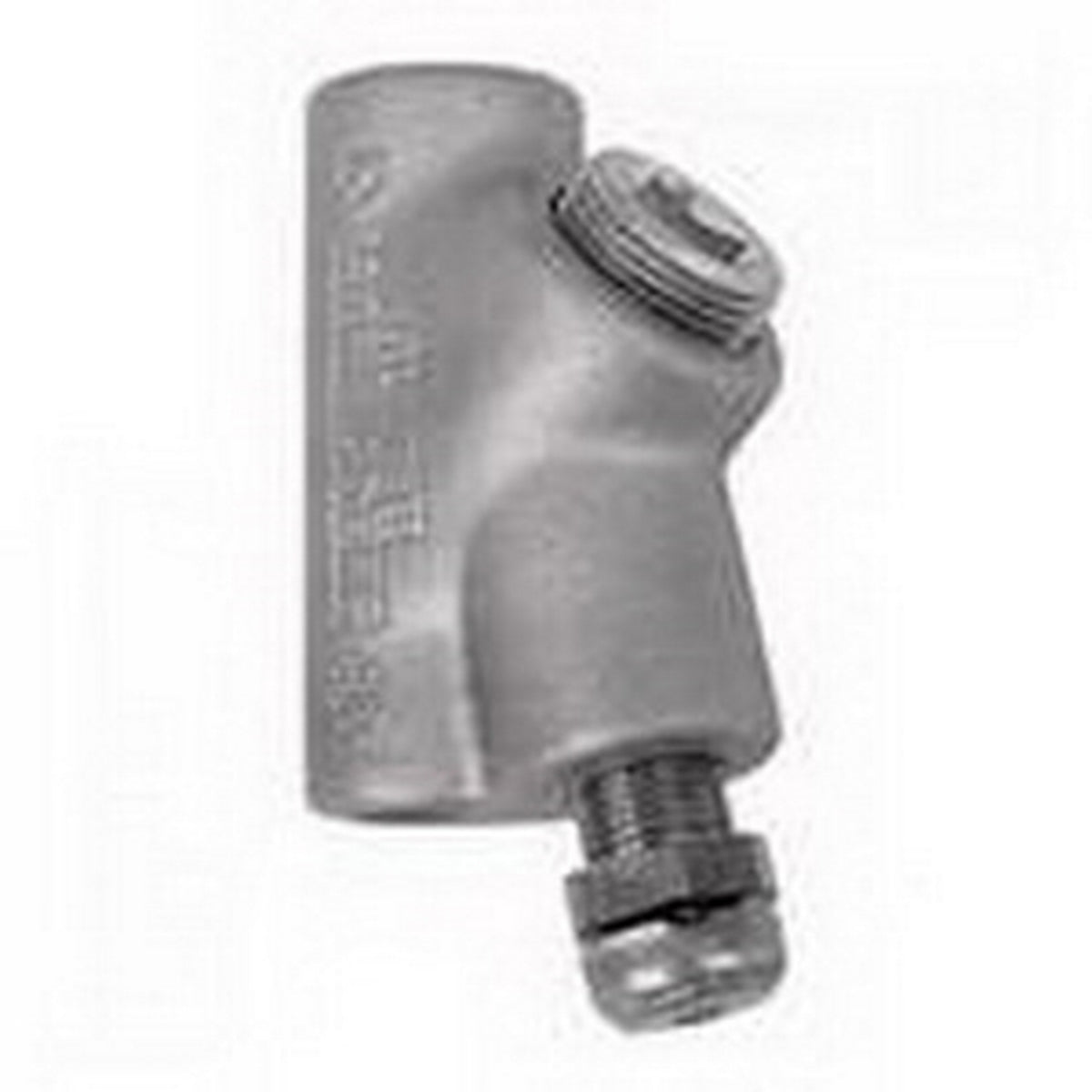

Appleton EYD26 Vertical Drain Seal Fitting 3/4 Inch MNPT x FNPT

Product Description

The Appleton EYD26 is a vertical drain seal fitting designed for use in conduit applications. This fitting allows for the secure sealing of conduits to prevent the passage of gases and vapors. It features a removable nipple for easy maintenance and installation. Ideal for threaded rigid metal conduit and intermediate metal conduit (IMC).

• Connection Type: Tapered MNPT x Tapered FNPT
• Material: Grayloy-Iron
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)

Product Highlights

Explosion-proof, dust-ignition-proof, and raintight fitting with UL and CSA certifications. Suitable for use in hazardous locations.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: EYD26

Technical Specifications

• Length: 7.5000 inches
• Width: 4.6000 inches
• Height: 0.7200 inches
• Weight: 1.560 pounds
• Application: For use with threaded rigid metal conduit and IMC
• Special Features: Required in Class I, Division 1 and 2 locations to prevent gas passage
• Country of Origin: Mexico
• UPC: 781381620888
