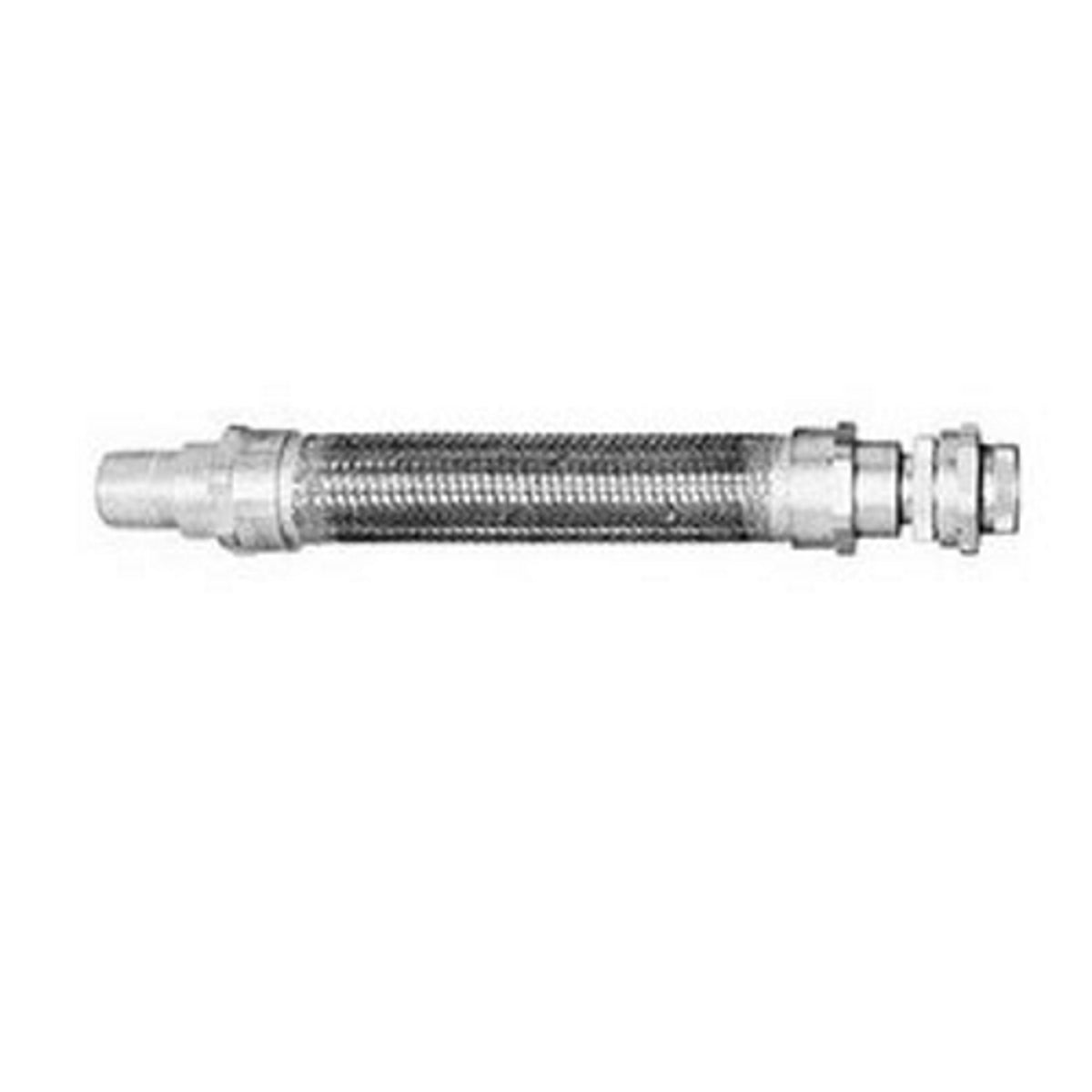

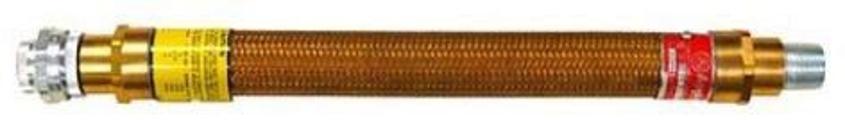

Appleton EXLK-18 Flexible Coupling 1/2 X 8 Inch Male x Union

Product Description

The Appleton EXLK-18 is a flexible coupling designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). This product features a trade size of one half inch and an eight inch length. It is constructed with an outer bronze braid and an inner brass core, providing durability and flexibility under various installation conditions.

• Trade size: 1/2 inch
• Outside diameter: 1.41 inches
• Bending radius: 10 inches

Product Highlights

Designed for robust installations in challenging environments, the Appleton EXLK-18 coupling offers a watertight and explosionproof connection.

Product Information

Standard Information

• Brand: Appleton
• MPN: EXLK-18

Technical Specifications

• Material: Outer bronze braid and inner brass core
• Flexibility: Rigid and IMC
• End Type: (1) Male Nipple, (1) Union
• Application: For use with threaded rigid metal conduit and IMC
• Approval: UL 886, CSA C22.2
• Country of Origin: Mexico
• Special Features: Explosionproof, watertight, heavy duty design; interior insulating liner protects conductors from abrasion
• Enclosure: Class I Groups A, B, C, D; Class II Groups E, F, G; Class III
