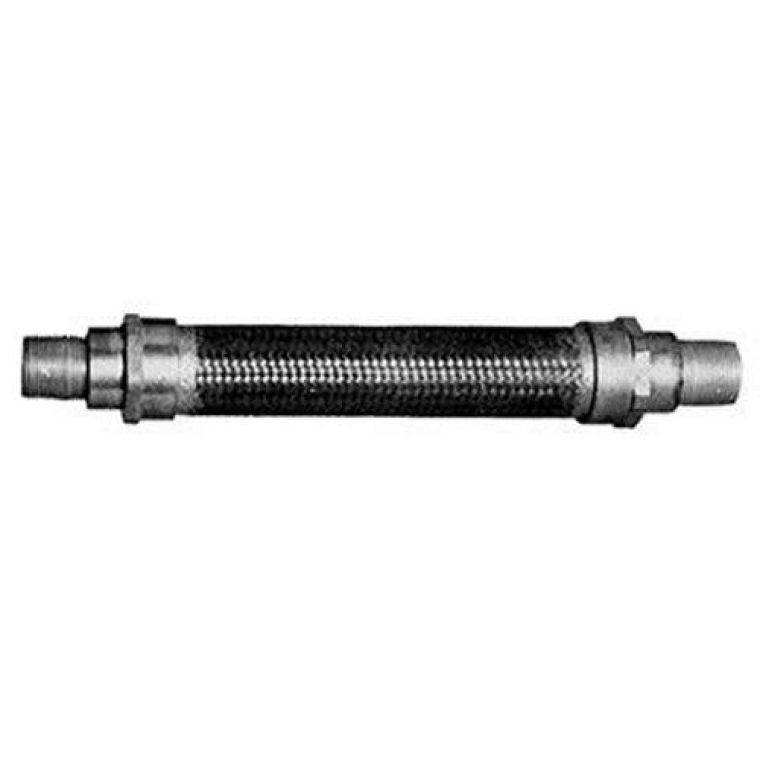

Appleton EXGJH-412 Flexible Coupling 1-1/4 Inch

Product Description

The APPLETON EXGJH-412 flexible coupling is designed for use in areas where vibration and/or movement is a problem. It can be used in place of rigid conduit in difficult-bend situations. It is explosionproof, dust-ignitionproof and watertight. Suitable for wet locations and have female end fittings with removable male nipples.

• Explosionproof, dust-ignitionproof, watertight
• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity

Product Highlights

The EXGJH flexible coupling is ideal for use with threaded rigid metal conduit and IMC in areas where movement is a problem.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EXGJH-412
• Country of Origin: MX

Technical Specifications

• Type: Dust-Ignitionproof Explosionproof Flexible Watertight
• Brand: Appleton
• Finish: Natural
• Length: 12 in
• Radius: 16 IN Bending
• Material: Brass,Bronze,Stainless Steel
• Sub Brand: UNILETS
• Trade Size: 1-1/4 Inch
• Applications: For Use With Threaded Rigid Metal Conduit And IMC
• TC Connection: Female Threaded
• Outside Diameter: 2.63 in
• Part Number #: EXGJH412
• Series: EXGJH
• Size: 1-1/4 in
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Country of origin: MX
• Manufacturer Name: Emerson Electric
• UNSPSC: 39131707
• Manufacturer Part Number: EXGJH-412
• Manufacturer: Appleton
• Product Series: EXGJH
• Family Series: Appleton Couplers, EXGJH Series
• Description: UNILETS Flexible Coupling, Trade Size: 1-1/4 IN, Outside Diameter: 2.63 IN, Flex Length: 12 IN, Radius: 16 IN Bending, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type: 2 Male Nipples
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Flex Length: 12 "
• Ground Pass Through: Yes
• Protection Rating: Liquid Tight
• Composition: Bronze
• Insulated Throat: Yes
• Hazardous Location: Yes
• Approvals: CSA, UL
• Brand Name: Appleton
• Brand Part Number: EXGJH-412
• Fitting Subtype: Flexible
• Fitting Type: Coupling
• Hazard Rating: Dust-Ignitionproof / Explosionproof
• Hazard Rating Specs: Class I, Division 1, Groups A, B, C, D, Class III, Class II, Division 1, Groups E, F, G, UL 1203, UL 886
• Specifications Met: UL 1203, Class III, UL 886, UL File No. E10444, Class II, Groups E, F, G, CSA 065181, Class I, Groups D, CSA C22.2 No. 25/30
• Diameter: 1 1/4 in
