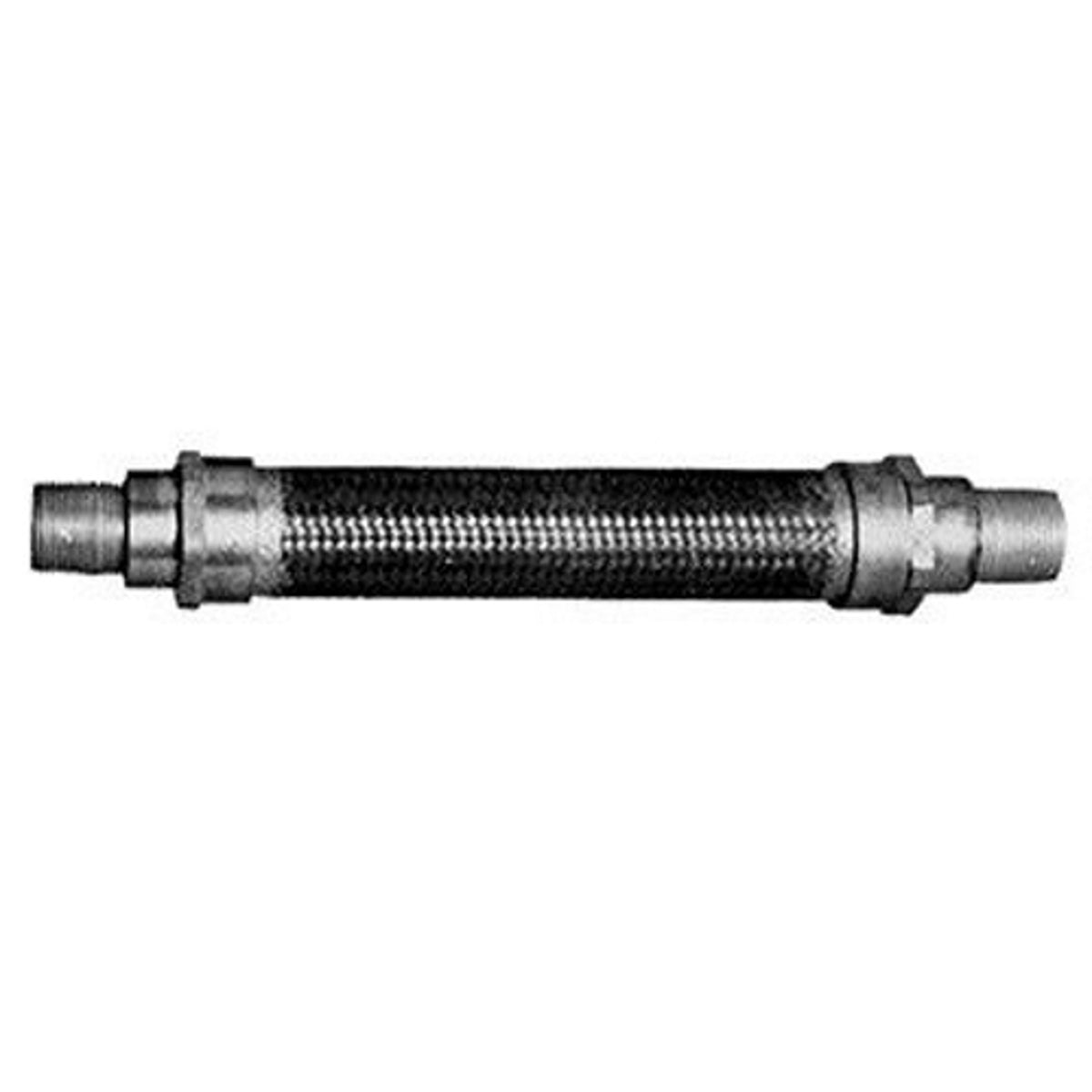

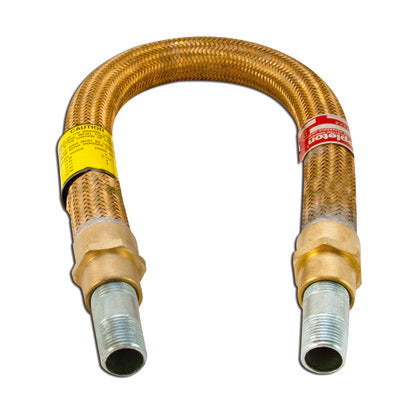

Appleton EXGJH-224 Unilets Explosion-Proof Flexible Conduit Coupling, 3/4 inch Diameter, 24 inch Flex Length

Brand: APPLETON
SKU: EXGJH-224
Availability: In Stock

Ships same day if ordered by 12 pm
$693.57
$693.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The APPLETON EXGJH-224 UNILETS flexible coupling is designed for use with threaded rigid metal conduit and IMC. It features an outer bronze braid and inner brass core with insulating liner. This coupling is explosionproof, dust-ignitionproof, and watertight. It is suitable for use in areas where vibration and movement are a problem.

  • Explosionproof, dust-ignitionproof, and watertight
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and ground continuity

Product Highlights

The APPLETON EXGJH-224 flexible conduit coupling ensures electrical conductivity equal to rigid conduit and protects conductors from abrasion under vibrating conditions.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: EXGJH-224
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
EXGJH-224
Manufacturer
Appleton Electric
Brand
Appleton
Sub Brand
UNILETS
Country of Origin
Mexico
Made in USA
No
Application
For Use With Threaded Rigid Metal Conduit and IMC
Connection
Female Threaded
Flexibility
Rigid And IMC
Material
Outer Bronze Braid And Inner Brass Core With Insulating Liner
Special Features
Explosionproof, dust-ignitionproof, watertight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Heavy duty design resists mechanical abuse; Electrical conductivity equal to rigid conduit on a similar length basis no bonding jumper required; Interior insulating liner protects conductors from abrasion under vibrating conditions; Female end fitting with removable ductile iron union at one end and a female end fitting with a removable brass male nipple at the other end; Used in areas where vibration and movement is a problem, also used in place of rigid conduit in difficult-bend situations
Standard
UL 886 (1203), UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181 Certified, Class I, Division 1 And 2 And Class II, Division 1 And 2, Suitable For Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III
UPC
781381317900
GTIN
00781381317900
Item Type
Flexible Coupling
Length
28-1/2
Length UOM
Inch
Outside Diameter
1-3/4 IN
Trade Size
3/4 IN
Diameter
3/4 in
Radius
12 IN Bending in
UNSPSC
39131707
Approval
UL 886/E34997, CSA C22.2
End Type
(2) Male Nipple
Enclosure
Class I Group A B C D, Class II Group E F G, Class III
Fitting Material
Brass (End Fitting), Zinc Plated Steel (Nipple)
Part Number
EXGJH224
Pack Size
1.0000
UOM
E
Finish
Natural
Suitable For Use With
IMC/Threaded Rigid Metallic Conduit
Size
3/4 in
